Best selling Chinese sliding automatic door DSL-125A/125B
- 1000 Set / Sets per Month
- Shanghai
- T/T PayPal Other Cash
- 2 days
- Two-wing automatic revolving door, Tempered glass hotel revolving door
- Swing automatic door opener with Push / Pull Arms
- CE SGS European design New Automatic Swing Door opener
- Simple Control Easy Mounting Automatic Swing Door System Operator applied for Commercial and Residential Entrance
- Automatic door switch for special room CNB-238
- Hot sale Automatic door switch for special room
Product Details
Brand Name: | YOMO | Place of Origin: | China | Model Number: | DSL-125A/125B |
Position: | Commercial | Surface Finishing: | Finished | Type: | Sliding Doors |
Door Material: | Aluminum Alloy | Open Style: | Sliding | Sliding Door Type: | Partition Doors |
Product Description

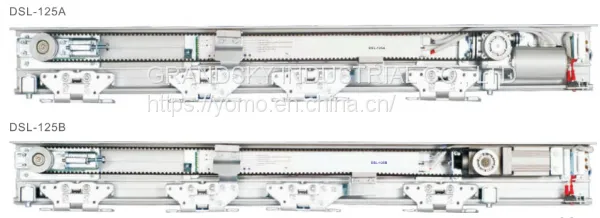

DSL-125A
DSL-125B
FUNCTION INTRODUCTIONM |
The control device of sliding automatic door contains basic function and extensional function, automatic operation/hold-open/lock/half- open to meet customer needs. Control device has multiple interfaces for choosing various connectors such as: safety beam photocell, electric locks, etc. Its drive devices adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output , it can adapt to a large door. |
TECHNICAL DATA |
Door configuration: Single leaf, Double leaves Limited Weight: ≤1×150kg, ≤2×120kg Door leaf width: 700-1300mm, 600-1200mm Power voltage: AC 110V-220V±10%, 50/60Hz Power consumption: <70W Opening speed: 200-450mm/S(adjustable) Closing speed: 200-450mm/S(adjustable) Hold-open time: 0-9S(adjustable) Manual force: <40N, <50N Sensor mode: Various Sliding noise: ≤55Db Environment temperature: -20 ~ +50℃ |
FUNCTION INTRODUCTION |
Reliability Wisdom Control unit WisdomControllerreceivethesignalfromdoorsensors(switches) , givedriven signaltothemotor, the door is working. It is designed to face the whole world, it is no need use transformer for changing supply power. There is safety interface for connecting safety sensor and e-lock for night locking. Powerfuldrivemotor ThepowerfulmotorissmallandDCpowerpush-less,connectionwithquietgearboxtodrivethebeltwheel, thereisself-protectionpartsinsidewhichensurethemotorcanworkforlongtime. Convenience Good modular design offers very easy installation. Only need tofit all components into the guide rail and connect each part well,it can work after activating the power supply. Security When the doors is closing, if it meets a pedestrian or obstacle,the door leaf will reverse automatically, the door will openimmediately, it prevents pinching events and door damaged,also improves the automatic door working life. If the electricity is failed, the door will stop moving. However,there is very little resistance, door leaf can easily be opened byhand. |
