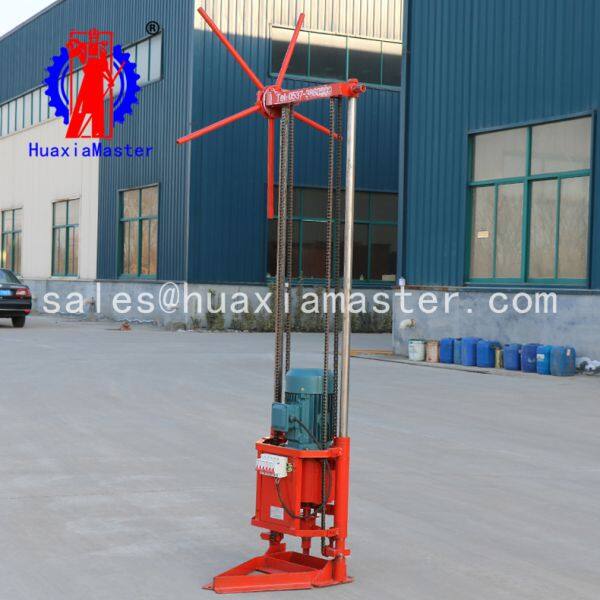

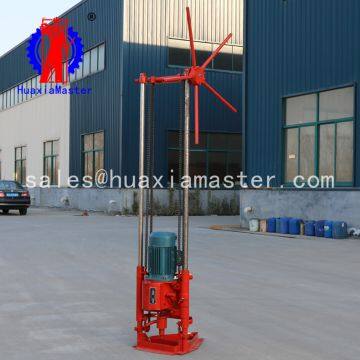

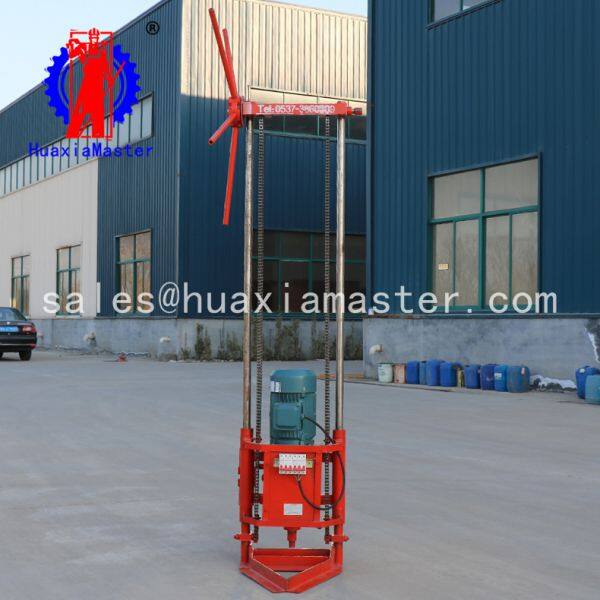

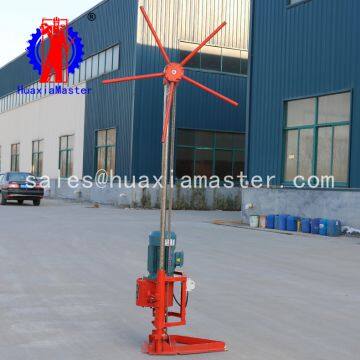

1. Brief introductions of QZ-2D three phase electric sampling drilling rig
QZ-2D three phase electric sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2D three phase electric sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2D three phase electric sampling drilling rig
QZ-2D three phase electric sampling drilling rig | ||
End hole diameter (mm) |
32-110 |
|
|
Drilling depth（m） |
soil Layer φ110：10m soil Layer φ91：10-15m lithosphereφ91：5-10m lithosphere φ75：10-15m lithosphereφ60：15-20m lithosphereφ46：20-30m |
|
Drilling pipe diameter(mm) |
30 |
|
|
Three phase electric engine |
power |
4kw |
model |
YX3-112M-4 |
|
Dimension（l*w*h） |
600*650*2330 |
|
Weight（kg） |
110 |
|

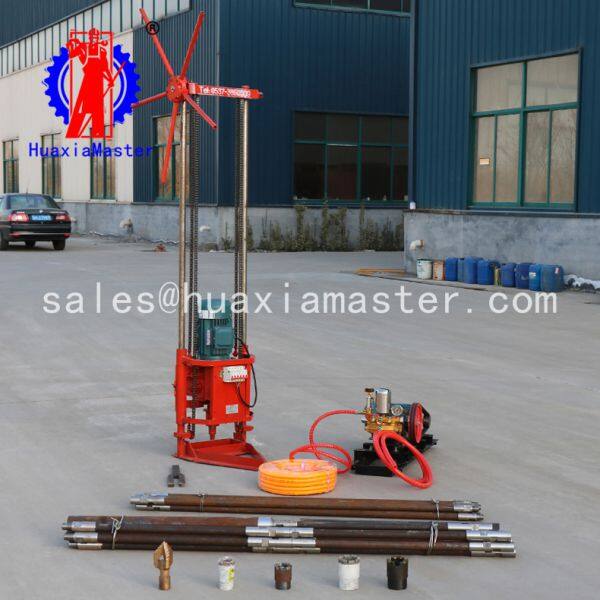

3. Configuration List of QZ-2D three phase electric sampling drilling rig
Item |
Parameter |
Unit |
Quantity |
Three phase electric sampling drilling rig |
QZ-2D |
set |
1 |

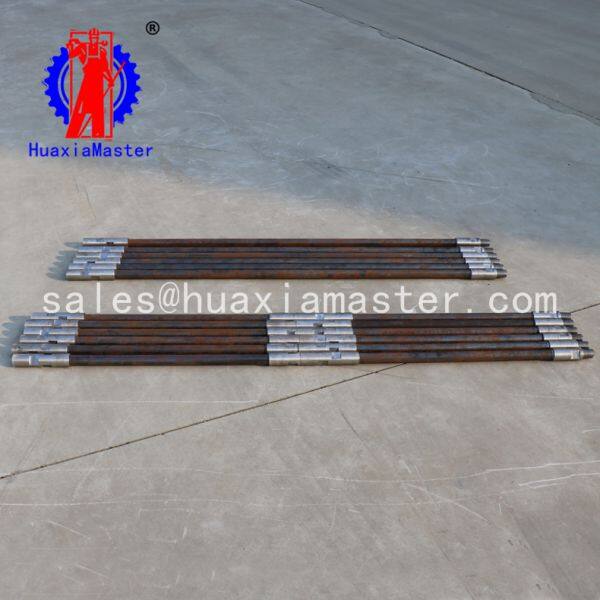

Drilling pipe |
30*1500 |
pc |
6 |
Drilling pipe |
30*800 |
pc |
13 |
Pipe joint |
38 |
pc |
19 |
Reducing nipple |
58/38 |
pc |
1 |
Core barrel |
58*800 |
pc |
1 |
Core barrel |
58*1500 |
pc |
1 |
Alloy bit |
60 |
pc |
1 |
Diamond bit |
60 |
pc |
1 |
Reducing nipple |
73/38 |
pc |
1 |
Core barrel |
73*800 |
pc |
1 |
Alloy bit |
75 |
pc |
1 |
Diamond bit |
75 |
pc |
1 |
Three-wing bit |
75 |
pc |
1 |
Safety clamp |
pc |
1 |
|
Water seal |
Y 30*50*10 |
pc |
4 |
Oil seal |
30*50*10 |
pc |
1 |
Pipe wrench |
18 |
pc |
2 |
Monkey wrench |
pc |
1 |
|
Shaft snap ring clamp |
pc |
1 |
|
Hole snap ring clamp |
pc |
1 |
|
Pliers |
pc |
1 |
|
Cross screwdriver |
pc |
1 |
|
Hex wrench |
pc |
1 |
|
Control wheel |
pc |
1 |

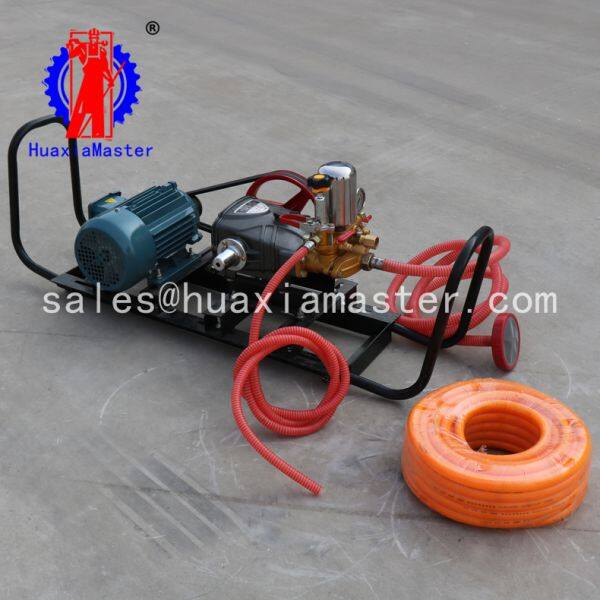

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify
