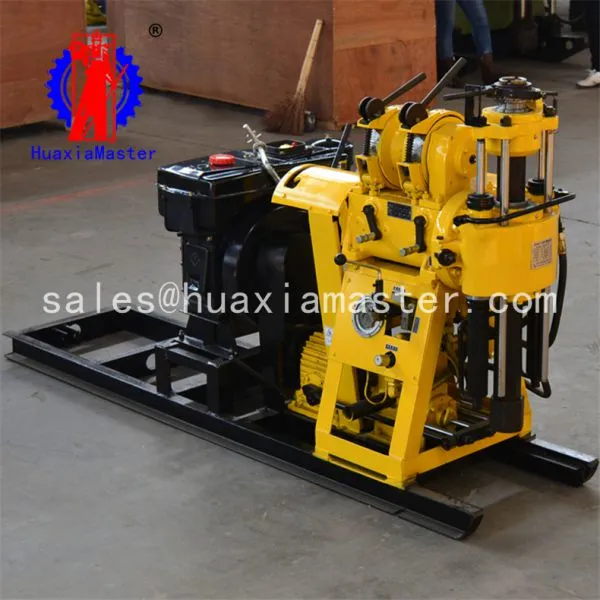

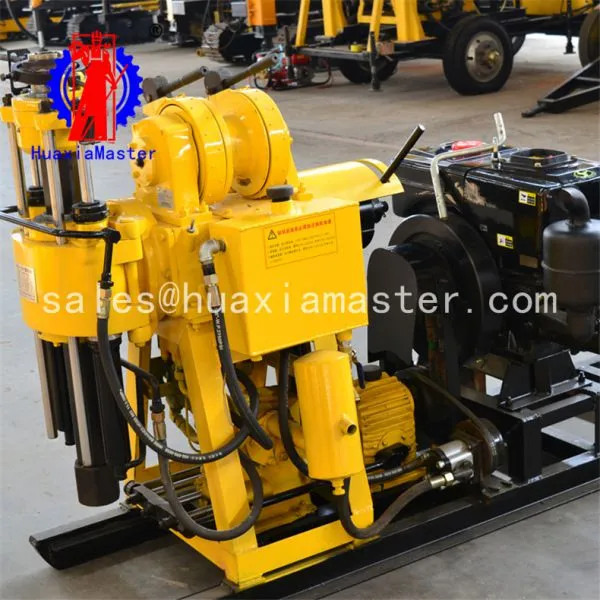

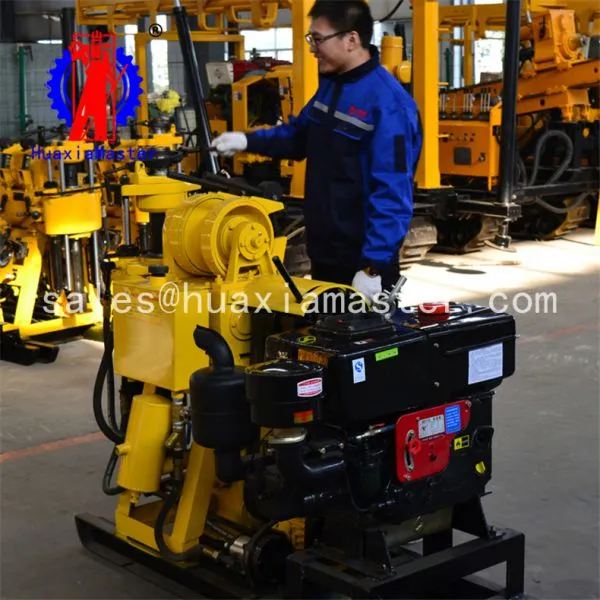

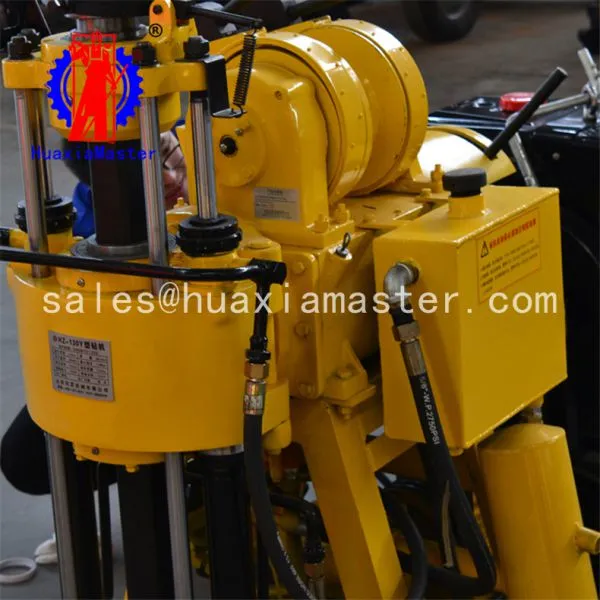

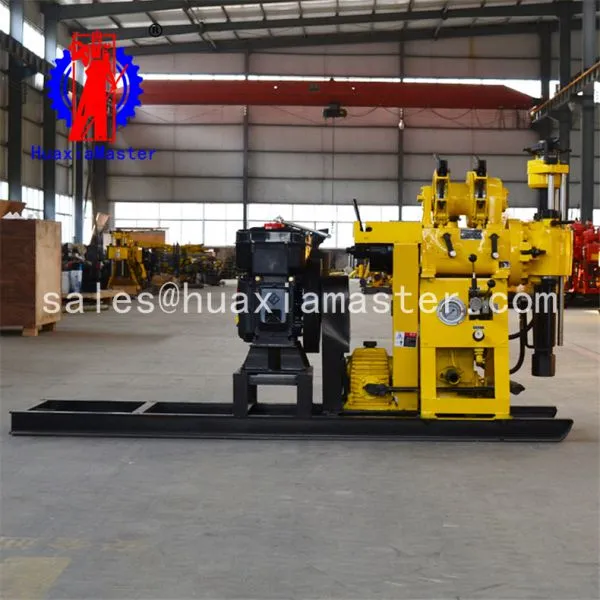

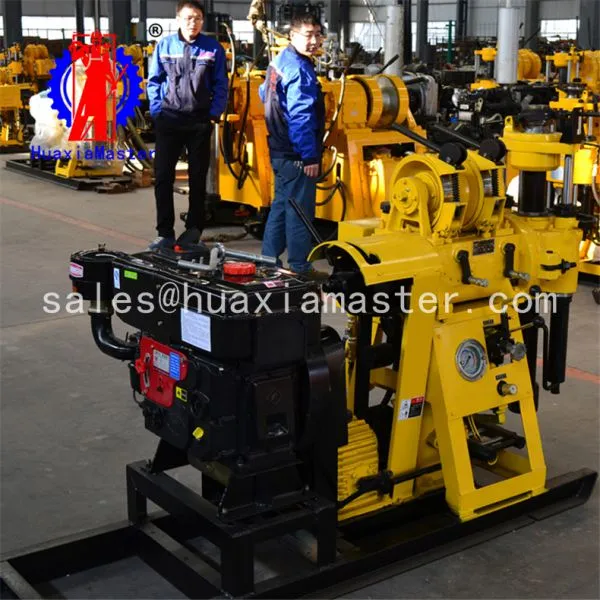

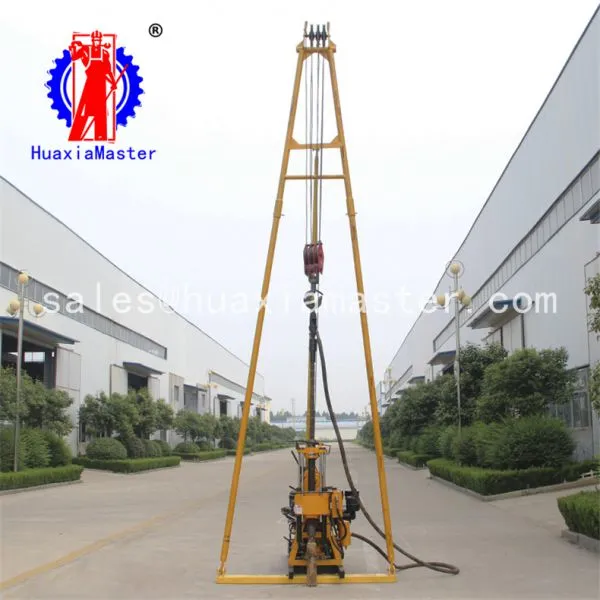

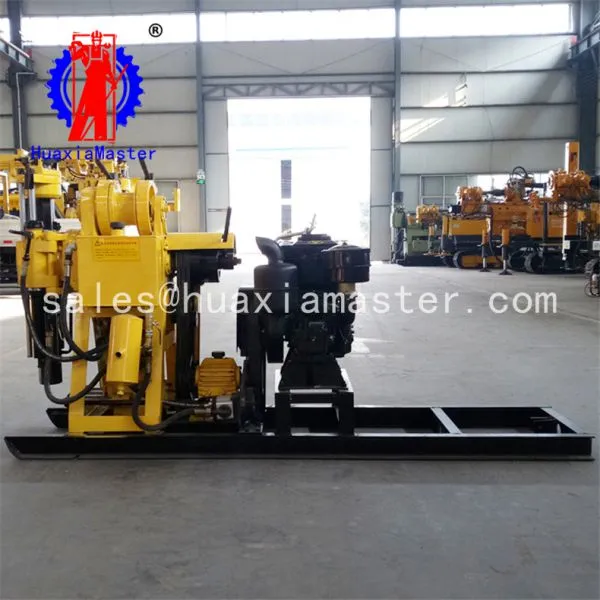

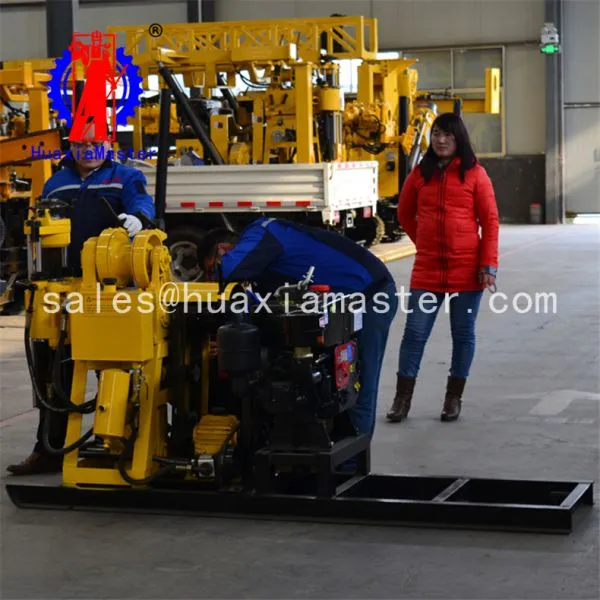

Help CenterHZ-130Y Fully Hydraulic Drill 130 Meters Drilling Machine Drill Rock and Soil and Sand
Related Products
-
YQZ-50B Portable Hydraulic Ground Hole Hand Drill Machine Price for SaleUS$ 1500 - 1600MOQ: 1 Set -
Low Price China Manufactures Small Core Borehole Deep Water Well Mining Drilling Rig Machine for SaleUS$ 1500 - 1600MOQ: 1 Set
-
BXZ-1 Single Pack Light Coring Drill Can be Used for Exploration, Small Size and Light WeightUS$ 1500 - 1600MOQ: 1 Set
-
KY-150 Metal Mine Exploration Drill Rig 360° no Dead Angle Full Hydraulic Tunnel Drilling RigUS$ 13350 - 14350MOQ: 1 Set
-
KY-200 Hydraulic Exploration Drilling Rig for Metal Mine 360° no Dead Angle Full Hydraulic Tunnel Drilling RigUS$ 16350 - 17700MOQ: 1 Set
1. Applications of HZ-130Y hydraulic core drilling rig
· geological survey and exploration
· basic exploration for roads
· high-rise buildings
· inspection holes for various concrete structures
· river embankments
· grouting holes
· direct grouting,
· civil water well
· ground temperature central air conditioners.
2. Features of HZ-130Y hydraulic core drilling rig
· Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
· Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
· This machine adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
· Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
3. Technical parameters of HZ-130Y hydraulic core drilling rig
HZ-130Y hydraulic core drilling rig | |
Drilling depth |
130m |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90-75° |
Drill weight (Not include power) |
750kg |
Spindle | |
Spindle speed |
142 285 570r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Tightrope caliber |
27m |
Mud pump | |
Type |
Horizontal single urn twin-action |
Electric motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
href="" Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
