Help CenterAnti Igniting Test Machine for Mattress and Sofa
Related Products
-
Big Combustion Chamber, DIN 54837 (FTech-DIN54837)NegotiableMOQ: 1 Set -
Glow Wire Test Machine, IEC60695-2-10NegotiableMOQ: 1 Set
-
Fire Propagation Test Machine, BS 476 (FTech-BS476-6)NegotiableMOQ: 1 Set
-
Limited Oxygen Index Testing Machine -Intelligent, ISO4589NegotiableMOQ: 1 Set
-
En 367, ISO 9151 Heat Transmission Meter for Protective ClothingNegotiableMOQ: 1 Set

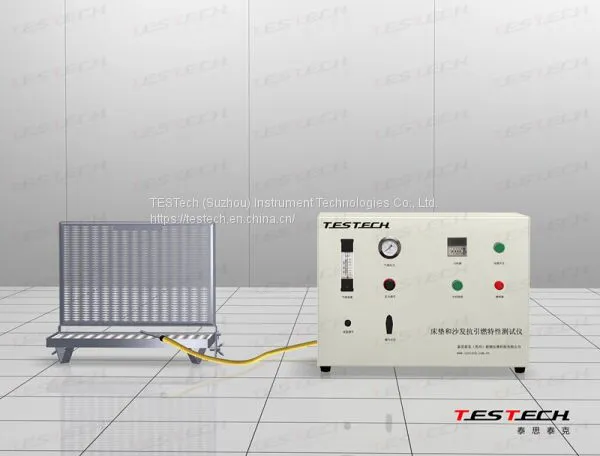

Introduction:
This apparatus is designed according to ISO8191-1~2,EN 1021.The is an analog
cigarettes and matches as flame ignition source for resistance to ignition of
upholstered furniture conduct test methods and evaluationThis section applies to
public places with mattresses, sofas and other upholstered furniture resistance to
ignition test and evaluation, furniture Soft package resistance to ignition.
Model:FTech- ISO8191
Standards
ISO8191-1~2
EN 1021
EN597-1,-2
Features
1,The test rig is made of stainless steel plate which is corrosion resistant.
2,Independent gas control cabinet.
3,Test rig dimension:Back frame 450mm X 300mm.Base frame 450mm X150mm.
4,Equipped with metal needles for puncturing cigarettes.
5,The wire mesh of diagonal length is 28mm.
Butane Flame Control System
1,Independent gas control cabinet.Size 570*400*420mm.
2,Imported gas flow meter accurately displays gas flow rate of 0-500 ml/min.
3,With functions of 1 hour reminder.
4,Imported needle valve accurately control gas flow rate.
5,Stainless steel burner, external diameter 8mm ± 0.1mm, inner diameter 6.5mm ±
0.1mm, length 200 ± 5mm.
6,The burner angle can be adjusted horizontally and vertically.
7,Imported gas pressure regulating valve.
8,Precision gas gressure gauge.
9,The accuracy of the timer is 1 s.
10,The environmental temperature of the test is 10ºC~30ºC and the relative
humidity is 15.0%~80%.
Remarks:Customer have to prepare butane.
Send Inquiry to This Supplier
