Introduction

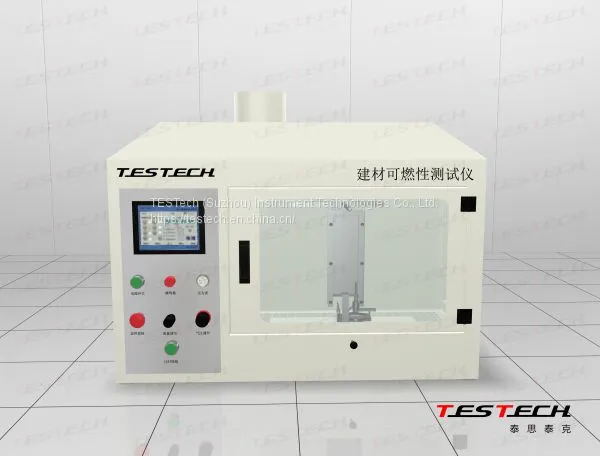

This instrument is designed according to ISO11925-2, it is used to test building material under conditions in the absence of external radiation to direct impact of vertically placed samples with a small flame to determine the flammability of building products.
Model:FTech-ISO11925-2
StandardsEN ISO 11925-2;
DIN 53438;
DIN4102-1;
Structure
1, Box paint treatment, beautiful;
2, The combustion chamber dimensions: length 700mm X width 400mm X high 600
3, Tthe flame height can be adjusted, automatic ignition;
4, The flame burning application time and hold time can range from 0 to 99 minutes 99 seconds regulation;
5, Combustion angle: 0 ° (vertical), 45 °
6, The burner can be moved in a horizontal direction;
7, Glass doors for easy observation test;
8, All fixtures are made of stainless steel; beautiful and corrosion;
9, Equipped with two types of stainless steel sample holder. With flame height measuring;
10, High degree of test automation, test data accurate, easy to operate.
Control System:
• Programmable Logic Controller (PLC) Control:
• Automatic timing, automatic detection of the flame, automatic ignition, ignition abnormal protection;
• LCD touch screen display;
• real-time monitoring of experimental data, queries six samples of experimental data, query alarm content.
