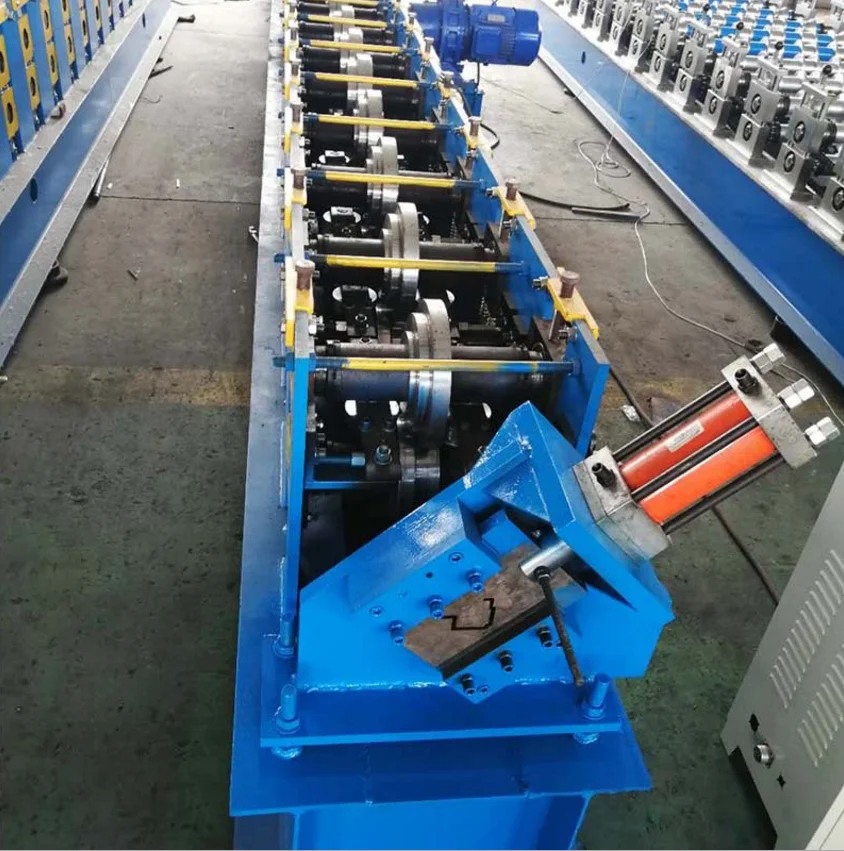

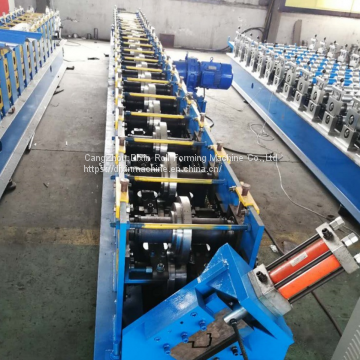

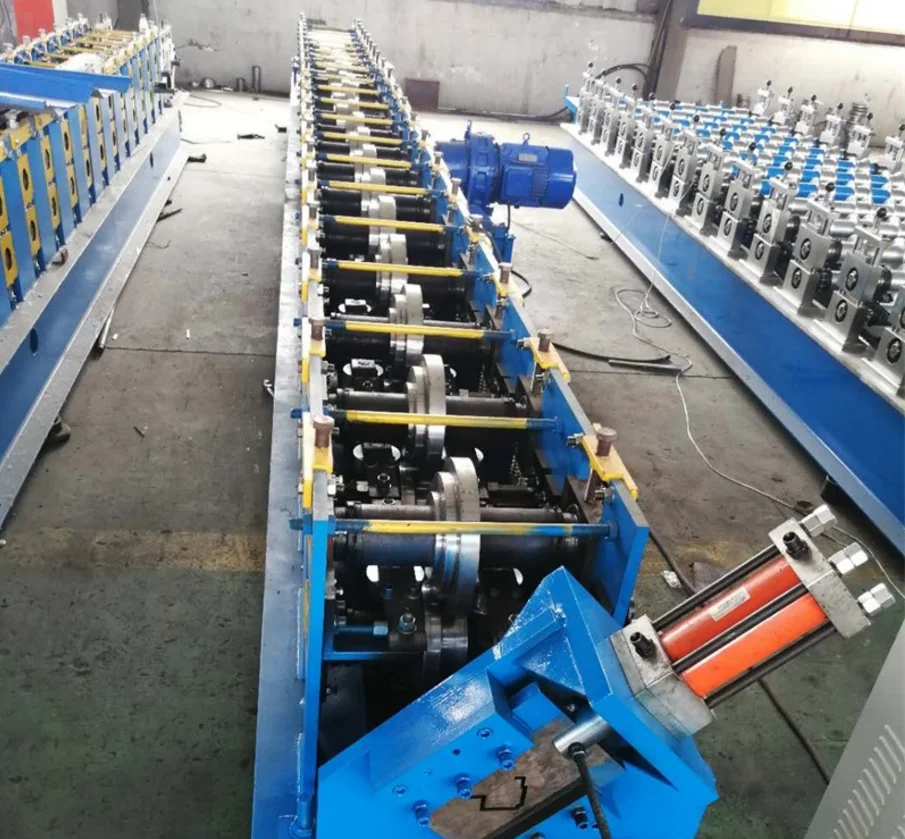

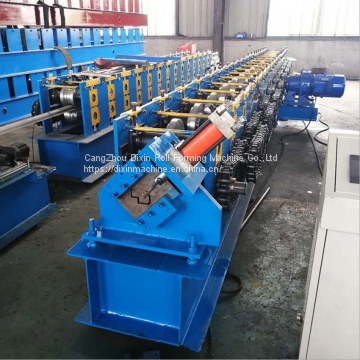

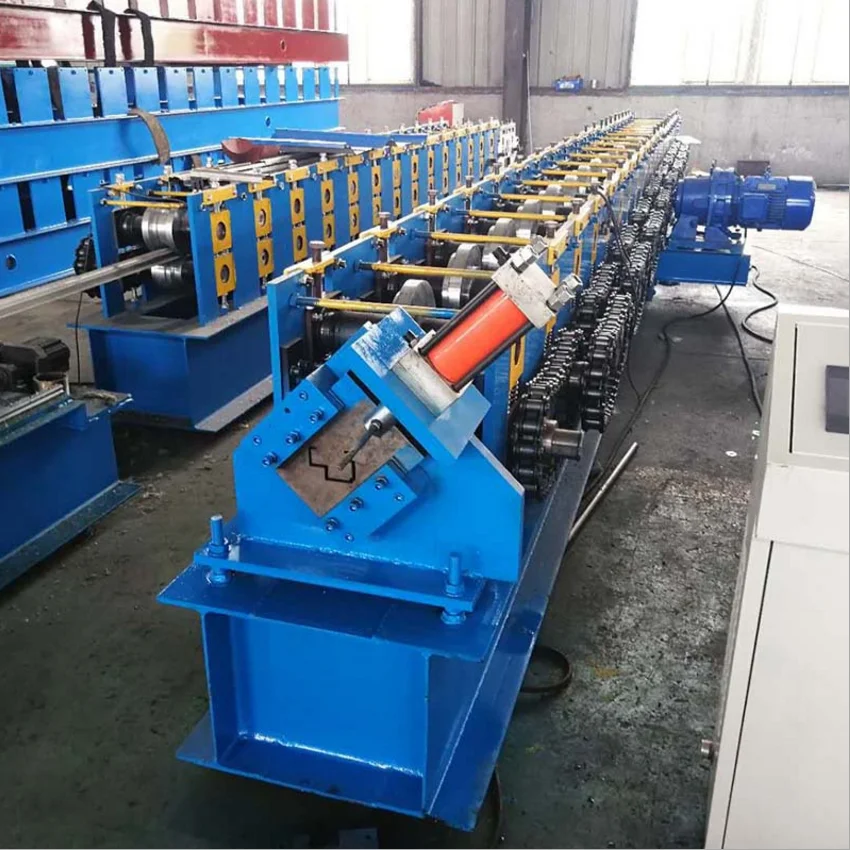

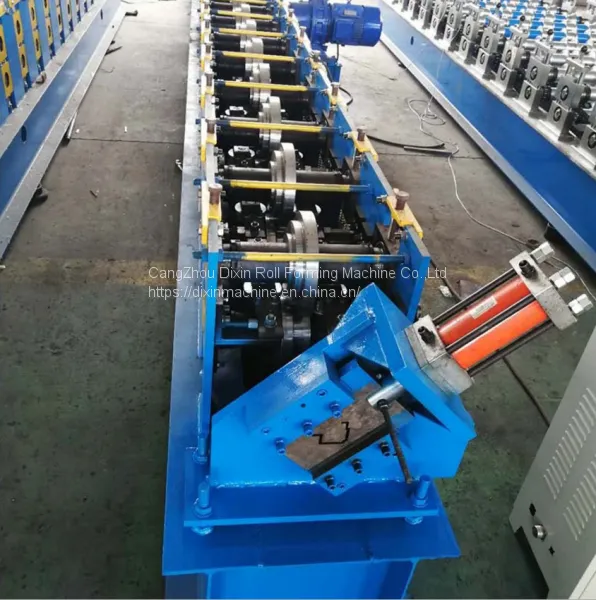

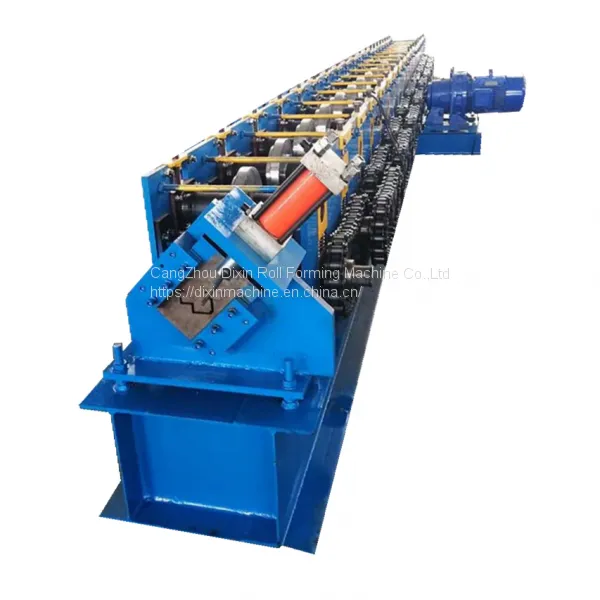

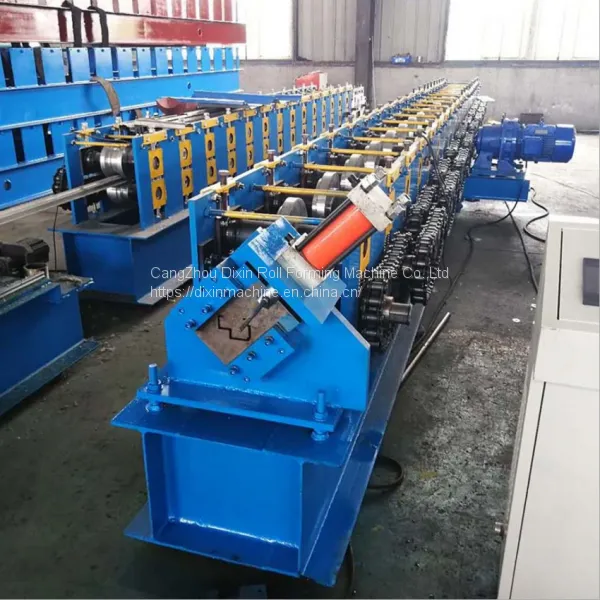

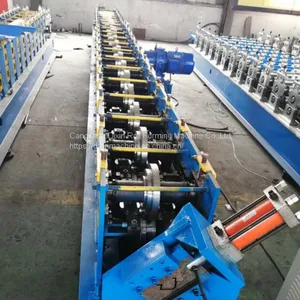

Color Steel Rain Gutter Water Gutter Roll Forming with good price
Maximum production speed: not less than 12 metres per minute (excluding cutting);
Material: 0.3-0.8mm, GI or clor steel
|
Name of Roll Forming Machine |
|
|
1 |
Suitable raw material |
PPGI/PPGL/GI/GL Steel Coils |
2 |
Thickness of coil sheet |
0.3-0.6mm |
3 |
Feeding Coil width |
430mm |
4 |
Effective width |
203.2mm |
5 |
Under frame |
400H-beam |
6 |
Diameter of Soild shaft |
70mm, high grade 45# steel,with keyway |
7 |
Roller |
45# steel hard chrome coated 0.05-0.07mm |
8 |
Thickness of middle plate |
18mm |
9 |
Forming stations |
16 |
10 |
Drive type |
By chain(1.0 inch) link bearing model 6210 |
11 |
Power of main motor |
3kw with Cycloidal reducer, Lichao, Shanghai |
12 |
Power of pump station |
3kw, Lichao, Shanghai |
13 |
Forming speed |
About 15-20m/min |
14 |

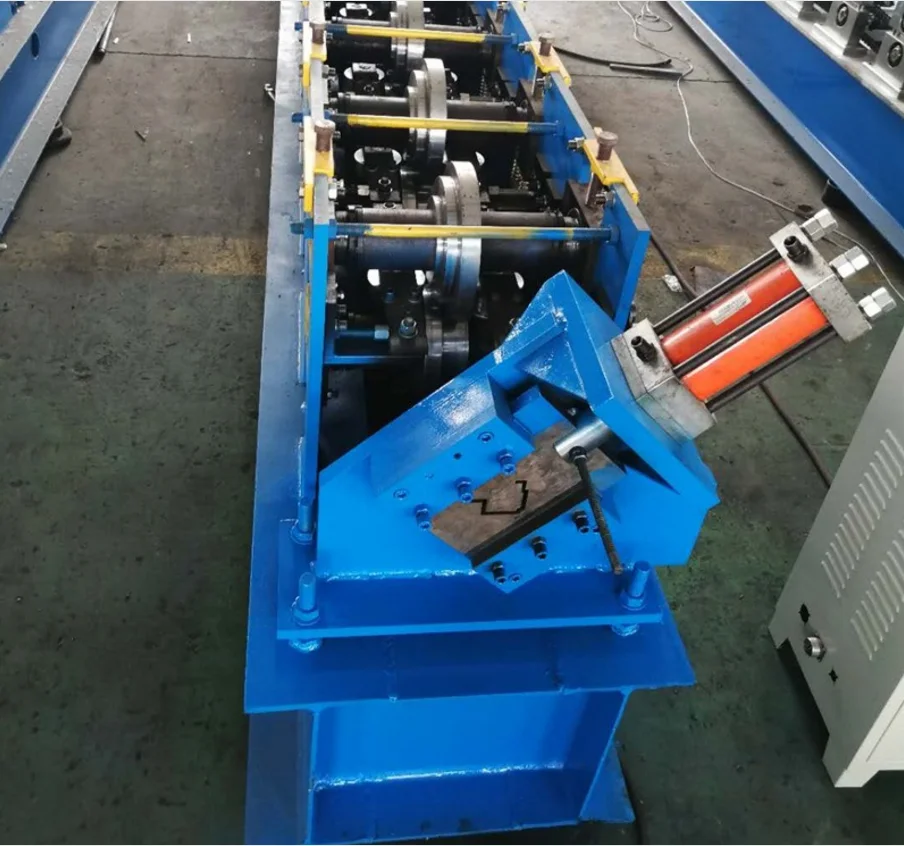

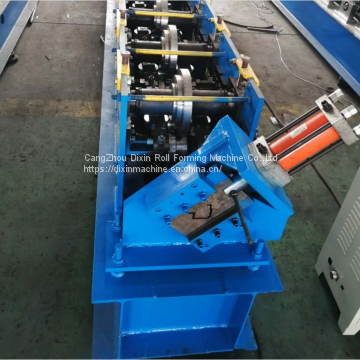

Hydraulic cutting |
Controlled by PLC |
15 |
PLC |
DELTA, TAIWAN / Mitsubishi, Japan |
16 |
Material of cutting blade |
Cr12Mov, quenching 58-62℃ |
1.We can produce the specialmachine,send your drawing to us,we can desgin for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100
4. Engineer available to service machinery overseas.
5. If you come to visit our factory ,we can book the room for you,car pick up to send.
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
