840mm Steel Panel Machine Metal Roofing Cold Roll Forming Machine

840mm steel panel machine metal roofing cold roll forming machine

Customer requirements:

Our roll forming machine is customized, we can design and produce the roll forming machine as your profile drawing. you can select the one you want and then let me know, we will produce the machine as the roll forming machine profile drawing you selected.

1.Panel drawing

3.Technical parameter

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness: 0.3-0.8mm

(3) Effective width: as drawing

(4) Feeding width: as drawing

(5) Main motor power: 4kw

(6) Pump power: 4kw

(7) Shaft diameter: 75mm

(8) Forming steps: 16 steps

(9) Roller material: 45# forged steel, with hard chrome plating

(10) Main frame: 300H steel

(11) Medium plate thickness: 16 mm

(12) Control systerm: Delta PLC control system with touch screen

(13) Cutting blade material:Cr12

(14) Speed:about:10-12 meter/min

(15) Drived by Chain:1 inch

(16) Machine size (mm):6500*1400*1400mm

(17) Machine weight: about 2.5 ton

(18)voltage:380V,50hz,3phase according to your request

4.Payment term
 TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5.Warranty
12 months, and lifelong technical support service
6.Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
Standard export package, water-proof package, covered with plastic film.

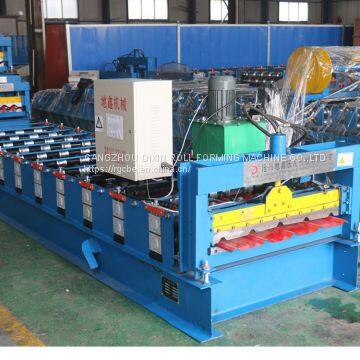

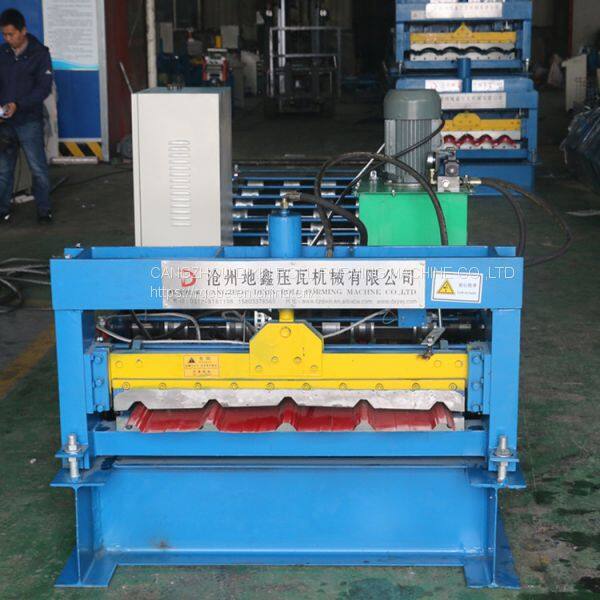

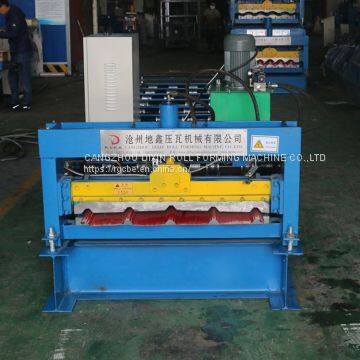

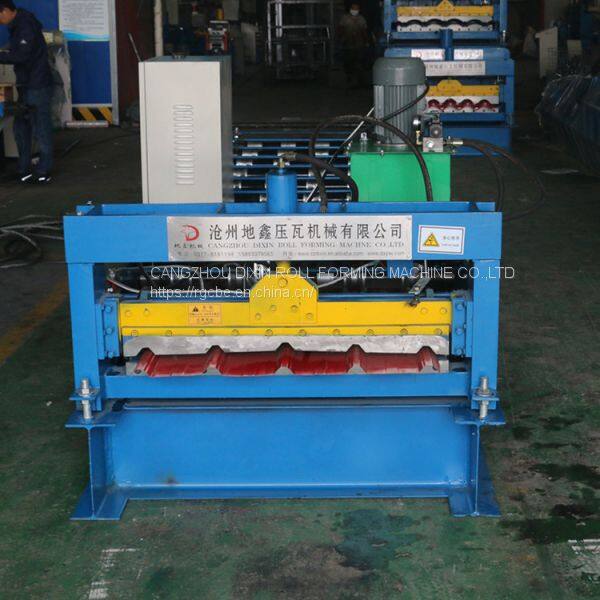

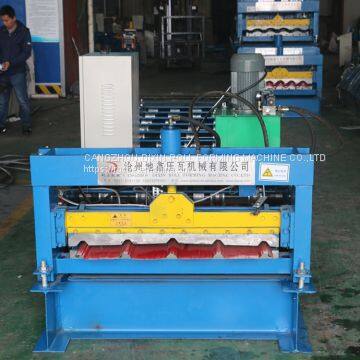

8.Some pictures of the machine for your reference.

customer visit

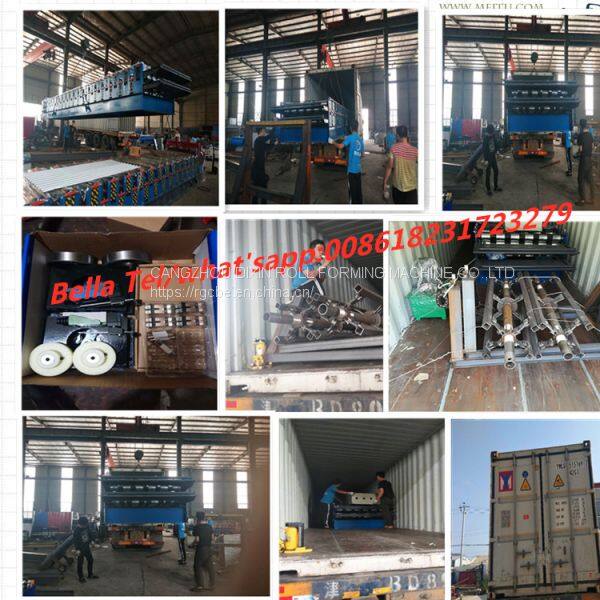

Packing ans shipping details

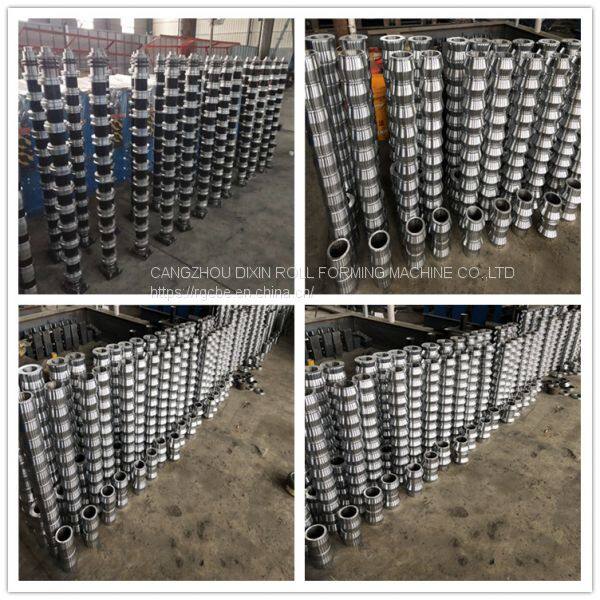

we only adopt best materials

If you want to know more details of the machine,please contact us.

Contact: Bella  Skype:andylidx  Whatsapp: +8618231723279

Our official website:

welcome you visit our factory.
