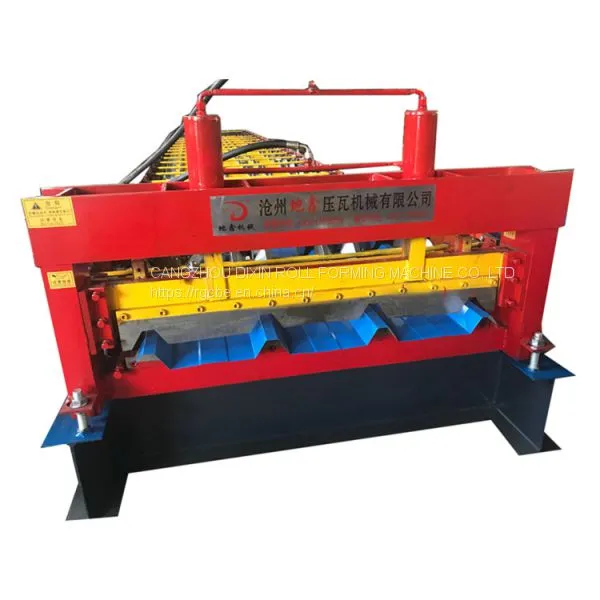

Roofing tile making machine/trapezoidal galvanized tile machine
1.This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
2.The machine is stable,no noise,no shake.
3.Controlling by computer,PLC display,operation is easy,running is steady and reliable,endurable,maintenance-free.
4.Cutting machine is characterized by stable driving,easy operation.
5.Hydraulic system use the hydraulic pump,long operating life,no noise.
1.Panel drawing according to your request
2.some machine pictures for your reference.
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High precesion to control the tile length and pieces.
4) Running in a high automatization and intellectualization,no pollution
3.Machine Technique parameters
Main Frame |
350/400mm H beam steel |
| SideBoard | 16mm |
| Decoiler | Manual decoiler or Hydraulic decoiler or No decoiler |
| Forming speed | 10-15m/min |
| Rollers | 18rows of rolles |
| Shafts materials | 45# steel |
| Shafts diameter | 75mm |
| Roller materials | 45#steel |
| Transmission | Chains-Transmission |
| Main motor power | 5.5kw |
| Cutter | Cr12 |
| Cutter stype | Hydraulic cutting |
| Hydraulic station | 4kw |
|
This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| PLC control system | Delta or Siemens |
| Voltage | 380V/50HZ/3Phase |
Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
Component
NO. |
Item |
Unit |
Qty |
1 |
Manual decoiler |
set |
3 |
2 |
Main roll forming machine |
set |
1 |
3 |
PLC control box |
set |
1 |
4 |
Supporter table |
set |
1 |
Workflow
Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table
1. Cutting press is 20 tons
2. Blade and mold material:GCR12steel with quenched treated 60-62℃
It can decide cut panel dimension according to the hydraulic drive and PLC computer control system
Hydraulic Station
2. Roller station: 11-16(depends on final design)
3. Thickness of feeding material:0.3-0.8mm
2. Automatic length measurement
3. Automatic quantity measurement
4. Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.
5. Length inaccuracy can be amended easily.
2 Steel coil width: 1300mm
4 Coil placement in the coil holder: hydraulic hoist
5 Working speed: 0-15m/min adjustable
