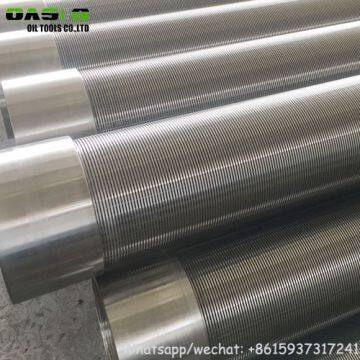

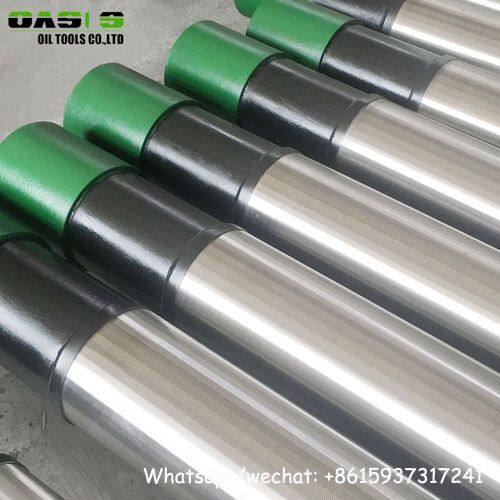

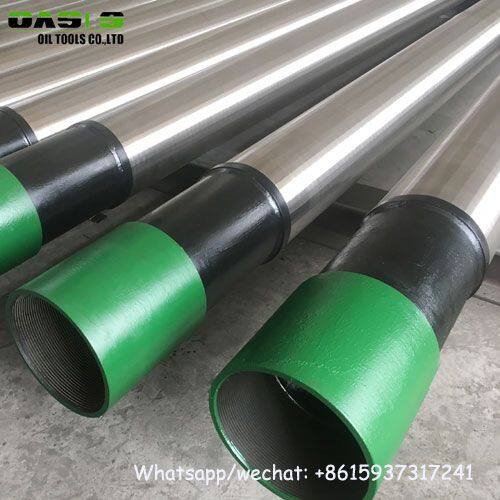

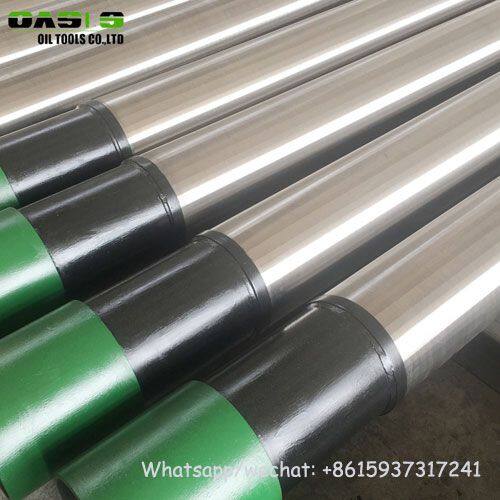

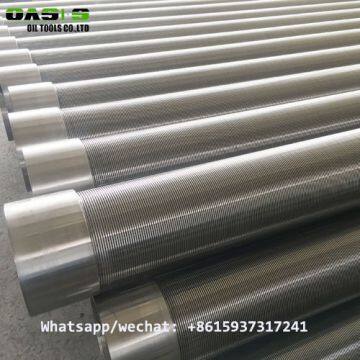

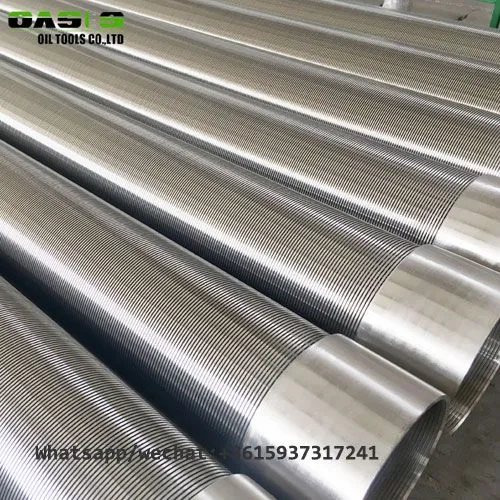

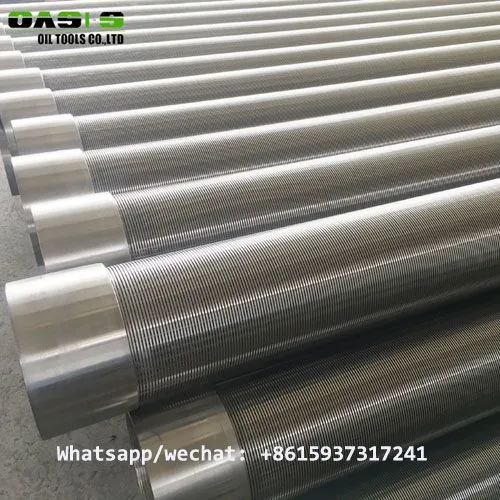

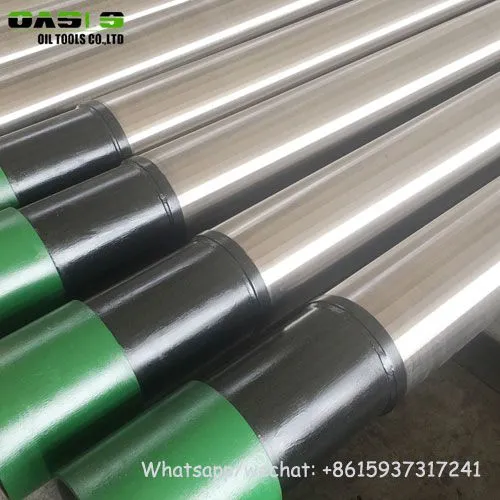

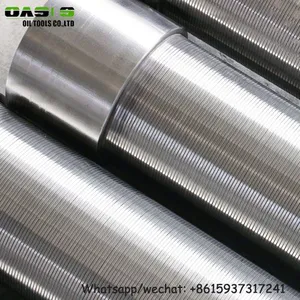

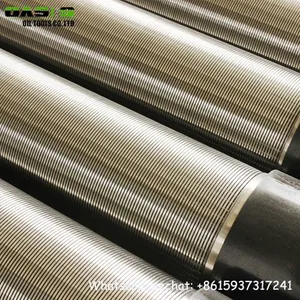

8 5/8inch Reinforced Wire Wrapped Pipe Based Johnson Screens

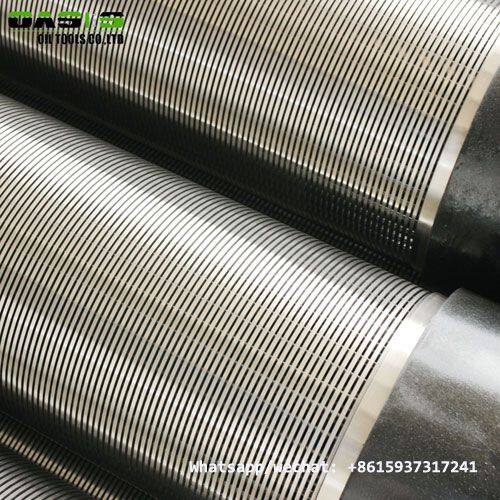

Continuous slot vee shaped wire water well screens are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wires is fusion welded. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
Technical Specifications of 8 5/8inch Reinforced Wire Wrapped Pipe Based Johnson Screens
Length up to 5.85 meters
Diameter ranging from 25mm to 800mm
End Connection: plain beveled ends for butt welding or threaded
Specifications are according to customers requirements.
| Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request | |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |

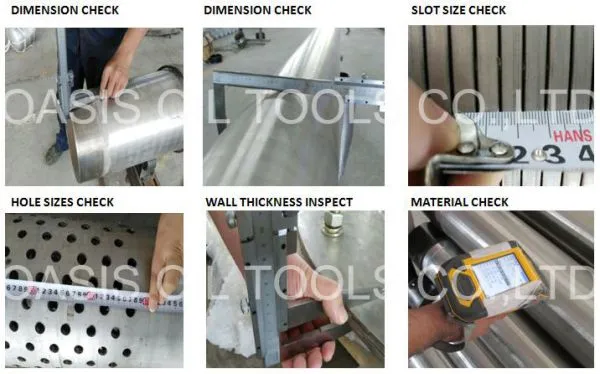

Raw Material Incoming Inspection of 8 5/8inch Reinforced Wire Wrapped Pipe Based Johnson Screens

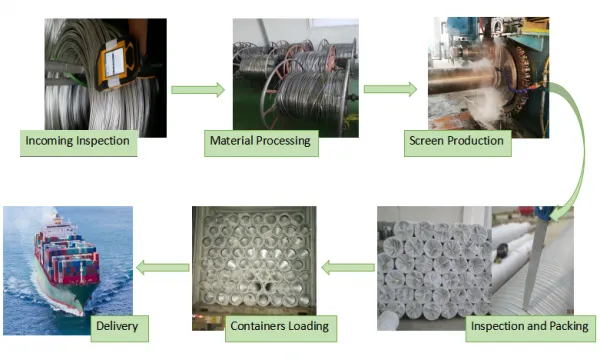

Prodcution Process of 8 5/8inch Reinforced Wire Wrapped Pipe Based Johnson ScreensPackaging Information
Single with bubble bags and then in wooden case.
Each case is clearly marked with:
Batch number
Date of manufacture
Safe heating & application temperature
