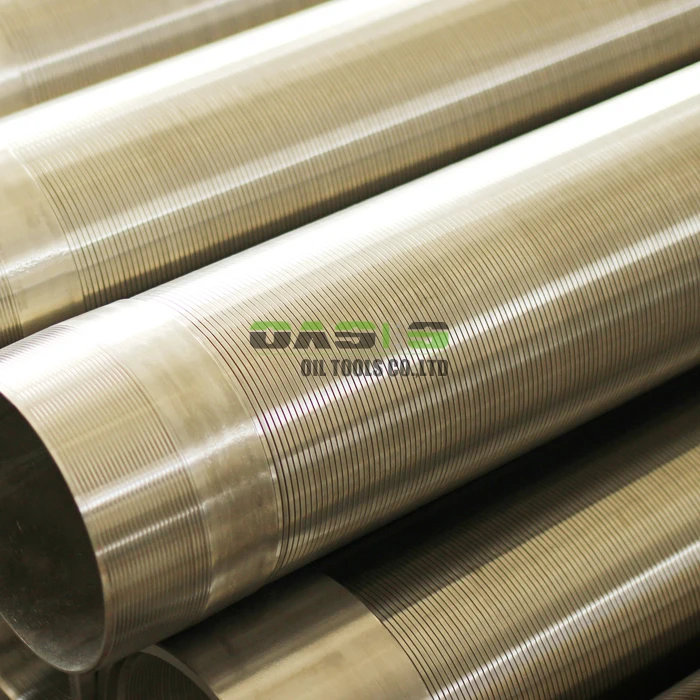

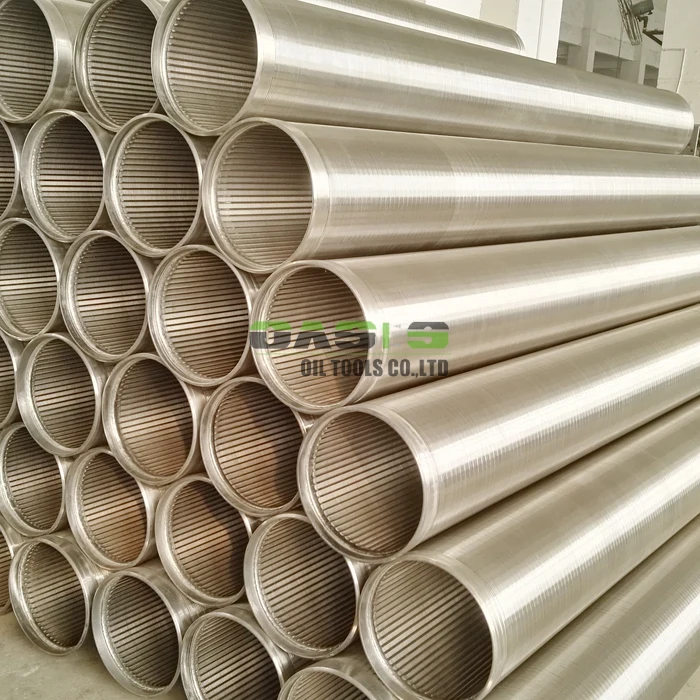

Stainless Steel 316 Johnson type water well pipe screens
Made By OASIS OIL TOOL CO.,LTD
Materials: Carbon steel and stainless steel including 304, 304L, 316, 316L etc
OD: 20-600mm
Length:0.1-6meters
The characteristics of the wire and rods:

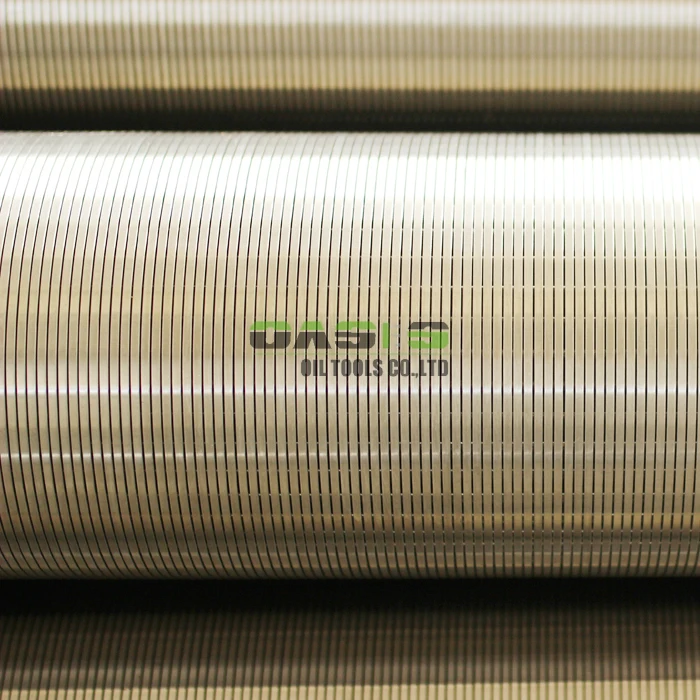

The welded stainless steel water well screen is made up of rods and wires. The rods can be round, triangular and trapezoid wire. The wire is triangular wire we also called v-shaped wire.
The characteristics of the slot:
the structure of the water well screen with high open area, as well as accurate dimension.
Other characteristics of the water well screens:
heat-resisting, anti-corrosive, good machine capability, last long, safety
and reliability and so on characteristics. It can be used in many kinds of medium filtering
The use area of the wedge wire screens:
The strainer is a kind of filtered water tubing with the perforation, it can use
with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filtersand the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

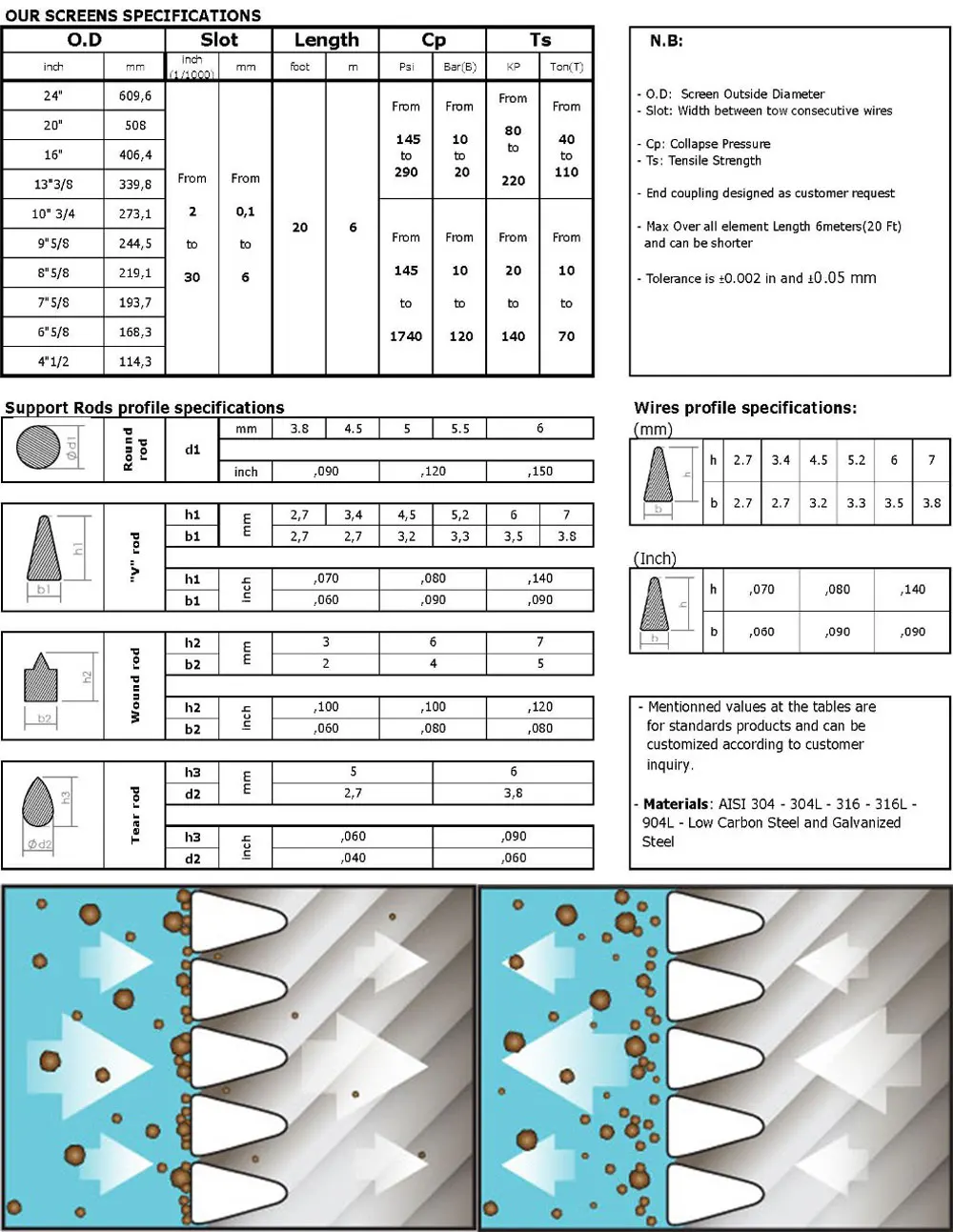

The specifications of the water well screens
SIZE |
O.D |
SLOT |
LENGTH |
COLLAPSE |
TENSILE |
WRAP(thick*deep) |
RODS |
4 |
117 |
0.040 |
3 |
395 |
6 |
2.2*3.0 |
3.8MM/22 |
4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.3*3.0 |
3.8MM/22 |
6 |
168.3 |
0.040 |
3 |
252 |
8 |
2.3*3.5 |
3.8MM/32 |
8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
3.0*5.0 |
3.8MM/48 |
8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*5.0 |
3.8MM/48 |
8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8MM/48 |
10 |
273.1 |
0.010 |
3 |
206 |
11 |
3.0*5.0 |
3.8MM/50 |
10 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*5.0 |
3.8MM/50 |
10 |
273.1 |
0.040 |
3 |
167 |
11 |
3.0*5.0 |
3.8MM/50 |
More data sheet please contact with our sales, who will supply you more specifications and the professional quotation.

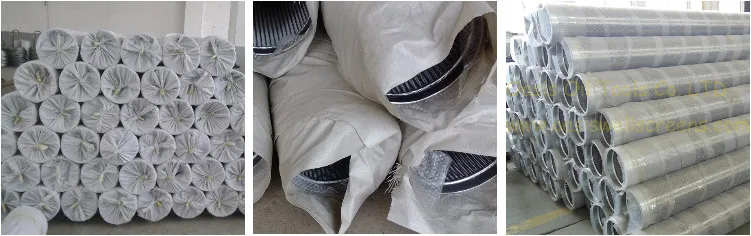

Packing and delivery

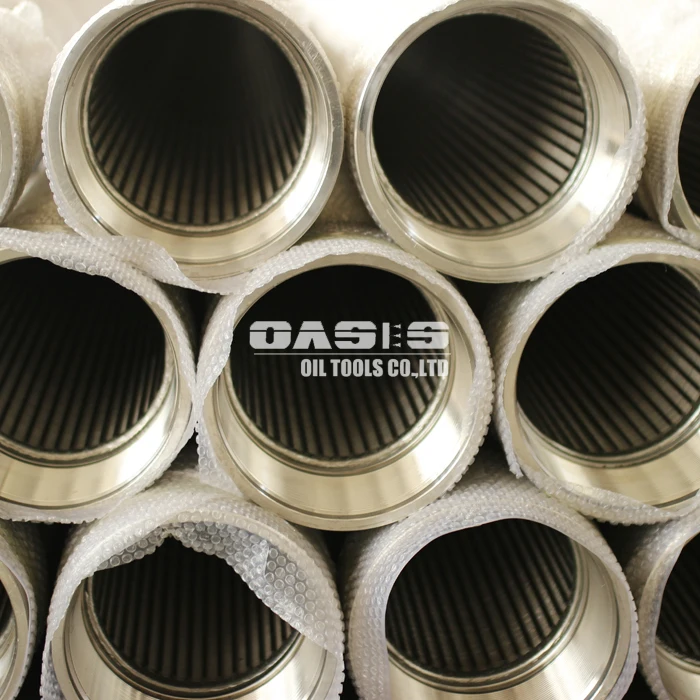

Each with bubble bags and then in wooden case.
Each case is clearly marked with:
1.Batch number
2.Date of manufacture
3.Safe heating & application temperature
Transported by sea
