Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > LEO 5000A-14 Low Cost MT9P031 GigE Vision Rolling Shutter 5MP Industrial Camera Module

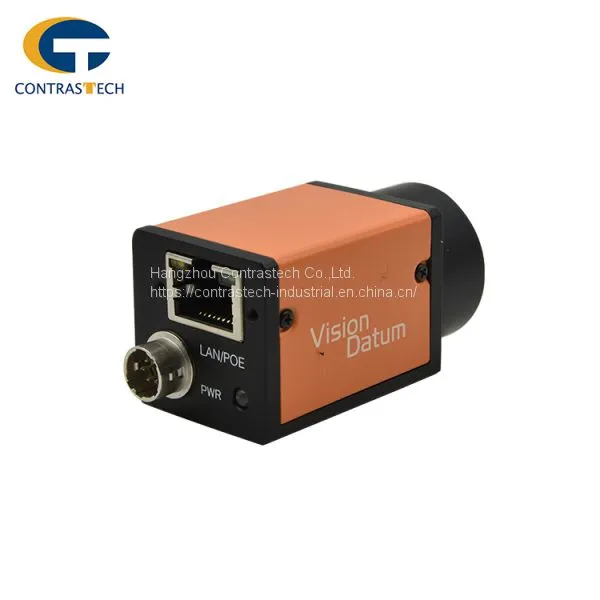

LEO 5000A-14 Low Cost MT9P031 GigE Vision Rolling Shutter 5MP Industrial Camera Module
US$ 310 - 372
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Contrastech
Place of Origin:
China
Model Number:
LEO 5000A-14gm/gc
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
15 days
Related Products
-
LEO 5000S-24 High Performance 5MP High Resolution Industrial Camera For Manufacturing ApplicationsUS$ 775 - 918MOQ: 1 Piece -
LEO 1920S-25 Manufacturer Sale 1920 x 1440 IMX687 C Mount Digital CCD Industrial CameraUS$ 575 - 678MOQ: 1 Piece
-
LEO 5000P-22 Manufacturer Sale 5 Megapixels Power Over Ethernet Machine Vision NIR CameraUS$ 660 - 780MOQ: 1 Piece
-
LEO 6000S-17gm/gc High Cost Performance 6 Megapixel Rolling CMOS High Resolution Camera ModuleUS$ 350 - 385MOQ: 1 Piece
-
LEO 3840A-7 Free SDK Compatible OpenCV Low Cost Industrial Grade CMOS 10MP CCTV CameraUS$ 300 - 320MOQ: 1 Piece
Brand Name
Contrastech
Place of Origin
China
Model Number
LEO 5000A-14gm/gc
Type
Digital Camera
Special Features
Other, Industrial Camera Module
Technology
NetWork
Sensor
CMOS
Style
Other, Machine Vision Camera
MAIN FEATURES
■ Wide range of resolution
Resolution from VGA to 20MP for various applications.
■ High quality sensors
Lastest Python series sensor from On-Semiconductor and SONY Pregius CMOS sensors provide high quality images.
■ Frame Rate up to 815 fps
High frame rate ideal for high speed applications.
■ 128 MB RAM
Internal memory up to 128 MB guarantees no image loss.
■ One-cable solutions
Gigabit Ethernet with PoE, USB 3.0
■ Outstanding price/performance ratio
| Model | LEO2300S-41gm/gc | LEO1920S-25gm/gc | LEO3000S-38gm/gc | LEO5000A-14gm/gc | LEO5000S-24gm/gc |
| Resolution (H*V pixels) | 1280 × 1024 | 1920 x 1440 | 2048 × 1536 | 2592 × 1944 | 2448 x 2048 |
| Sensor | SONY IMX249 | SONY IMX287 | SONY IMX265 | ON Semiconductor MT9P031 | Sony IMX264 |
| Sensor Size (optical) | 1/1.2'' | 1/1.8'' | 1/1.8'' | 1/2.5'' | 2/3'' |
| Sensor Technology | CMOS, Global | CCD, Global | CMOS, Global | CMOS, Rolling | CMOS, Global |
| Pixel Size (μm2) | 5.86 × 5.86 | 3.69 × 3.69 | 3.45 × 3.45 | 2.2 x 2.2 | 3.45 x 3.45 |
| Frame Rate (fps) | 41 | 25 | 38 | 14 | 24 |
| Data Bits | 8bit / 10bit / 12bit | ||||
| Exposure Time | 40μs~10s | 26μs~1s | 50μs~10s | 34μs~1s | 33.6μs~10s |
| Dynamic Range | >70dB | >61dB | >73dB | >60dB | >60dB |
| Mono/Color | Mono/Color | Mono/Color | Mono/Color | Mono/Color | Mono/Color |
| Image Format | Mono: Mono8/10/10p/12/12p Color: Bayer RG 8/10/10p/12/12p |
||||
| Interface | Gigabit Ethernet (1000 Mbit/s) | ||||
| Synchronization | Via hardware trigger, via software trigger or free run | ||||
| Programmable Control (ISP) | Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction | ||||
| Housing Size (L*W*H) | 42.0 mm × 29.0 mm × 29.0 mm (65g) (*A) | ||||
| Operating Temperature | -30~80 °C (Storage), 0~50°C (Working) | ||||
| Lens Mount | C-Mount | ||||
| Digital I/O | 1 opto-isolated input, 1 opto-isolated output, 1 bidirectional custom non-isolation I/O | ||||
| Power Input | DC 5-15V Power over Ethernet | DC 5-15V Power over Ethernet | DC 5-15V Power over Ethernet | DC 5-15V Power over Ethernet | DC 9-26V Power over Ethernet |
| Power Consumption | 12V @2.9W | 12V @4.0W | 12V @3.4W | 12V @2.75W | 12V @3.3W |
| Driver | LEO Series Camera Software Suite or 3rd party GigE Vision Software | ||||
| Operating System | Windows, Linux,Arm | ||||
| Conformity | GigE Vision, GenICam | ||||
You can refer to the catalog by click below links of dropbox:
Camera & lens: /s/qvi1h7ikn9n9xme/Catalog%20for%20camera%20%26%20lens%20-%20CONTRASTECH.pdf?dl=0
led light: /s/jiqkfbbpa3s6wbh/ContrasTech_LT3_Lights-2019-V1.6.pdf?dl=0
NEW LEO Series Camera: /s/ztszt4a8aato0pj/LEO%20Series%20Industrial%20camera%20-%20CONTRASTECH.pdf?dl=0
