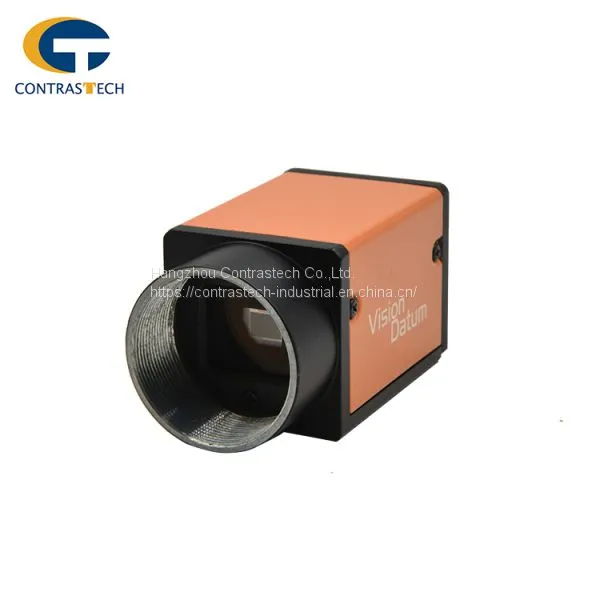

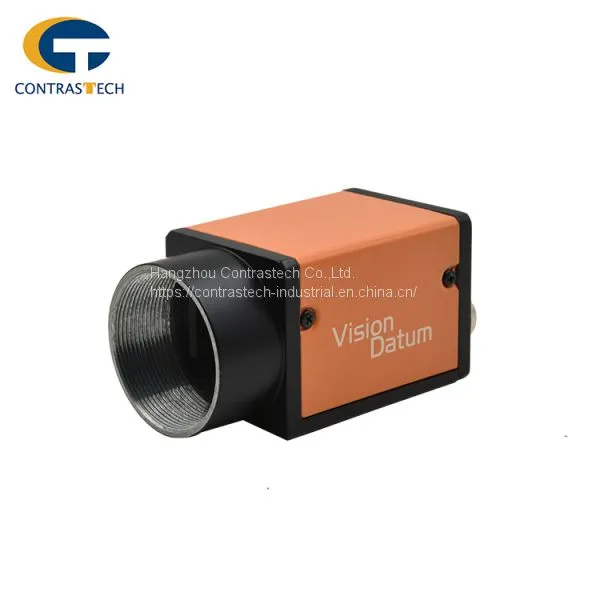

LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera

LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera thumbnail-1
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera thumbnail-2
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera thumbnail-3
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera thumbnail-4
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera thumbnail-5
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera photo-1
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera photo-2
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera photo-3
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera photo-4
LEO 9MS-13 High Cost Performance 4096 x 2160 1 Inch CMOS IMX267 Gige Industrial Camera photo-5
US$ 1510 - 1800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Contrastech
Place of Origin:
China
Model Number:
LEO 9MS-13gm/gc
Contact Supplier Request Quote Chat Now
Hangzhou Contrastech Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Contrastech
Place of Origin China
Model Number LEO 9MS-13gm/gc
Type Digital Camera
Special Features Other, Machine Vision Camera
Technology NetWork
Sensor CMOS
Style Other, gige industrial camera


MAIN FEATURES

■ Wide range of resolution

Resolution from VGA to 20MP for various applications.

■ High quality sensors

Lastest Python series sensor from On-Semiconductor and SONY Pregius CMOS sensors provide high quality images.

■ Frame Rate up to 815 fps

High frame rate ideal for high speed applications.

■ 128 MB RAM

Internal memory up to 128 MB guarantees no image loss.

■ One-cable solutions

Gigabit Ethernet with PoE, USB 3.0

■ Outstanding price/performance ratio


Model LEO5470s-6gm/gc LEO9MS-13gm/gc LEO3800A-7gm/gc LEO3800A-11gm LEO4020S-10gm/gc
Resolution   (H*V pixels) 5470 × 3648 4096 x 2160 3840 × 2748 3840 × 2748 4024 x 3036
Sensor SONY IMX183 SONY IMX267 ON Semiconductor MT9J003 ON Semiconductor MT9P031 Sony IMX226
Sensor Size   (optical) 1'' 1/'' 1/2.3'' 1/2.3'' 1/1.7''
Sensor   Technology CMOS, Rolling CMOS, Global CMOS, Rolling CMOS, Rolling CMOS, Rolling
Pixel Size   (μm2) 2.4 × 2.4 3.45 × 3.45 1.67 × 1.67 2.2 x 2.2 1.85 x 1.85
Frame Rate   (fps) 6 13 7 11 10
Data Bits 8bit / 10bit / 12bit
Exposure Time 46μs~2.5s 50μs~10s 50μs~2s 26μs~1s 34μs~2s
Dynamic Range >65dB >73dB >65dB >65dB >65dB
Mono/Color Mono/Color Mono/Color Mono/Color Mono/Color Mono/Color
Image Format Mono: Mono8/10/10p/12/12p
Color: Bayer RG 8/10/10p/12/12p
Interface Gigabit Ethernet (1000 Mbit/s)
Synchronization Via hardware trigger, via software trigger or free run
Programmable   Control (ISP) Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image   Rollover, Raw, LUT, Black Level Correction
Housing Size   (L*W*H) 42.0 mm × 29.0 mm × 29.0 mm (65g) (*A)
Operating   Temperature -30~80 °C (Storage), 0~50°C (Working)
Lens Mount C-Mount
Digital I/O 1 opto-isolated input, 1 opto-isolated output, 1 bidirectional custom   non-isolation I/O
Power Input DC 5-15V                Power over   Ethernet DC 5-15V               Power over Ethernet DC 5-15V                 Power over   Ethernet DC 5-15V                 Power over   Ethernet DC 9-26V                  Power over   Ethernet
Power   Consumption 12V @3.93W 12V @3.7W 12V @2.5W 12V @2.5W 12V @3.23W
Driver LEO Series Camera Software Suite or 3rd party GigE Vision Software
Operating   System Windows, Linux,Arm
Conformity GigE Vision, GenICam

You can refer to the catalog by click below links of dropbox:

Camera & lens: /s/qvi1h7ikn9n9xme/Catalog%20for%20camera%20%26%20lens%20-%20CONTRASTECH.pdf?dl=0

led light: /s/jiqkfbbpa3s6wbh/ContrasTech_LT3_Lights-2019-V1.6.pdf?dl=0


NEW LEO Series Camera: /s/ztszt4a8aato0pj/LEO%20Series%20Industrial%20camera%20-%20CONTRASTECH.pdf?dl=0



Product Tags: Industrial Camera , Machine Vision Camera , Global Shutter Camera , Raspberry Pi Camera , GigE Vision , Vision inspection camera , 1 inch cmose sensor camera , IMX267 , gige industrial camera
