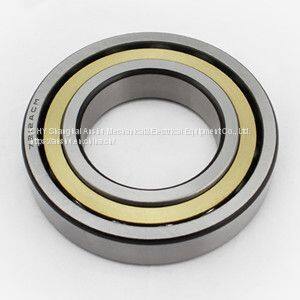

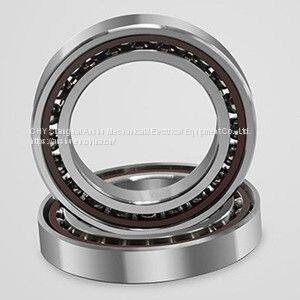

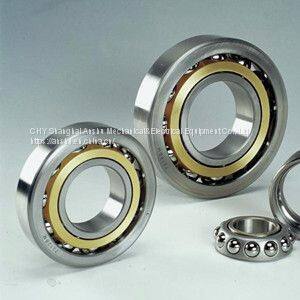

Angular Contact Ball Bearings QJ206 QJ207 QJ208 QJ209 QJ210 QJ211 QJ212 QJ213 QJ214 QJ215 QJ216

FOB Price

US$ 0.1 - 500 / Piece

1 Piece(Min. Order)

Port Shang Hai
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CHY	Place of Origin	China
Model Number	QJ206 QJ207 QJ208 QJ209 QJ210 QJ211 QJ212 QJ213 QJ214 QJ215 QJ216	Number of Row	Single Row
Seals Type	open	Precision Rating	P0
Outside Diameter	12, 500	Bore Size	10, 300

Product Description

Introduction to angular contact ball bearings

Angular contact ball bearings have raceways on the inner and outer rings, and the inner and outer rings can be displaced relative to each other along the axial direction of the bearing. These bearings are particularly suitable for withstanding composite loads, ie loads acting simultaneously in both radial and axial directions. The axial load bearing capacity of the angular contact ball bearing increases as the contact angle α increases. The contact angle is the angle between the line connecting the contact point of the ball and the raceway in the radial plane and the vertical line of the bearing axis.

The angular contact ball bearing models are divided into: α=15° angular contact ball bearings (70000C type); α=25° angular contact ball bearings (70000AC type); α=40° angular contact ball bearings (70000B type) Back-to-back paired double angular contact ball bearings [70000C (AC, B) / DB type]; face-to-face paired double angular contact ball bearings [70000C (AC, B) / DF type]; series paired double angle Contact ball bearings [70000C (AC, B) / DT type]; four point angular contact ball bearings (QJ0000 type). The material of the cage is brass, synthetic resin, etc., depending on the bearing type and the conditions of use.

Address: No. 24, Lane 397, Huhang Road, Fengxian District, Shanghai, China

Email：bearing@anshu-electromech.com Mobile phone:(0086)013918253057

Tel：（0086）021-60140720 wechate:ch13918253057

Fax：（0086）021-35090027 QQ：810480122

WhatsApp:+8613918253057 Skype:chpfchpf

model	d	D	B	seal	Accuracy level	weight（kg）
QJ206	30	62	16	MA	P0、P5	0.24
QJ207	35	72	17	MA	P0、P5	0.35
QJ208	40	80	18	MA	P0、P5	0.45
QJ209	45	85	19	MA	P0、P5	0.52
QJ210	50	90	20	MA	P0、P5	0.59
QJ211	55	100	21	MA	P0、P5	0.77
QJ212	60	110	22	MA	P0、P5	0.98
QJ213	65	120	23	MA	P0、P5	1.2
QJ214	70	125	24	MA	P0、P5	1.3
QJ215	75	130	25	MA	P0、P5	1.5
QJ216	80	140	26	MA	P0、P5	1.85
