Home > Products > Taper Roller Bearings > Taper Roller Bearings 32912 32916 32914 32915 32916 32917 32918 32919 32920 32922 32924 32926
Taper Roller Bearings 32912 32916 32914 32915 32916 32917 32918 32919 32920 32922 32924 32926
- Shang Hai
- T/T L/C
- 7 days
You May Like
-
Taper Roller Bearings 32928 32930 32932 32934 32936 32938 32940 32944 32948 32952
-
Taper Roller Bearings 32956 32960 32964 32968 32972 32976 32980 32984 32988
-
Taper Roller Bearings 32004 32005 32006 32007 32008 32009 32010 32011 32012 32013 32014 32015
-
Taper Roller Bearings 32016 32017 32018 32019 32020 32021 32022 32024 32026 32028 32030 32032
-
Taper Roller Bearings 32034 32036 32038 32040 32044 32048 32052 32056 32060 32064 32068 32072 32076
-
Taper Roller Bearings 33012 33013 33014 33015 33016 33017 33018 33019 33020 33022 33024
Product Details
| Brand Name | CHY | Place of Origin | China | |
| Model Number | 32912 32916 32914 32915 32916 32917 32918 32919 32920 32922 32924 32926 | Number of Row | Single Row | |
| Seals Type | open | Precision Rating | P5,P4,P2 | |
| Outside Diameter | 10, 560 | Bore Size | 20, 1000 |
Product Description

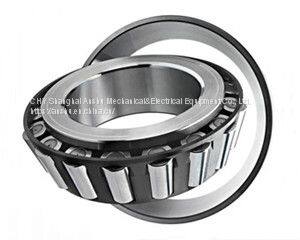

Introduction to Tapered Roller Bearings
The type of tapered roller bearing is 30,000, and the tapered roller bearing is a separate bearing. The angle of the outer ring and the outer race diameter have been standardized as the outer dimensions, and are not allowed to be changed during design and manufacture. The outer ring and the inner component of the tapered roller bearing can be universally interchanged worldwide. Tapered roller bearings are mainly used to withstand radial and axial combined loads based on radial loads. Compared with angular contact ball bearings, the bearing capacity is large and the limit speed is low. Tapered roller bearings are capable of withstanding axial loads in one direction and can limit axial displacement in one direction of the shaft or housing.
Generally, the outer ring raceway of a single row tapered roller bearing has a cone angle of 10° to 19° and can simultaneously bear the combined action of axial load and radial load. The larger the cone angle, the greater the ability to withstand axial loads. Large cone angle bearing, rear code plus B, cone angle between 25 ° ~ 29 °, it can withstand large axial loads. In addition, single row tapered roller bearings can adjust the clearance during installation.

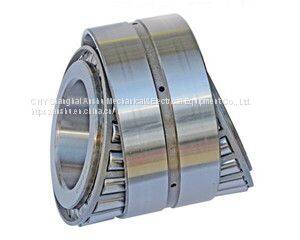

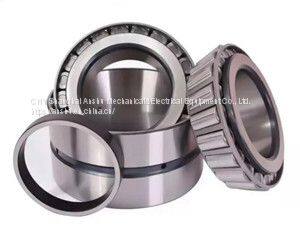

The outer ring (or inner ring) of the double row tapered roller bearing is a unitary body. The two inner rings (or outer rings) have similar small end faces and spacers in the middle. The play is adjusted by the thickness of the spacers. The performance of the four-row tapered roller bearing is basically the same as that of the double-row tapered roller bearing, but the radial load is larger than that of the double-row tapered roller bearing, and the limit rotation speed is slightly lower, which is mainly used for heavy machinery.
Address: No. 24, Lane 397, Huhang Road, Fengxian District, Shanghai, China
Email：bearing@anshu-electromech.com Mobile phone:(0086)013918253057
Tel：（0086）021-60140720 wechate:ch13918253057
Fax：（0086）021-35090027 QQ：810480122
WhatsApp:+8613918253057 Skype:chpfchpf
| model | d | D | B | Accuracy level | weight（kg） |
| 32912 | 60 | 85 | 17 | P0、P5、P4 | 0.306 |
| 32913 | 65 | 90 | 17 | P0、P5、P4 | 0.323 |
| 32914 | 70 | 100 | 19 | P0、P5、P4 | 0.494 |
| 32915 | 75 | 105 | 20 | P0、P5、P4 | 0.53 |
| 32916 | 80 | 110 | 20 | P0、P5、P4 | 0.56 |
| 32917 | 85 | 120 | 23 | P0、P5、P4 | 0.8 |
| 32918 | 90 | 125 | 23 | P0、P5、P4 | 0.841 |
| 32919 | 95 | 130 | 23 | P0、P5、P4 | 0.877 |
| 32920 | 100 | 140 | 25 | P0、P5、P4 | 1.18 |
| 32922 | 110 | 150 | 25 | P0、P5、P4 | 1.29 |
| 32924 | 120 | 165 | 29 | P0、P5、P4 | 1.8 |
| 32926 | 130 | 180 | 32 | P0、P5、P4 | 2.25 |
