HZ-200YY Hydraulic Core Drilling Rig

FOB Price

US$ 3000 - 6000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaxiaMaster	Place of Origin	China
Model Number	HZ-200YY	Type	Rotary Drilling Rig
Certification	ISO9001	After-sales Service Provided	Overseas third-party support available
Warranty	Half year	Weight	2400kg
Dimension(LWH)	2700x900x1500 mm	Power Type	Diesel
Usage	Coal	Condition	New
Power(W)	15KW

Product Description

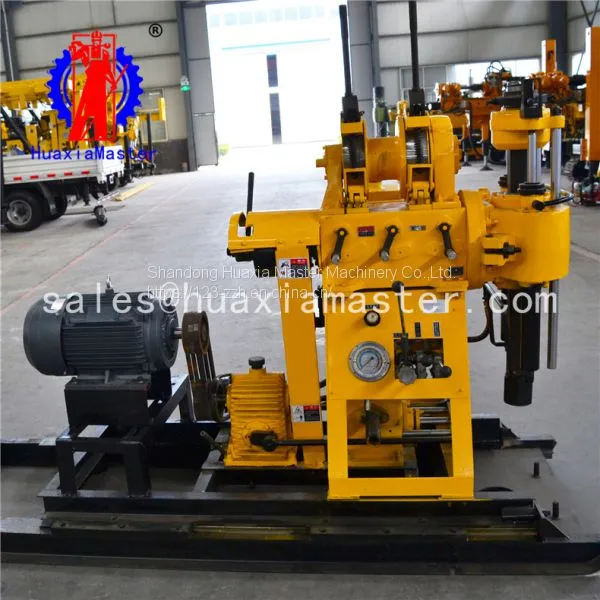

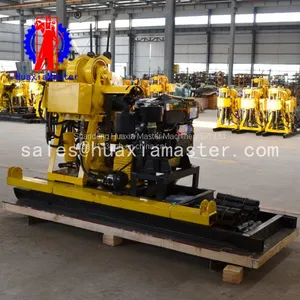

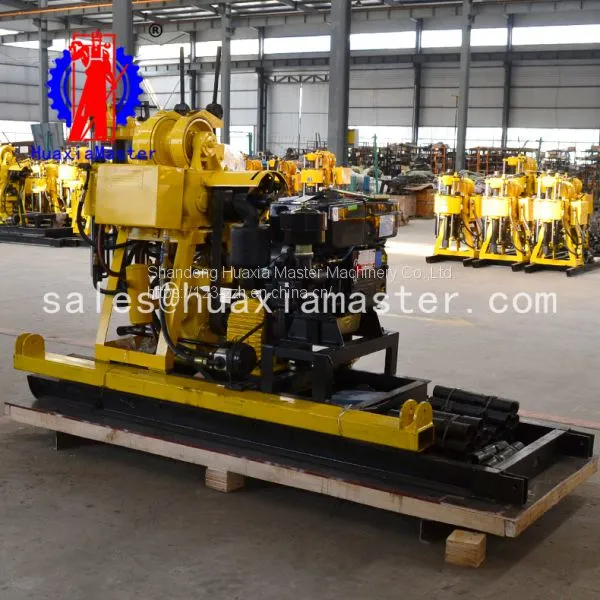

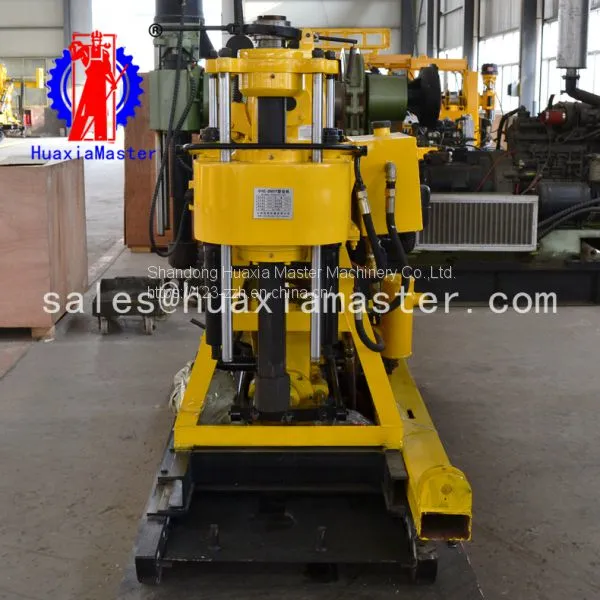

HZ-200YY hydraulic core drilling rig

1.Applications of HZ-200YY hydraulic core drilling rig

HZ-200YY hydraulic core drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil water wells and ground temperature central air-conditioner.

2. Features of HZ-200YY hydraulic core drilling rig

· the highest speed can reach 1045r/min with 5 gears, which improves drilling efficiency

· adopted 53*59 drilling rod, which has high rigidity and strong delivery torque.

· equipped with taper clutch, made the machine easy to operate and free of maintenance.

· using large module planetary gear and adding supporting frame, which highly increased hoisting and braking ability of the winch.

· vertical spindle are fixed by four groups of bearings to ensure that the core drilling rig is rigid enough for gravel layer and other complex geological conditions.

3. Technical parameters of HZ-200YY hydraulic core drilling rig

Max open hole diameter	300mm
End hole diameter	75mm
Drill rod diameter	60mm
Drilling angle	90
Drill weight (without power)	975kg
Triangle conveyer belt	B950 * 4; B1700 * 3
Main drilling rig moving distance	300mm
Power	Diesel engine 22HP
Power	Electric motor 15kw
Spindle
Spindle speed	64/128/287/557r/min
Spindle stroke	450mm
Hoist
Max. lifting capacity	2400kg
Single line lifting speed	0.41/0.82/1.64 m/s
Wire rope diameter	13mm
Wire rope length	35m
Reel diameter	140mm
Hug floodgate diameter	260mm
Hug floodgate belt width	70mm
Mud pump
Type	Horizontal single-urn twin-action
Displacement	Diesel engine 170L/min
Displacement	Electric motor 150L/min
Maximum pressure	3mpa
Work pressure	1.5mpa
Inlet pipe diameter	40mm
Outlet pipe diameter	30mm
Triangle conveyer belt	B1728mm
