XYX-44A Wheeled Hydraulic Core Drilling Rig

Shandong Huaxia Master Machinery Co.,Ltd.
XYX-44A Wheeled Hydraulic Core Drilling Rig thumbnail-1
XYX-44A Wheeled Hydraulic Core Drilling Rig thumbnail-2
XYX-44A Wheeled Hydraulic Core Drilling Rig thumbnail-3
XYX-44A Wheeled Hydraulic Core Drilling Rig photo-1
XYX-44A Wheeled Hydraulic Core Drilling Rig photo-2

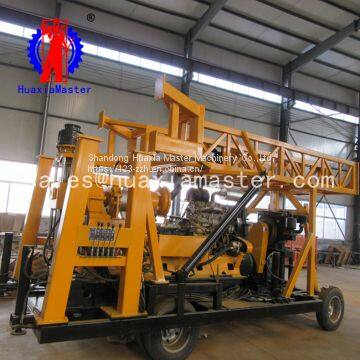

XYX-44A Wheeled Hydraulic Core Drilling Rig photo-3
US$ 19500 - 20000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia master
Place of Origin:
China
Model Number:
XYX-44A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxia master
Place of Origin China
Model Number XYX-44A
Type Core Drilling Rig
Certification ISO9001
After-sales Service Provided Overseas service center available
Warranty 6 months
Weight 1200KG
Dimension(L*W*H) 3050*1100*1920 mm
Power Type Diesel
Voltage 380v
Usage Ore

XYX-44A wheeled hydraulic core drilling rig

1. Characteristics of XYX-44A wheeled hydraulic core drilling rig

XY-44A wheeled hydrulic core drilling rig is a multi-purpose spindle diamond core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. HuaxiaMaster core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.

2. Applications of XYX-44A wheeled hydraulic core drilling rig

· Core drilling rig

· Engineering geology exploration,

· Hydrology and core drilling

· Large diameter foundation piles construction

3. Parameters of XYX-44A wheeled hydraulic core drilling rig

XYX-44A wheeled hydraulic core drilling rig

Drilling depth

600-1400m

Max open hole caliber

300mm

End hole caliber

75mm

Drilling rod diameter

60mm

Drilling angle

90-65

Drill rig moving stroke

450mm

Spindle



Spindle speed ( Diesel Engine)

Forward 60 97 169 187 276 301

284 487 521 847 1180 1490r/min

Reverse 65 201r/min



Spindle speed ( Electric Motor)

Forward 50 81 141 155 230 251

320 406 434 706 984 1247r/min

Reverse 54 167r/min

Spindle stroke

600mm

Spindle max. pressure force

90kn

Spindle inner diameter

96mm

Lifting capacity

120kn

Main hoist

Max.single line lifting capacity

45kn

Max.single line lifting speed

0-45m/s

Wire rope caliber

17.5-18.5mm

Hoist capacity of wire line

90-110m

Roller diameter

140mm

Wirerope diameter

6mm

Wire rope length

450m

Mud pump

Type

BW-250

Displacement

250 l/min

Work pressure

80kg/cm²

Water inlet pipe diameter

75 mm

Water outlet pipe diameter

50 mm

Power

Diesel engine

YC4E135-1  81KW

Electric motor

Y225S-4     37KW




Product Tags: wheeled hydraulic core drilling rig , truck mouted portable drilling machine
