Help CenterStone Crushing Plant
Related Products
Max feeding size: 340mm, 420mm, 500mm
Output size: 1-50mm
Application: Infrastructure construction, real estate development, paving
Main Equipment: Vibrating Feeder, Crusher, Conveyor, Screen
ZK Corp Stone Crushing plant includes vibrating feeder, jaw crusher, impact crusher or cone crusher, vibrating screen, belt conveyor and centrally electric controlling system, etc.
1
Good gravel particle shape, reasonable grade and less grinding power.
2
Equipment investment is 25-50% less than conventional production line, short investment recovery period and significant economic benefit.
3
Automation, high degree of information technology, high production efficiency and less employee;
Stone crushing plant is an one-stop production line including crushing, feeding, conveying, screening service, which can be used for rock, stone, ore etc. It is widely used in many sectors of mining, smelting, building material, highway, railway, water conservancy and chemical industry.
We provide a whole set of equipent for stone crushing plant, which includes: vibrating feeder, jaw crusher, impact crusher, cone crusher, vibrating screen, belt conveyor etc.
Application: Our stone crushing plant equipment can crush various kinds of materials, for example, high hard, mid hard and soft rocks and ores such as iron ore, limestone, slag, marble, quartz, granite, cement, clinker and so on.

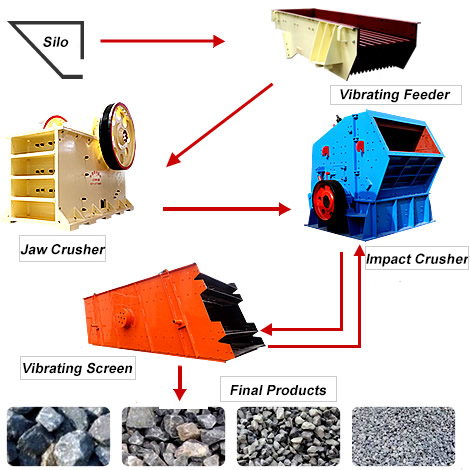

Production Process
ZK Corp Stone Crushing plant ,The impact crusher is used as secondary crusher with the features of simple flow, very cubical shape granularity, low investment, energy-saving, high capacity, easy maintenance etc. The Stone production line is suitable for crushing granite, river gravel, and limestone and so on.The Stone production line consists of vibrating feeder, jaw crusher, impact crusher, and vibrating screen and so on.
The Big materials are fed to the jaw crusher evenly and gradually by vibrating feeder through a hopper for the primary crushing. After first crushing, the material will transferred to impact crusher or cone crusher by belt conveyor for secondary crush; the crushed materials will then transferred to vibrating screen for separating.
After being separated, the parts that can meet standard will be taken away as final products, while the other parts will be returned to impact crusher, thus forming a closed circuit. Size of final products can be combined and graded according to customer’s specific requirement. We can also equip dust catcher system to protect environment.
If you want to know more,please contact me.
