Specifications
1.Large feeding size2.Overloading protection device
3.Large capacity
4.Wear-resistant spare parts

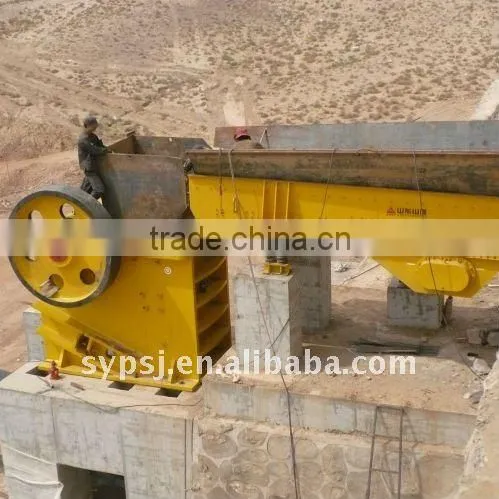

Lowest Capacity stone crushing line for hot sales/stone crushing machine ,stone crusher, jaw crusher line
Principle Of Operation- Large stone crusher equipment :
The motor passes the motive power to the eccentric shaft end's pulley, making the eccentric shaft under the lead of the motor do rotatory movement according to the demanded speed rate; the dynamic jaw head propelled by the eccentric shaft’s eccentric force makes regular fixed track compressive movement to break the materials.
Characters-: Large stone crusher equipment
1.Feeding Granularity is big;breaking ratio is big;Outturn is large.
2.The operation is stable and reliable,fixed with over-loading protective device.
3.The energy consumption is low,the wearing parts are little,the maintenance cost is low.
4. The adjusting parts are reinforced emphatically and finish machining,reducing repair frequence.
5.The axle bearing adopts with labyrinth seall,prolonging its operation life.
6.Using modules lubrication ,which is easier and more convenient for the maintenance.
7.The belt pulley adopts new locking craft,keyless connection,making maintenance more convenient.
Applicability- Large stone crusher equipment :
1.Widely applied to all sorts of ore,rock ,etc., the breaking compressive stength not exceeding 320Mpa.
2.Being widely used in mine,metallurgy,roads&bridges,building materials,water conservancy and chemical industry,etc.
Specifications- Large stone crusher equipment :
MODEL |
Max. Feed Size (mm) |
Discharge Size (mm) |
Capacity (t/h) |
Motor power (KW) |
PE-400X600 |
≤340 |
40-90 |
15-40 |
30 |
PE-500X750 |
≤420 |
50-100 |
20-52 |
55 |
PE-500X750 |
≤480 |
50-110 |
20-80 |
55 |
PE-600X900 |
≤520 |
65-130 |
50-150 |
75 |
PE-700X1000 |
≤600 |
70-140 |
80-170 |
90 |
PE-750X1060 |
≤630 |
80-140 |
100-180 |
110 |
PE-800X1100 |
≤700 |
100-200 |
120-230 |
110 |
PE-900X1100 |
≤800 |
100-200 |
130-250 |
132 |
PE-900X1200 |
≤800 |
100-230 |
180-280 |
132 |
PE-1000X1200 |
≤900 |
140-250 |
200-400 |
132 |
PE-1100X1300 |
≤1000 |
170-280 |
300-600 |
160 |
PE-1200X1500 |
≤1100 |
180-300 |
400-800 |
160 |
Remarks: The above datas is just for your reference. With the development of technology and our products,there will be some improvement to adjust the market.
