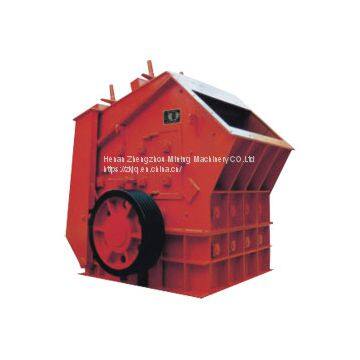

Impact Crusher

FOB Price

Negotiable / Set

1 Set(Min.Order)

Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	zk	Place of Origin	China
Model Number	zkcorp	Type	Cone Crusher
Certification	iso ce	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1year	Weight	>6t
Dimension(LWH)	15-550(t/h	Condition	New
Motor Type	AC Motor	Capacity(t/h)	15-550(t/h

Product Description

Capacity : 15-550(t/h)

Inlet size: 400x730-830x2050(mm)

Max feed size: 300-950(mm)

application: Stone crushing,Ore dressing

PF Series Impact Crusher is mainly used in secondary crushing, and can crush material o f crushing compression strength no more than 320 Maps. It is suitable to produce high rank highway, hydroelectric and building material and such industry as stone.

OUR ADVANTAGE

Large feeding port and high crushing cavity, suitable to crushing the material with high hardness and big grain size, and less powder.

The gap between impact plate and hammer plate is adjustable, so the discharging grain size can be effective control and the grain shape is well.

The hammer, impact plate and lining plate are made of new type abrasion-proof material with long working life and impact protection, wear protection.

Because of the function of three-stage crushing and plastic, so the crushing ratio is high, and the product shape is cube and can optional crushing.

The multi-function hydraulic station has many function of hydraulic discharge gap with high speed, impact plate stable vibration and the body open automatically.

Impact Crusher is one kind of equipment to crushing the brittle material which compression strength no more than 350 Map, the advantage including high crushing ratio, uniform product grain and low over crushing, low energy consumption, high adjustment range of product grain size and optional crushing etc, which is mainly used in mine, metallurgy, cement, construction material, coal etc for secondary crushing and fine crushing the medium hardness material.

Application of Impact Crusher: Metallurgy, construction material, mine, beneficiation and large block material crushing.

Applicable Materials: Dealing with the material with the side length 500mm, not more than 320Mpa anti-pressure strength

Model	Specification	Inlet size (mm)	Max feeding size (mm)	Capacity (t/h)	Power (kW)	Boundary size (mm)	Weight (t)
Model	Specification	Inlet size (mm)	Max feeding size (mm)	Capacity (t/h)	Power (kW)	Boundary size (mm)	Weight (t)
PF-0807	φ850×700	400×730	300	15～30	30～45	2210×1490×2670	8.1
PF-1007	φ1000×700	400×730	300	30～50	37～55	2400×1558×2670	9.5
PF-1010	φ1000×1050	400×1080	350	50～80	55～75	2400×2250×2820	12.2
PF-1210	φ1250×1050	400×1080	350	70～120	110～132	2690×2338×2890	14.9
PF-1214	φ1250×1400	400×1430	350	130～180	132～160	2690×2688×2890	18.6
PF-1310	φ1300×1050	490×1170	400	80～140	110～160	2780×2478×2855	16.2
PF-1315	φ1320×1500	860×1520	500	160～250	180～260	3096×3273×3067	19.3
PF-1415	φ1450×1500	1145×1520	950	220～450	220～315	3745×3022×3519	27.0
PF-1520	φ1520×2000	830×2050	700	300～550	315～440	3581×3560×3865	36.5

Impact crusher is mainly compose of the rack, driving system, rotor, hammer and impact plate etc. The main feature including:
1.Rack: It composed by two parts of upper and lower with connection by bolt. All the parts contact the crushed material in the rack have set replaceable lining plate.

2.Driving System: The main shaft and rotor are driving by motor through belt then doing the high speed rotary motion.

3.Rotor: It adopts entire cast steel structure with high mass force, solid and durable, convenient to install the hammer.

4.Impact Plate: It is made from new type abrasion material and hanging freely inside the equipment. One end connect with the two sides of the rack through hanging shaft hinge, another end is bearing in the upper rack cone gasket through stay bolt which is adopt a sphere gasket, it can prevent the equipment damage by non-crushing material when crushing material.

5.Hammer: It is made from new type abrasion material and fixed on the rotor through wedge block

If you want to know more,please contact me.
