20-50tpd Sunflower Oil Extraction Machine for Making Sunflower Oil in Oil Mill Plant

Product Description

20-50tpd sunflower oil extraction machine for making sunflower oil in oil mill plant

The whole sunflower oil extraction machine () contains three workshops: sunflower seed oil pretreatment and pressing machine, sunflower seed oil solvent extraction machine and sunflower seed oil refining machine. You can purchase a single sunflower oil press machine or build your own sunflower oil processing plant (/product/Sunflower_oil_production/sunflower_oil_production_line_26.html) of whole line.

Sunflower oil pretreatment machine and oil presser

The  simple processing of oil pretreatment includes pressing, high  temperature pressing, cold pressing (less than 70 degrees) etc.

1.  Formal oil pressing can adopt one time or twice pressing of oil seeds.  It is applicable for low capacity required oil processing oil plant.
2.  High capacity oil seeds pretreatment and oil pressing equipped with oil  extraction treatment, is used in high capacity and large-scale oil  pressing plant, or high oil content oilseeds processing plant.
3.  Oil prepressing can get up 70% oil fat of embryo, and residual oil  inside pre-pressed cake can be extracted by organic solvent.

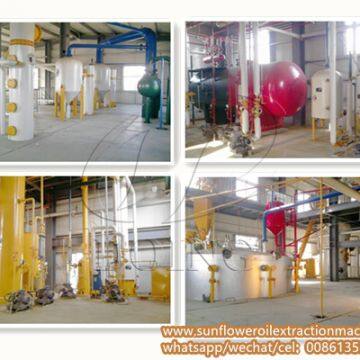

Sunflower oil solvent extraction plant and working process

Requirements for extraction cake, steam, water, electricity etc:

1. Moisture of extraction material: 5-8%;

2. Temperature of extraction material: 50-55°C;

3. Oil content of extraction material:14-18%;

4. Thickness of extraction cake: less than 13mm;

5. Powder porosity of extraction material: less than 15% (30 mesh);

6. Steam: more than 0.6Mpa;

7. Solvent: national standard No. 6 solvent oil;

8. Electric power: 50HZ 3*380V±10%

    Electric lighting: 50HZ 220V ±10%;

9. Tempreture of supplement water: less than 25°C,

    Hardness: less than 10.

10. Volume of supplement water: 1-2m/t raw material;

11. Temperature of recycle water: less than 32°C.

Sunflower oil refining processing flow chart

Main Process of sunflower oil refinery plant:

Crude oil → degumming and deacidification→ decolorization →deodorization → refined oil

1. Degumming and deacidification: The gumming is moved by phosphoric acid and hot water. There are two ways to move the acid in the crude cooking oil.

2. Decolorization: This step is used to adjust the color of the oil. You can control the color of the cooking oil according to the requirement of your market.

3. Deodorization: The function of this step is to move the special smell in the oil.This is an important standard for refined cooking oil.

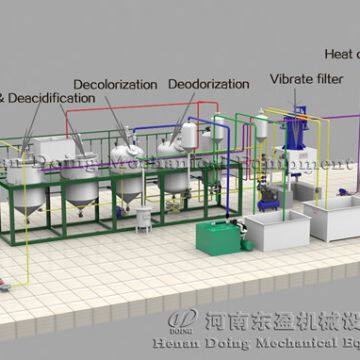

1-10tpd sunflower oil refienry plant 3D picture


The specification of crude oil

The specification of refined oil

Certifications

Henan Doing Mechanical Equipment Co.,LTD is one of the leading manufacturers of oil processing equipment in  China. Our compnay service includes: technology design, installation and  commissioning, technical training, relocation of oil plant, technology  reform and turnkey project

mainly  engaged in oil press machine, oil seed pretreatment &pressing  plant, solvent extraction plant, oil refining refinery plant for  different oil seed. Such as sunflower, peanut, soybean, cottonseed, palm  fruit, palm kernel, sesame, rapeseed, corn germ and so on.
Our  products have gained many achievements and awards. And we have  installed cooking oil projects in more than 20 countries all over the  world, such as Malaysia, Indonesia, Nigeria, Liberia, Thailand, Congo,  Zambia, Uzbekistan.

Packaging & Shipping

Small parts will be packed by wooden case , large parts will be covered by cotton cloth.

Company Information

This  is our Doing Company's factory, which is in Wuzhi, Jiaozuo, Henan  province, around Zhengzhou. Our company is in 14th Floor, Building 9,  Jincheng Times Square, Zhengzhou, Henan, China. We can produce the whole  set, including oil press machine, oil extraction machine and oil  refining machine. Our oil machine have been exported to more than 20  countries and regions, like Italy, Turkey, Congo, Uganda, Nigeria,  India, Pakistan, Thailand, Malaysia, Bangladesh, etc.

FAQ

1.What machine we can manufacture?

Cooking oil making machine:10-2000MT per day .

Solvent extraction machine: 10-1000MT per day.

Edible oil refinery plant : 1-600MT per day.

Palm oil processing machine: 1-600MT per day.

2.What kinds oil seeds we can process ?

Peanut, sunflower seeds, corn germ, cotton seeds, soybean, rapeseeds, rice bran etc. And various oil cakes can be leached .

3.Why chose our DOING Company?

A. 40 years manufacturing experience.

B. 26 technical engineers research new efficient processing craft and instruct manufacturing and installation.

C. 76 technicians - professional installation team -with rich and mature  installation  and training experience.
