Customized Small Precision Positioning Servo Electric Cylinder Economical Lift No Maintenance Linear Actuator

DGR-EC-65 No Maintenance Linear Actuator Model designations:

DGR-EC-65  No Maintenance Linear Actuator Technical Data:

Note:

1. If you need to know the ball screw life, please contact customer service for detailed consultation;

2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.

3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

DGR-EC-65  Economical Lift Servo Electric Actuator  Motor Selection List

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;

3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;

4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

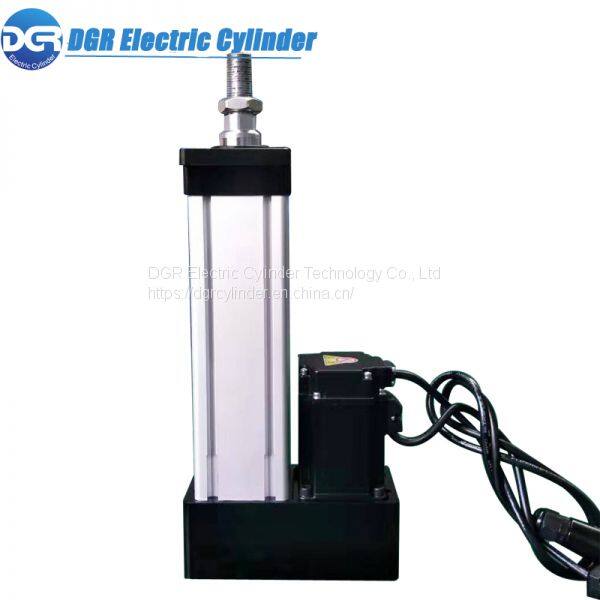

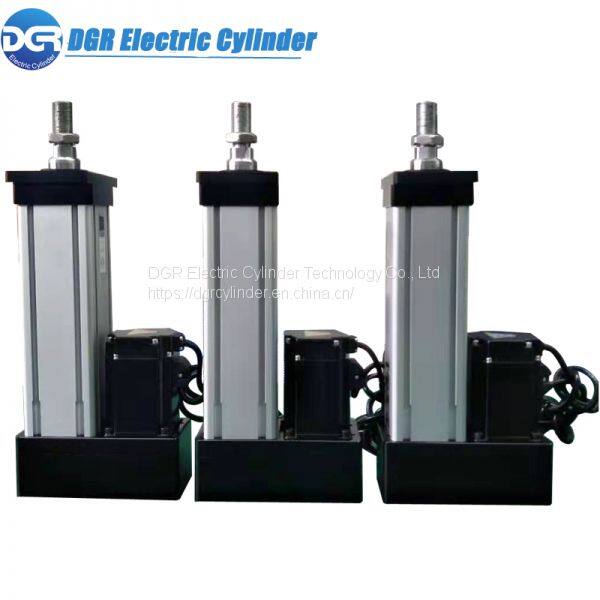

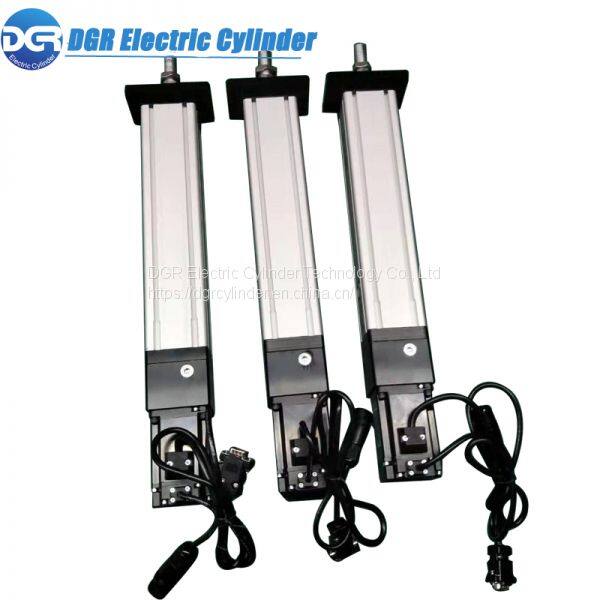

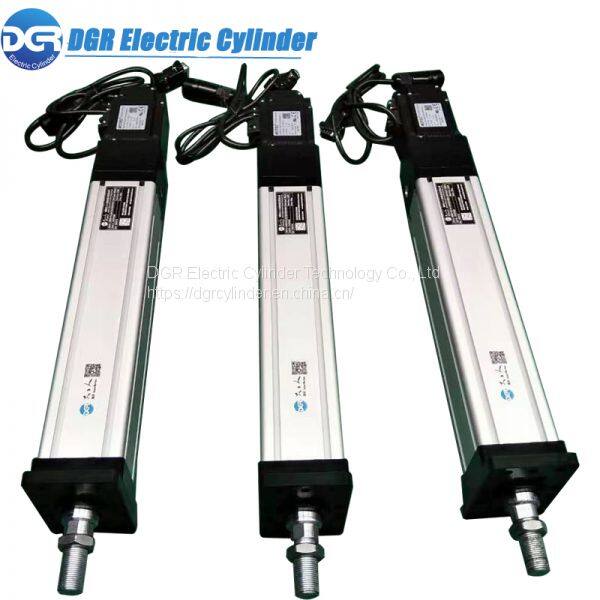

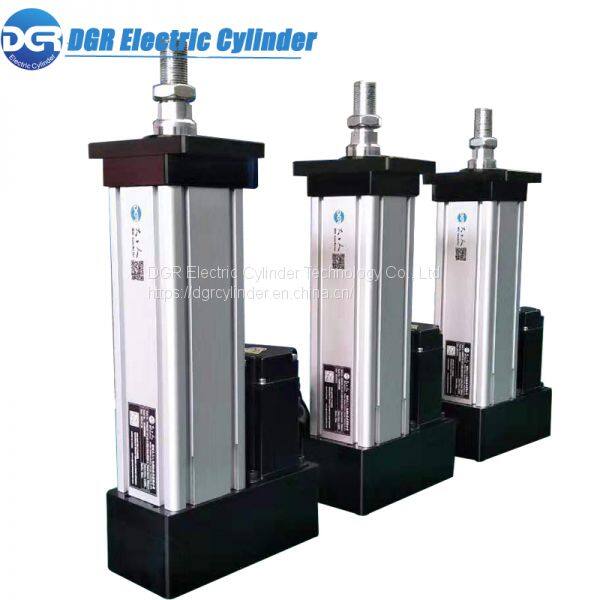

 No Maintenance Linear Actuator Products Show

Features of DGREC65  Economical Lift Servo Electric Actuator

High Accuracy

High precision, repeatability up to 0.01mm.

High Reliability

Highly reliable, safety factor>2 ( PS: safety factor for key parts > 4), which is in compliance with metallurgical standard.

Long Life

Run over a distance of 100,000km

Wide Thrust Range

Select famous-branded roller ball screws, ball screws and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.

Careful Material Selection

1. Select aluminum alloy as the cylinder material, which is compact and beautiful.

2. Select sensor components of internationally famous brands .

3. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure

Refined Design and Processing

1. The connection between the screw nut and the piston rod is rigid

2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

3. Electric cylinder comes with anti-rotation mechanism by default

4. Professional machining processing equipment minimizes the cost.

5. 5. Servo electric cylinders work in complex environments only require regular grease lubrication. No consumable parts need maintenance and replacement, which will reduce the cost of after-sales service compared with hydraulic system and pneumatic system.

6. Very flexible mounting configuration, full range of mounting components:mounting front flange, rear flange, side flange,Rear Clevis, trunnion mounting, etc.

Duty Cycle

Electric cylinders can work continuously, with high strength, high speed, high precision positioning, smooth motion and low noise.

Complete Testing

Professional factory inspection: including appearance, repeatable positioning accuracy, speed, thrust, noise decibels, etc.

Excellent Service

1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)

2. DGR Electric cylinder can be custom engineered for customer’s particular application.

3. Can be customized according to customer requirements

4. All customer requests will be responded within 12 hours

Wide Selection of Motors

1. A variety of AC servo motors or stepper motors for option

Motor comes with brake to ensure secure operation.

	Entertainment Six degrees of freedom motion platform  widely used in a variety of simulation,  entertainment equipment, robotic arms, dynamic seats in movie theaters.
VR Simulations Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
	Automobile industry  Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management.Widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
3D Robotic Billboard The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
	Automation Industry The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
Solar Tracking Systems The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc.
