Help CenterFactory Direct on Board Battery Charger 96v
Related Products
-
1.2KW 72V AC DC on Board ChargerUS$ 73 - 75MOQ: 50 Pieces -
1300W 36v Low Speed Veichles on Board ChargerUS$ 102 - 105MOQ: 50 Pieces
-
360V 3.3KW EV on Board ChargerUS$ 295 - 300MOQ: 20 Pieces
-
1.2KW Series 48V AC DC ChargerUS$ 80 - 85MOQ: 50 Pieces
-
Factory Direct on Board Charger for Electric Forklift, Sightseeing Car, BikeUS$ 120 - 130MOQ: 50 Pieces
Product introduction and application areas

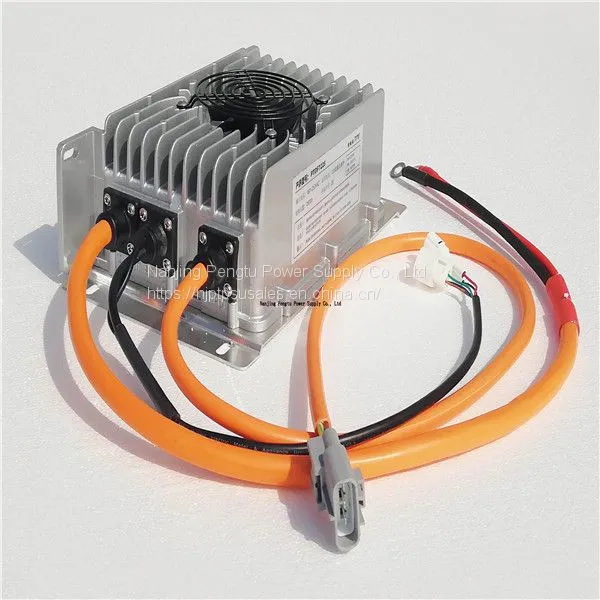

Factory Direct on board battery charger 96v are designed with integrated die-casting structure.They are suitable for flooded lead-acid batteries,sealed(colloidal)lead-acid batteries,lithium batteries,nickel-metal hydride batteries,nickel-cadmium batteries,etc.They can be used to cycling charge and floating charge the battery in electric car,electric motorcycle,sightseeing car,patrol car,forklift,communication,electric power,ship,etc.
Technical parameters
.Ac input voltage range:180-260VAC;45-65HZ
.AC max input current:12A @220VAC
.Power factor:≥0.98
.Max Efficiency:93%(Full Load)
.Noise:≤55dB
.Protection grade:IP67
.Working temperature:-30℃~＋55℃
.Storage temperature:-40℃~＋95℃
Optional advanced configuration
.Can be with CAN bus;
.Optional low pressure auxiliary 12v;
.Can be connected with three-color indicator light;
.Charging lock function(The vehicle power system can be locked through the relay during charging process);
.Can add CC, CP to meet the charging needs of various occasions;
.Optional national standard, European standard charging pile communication protocol.
Product specifications
.Dimensions:282*168*94.5mm
.Net weight:4.5kg
Multiple protection
.Output over current protection .Input over voltage protection
.Output over voltage protection .Input under voltage protection
.Output short circuit protection .Over temperature protection
.Output no-load protection .Fully charge automatic shutdown
.Output reverse connection protection .CAN failure protection
Mechanical Size&Model selection
Item |
Battery Rated Voltage |
Max Output Voltage |
Max output current |
PA2K0M24FM50 |
24V |
34V |
50A |
PA2K0M48FM30 |
48V |
68V |
30A |
PA2K0M60FM30 |
60V |
85V |
30A |
PA2K0M72FM50 |
72V |
102V |
25A |
PA2K0M96FM20 |
96V |
136V |
20A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
