Product introduction and application areas
Factory direct on board charger for electric forklift, sightseeing car, bike. 1.3KW series on board chargers are designed with integrated die-casting structure.They are suitable for flooded lead-acid batteries,sealed(colloidal)lead-acid batteries,lithium batteries,nickel-metal hydride batteries,nickel-cadmium batteries,etc.They can be used to cycling charge and floating charge the battery in electric car,electric motorcycle,sightseeing car,patrol car,forklift,communication,electric power,ship,etc.
Technical parameters
.Ac input voltage range:180-260VAC;45-65HZ
.AC max input current:6A 220VAC
.Power factor:≥0.98
.Max Efficiency:93%(Full Load)
.Noise:≤45dB
.Protection grade:IP67
.Working temperature:-30℃~＋55℃
.Storage temperature:-40℃~＋95℃
Optional advanced configuration
.Can be with CAN bus;
.Can be connected with three-color indicator light;
.Charging lock function(The vehicle power system can be locked through the relay during charging process);
.Meet the requirements for various occasions.
Product specifications
.Dimensions:280*132*83mm
.Net weight:3.0kg
Multiple protection
.Output over current protection .Input over voltage protection
.Output over voltage protection .Input under voltage protection
.Output short circuit protection .Over temperature protection
.Output no-load protection .Fully charge automatic shutdown
.Output reverse connection protection .CAN failure protection

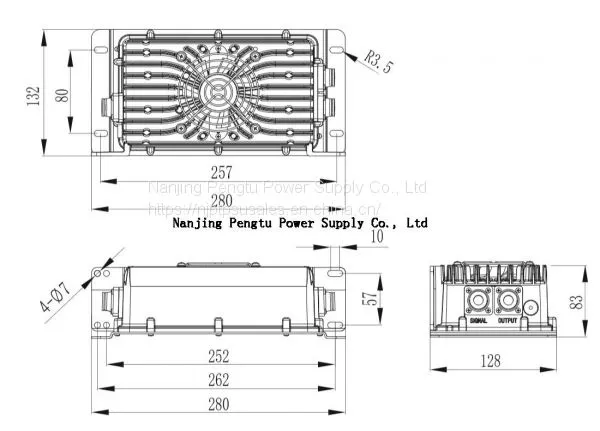

Mechanical Size&Model selection
Item |
Battery Rated Voltage |
Max Output Voltage |
Max output current |
PA1K3M24FM30 |
24V |
34V |
30A |
PA1K3M36FM30 |
36V |
51V |
30A |
PA1K3M48FM20 |
48V |
68V |
20A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
