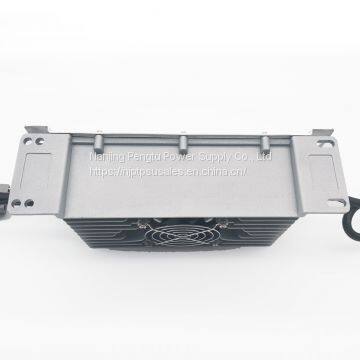

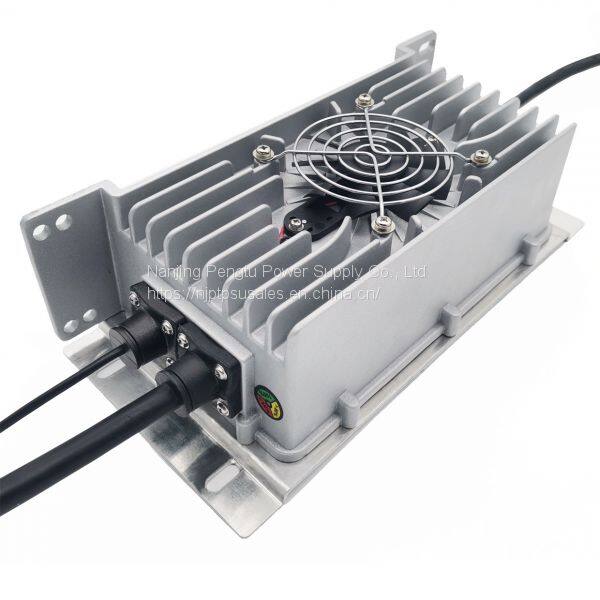

1.3kw Series 36V30A on Board Charger

Product introduction and application areas

1.3kw series 36V30A on board charger.They are suitable for flooded lead-acid batteries,sealed(colloidal)lead-acid batteries,lithium batteries,nickel-metal hydride batteries,nickel-cadmium batteries,etc.They can be used to cycling charge and floating charge the battery in electric car,electric motorcycle,sightseeing car,patrol car,forklift,communication,electric power,ship,etc.

Technical parameters

.Ac input voltage range:180-260VAC;45-65HZ

.AC max input current:6A 220VAC

.Power factor:≥0.98

.Max Efficiency:93%(Full Load)

.Noise:≤45dB

.Protection grade:IP67

.Working temperature:-30℃~＋55℃

.Storage temperature:-40℃~＋95℃

Optional advanced configuration

.Can be with CAN bus;

.Can be connected with three-color indicator light;

.Charging lock function(The vehicle power system can be locked through the relay during charging process);

.Meet the requirements for various occasions.

Product specifications

.Dimensions:280*132*83mm

.Net weight:3.0kg

Multiple protection

.Output over current protection  .Input over voltage protection

.Output over voltage protection   .Input under voltage protection

.Output short circuit protection   .Over temperature protection

.Output no-load protection       .Fully charge automatic shutdown

.Output reverse connection protection   .CAN failure protection

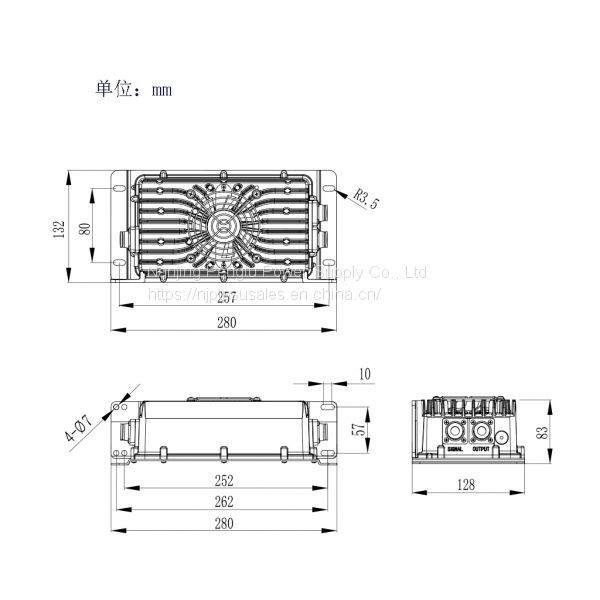

Mechanical Size&Model selection

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
