Product Description
1. Designed for thermal production oil well.
2.Good performance of seal and compensation, can expand or shrink according to the temperature changing.
3. Easy operation and maintain
The packer comprises a compensation pipe, where in one end of the compensation pipe is mutually connected with an over, and a lower joint is connected at the other end of the compensation pipe; the packer is arranged on the compensation pipe. After installation, you can seal the space between the tubing string and the casing, so that high-temperature hot steam directly into the formation; prevent gas went on more parts, thereby protecting the well casing, improve the efficiency of steam injection.
The specifications and main parameters
| Type | K331-142 | K331-152 | K331-205 |
| Length(mm) | 4700 | 4760 | 4760 |
| Max OD (mm) | 142 | 152 | 205 |
| Min ID(mm) | 62 | 62 | 76 |
| Working tempareature(°C) | 350 | 350 | 350 |
| Working pressure (MPa) | 17 | 17 | 17 |
| Sealing temperature (°C) | 250 | 250 | 250 |
| Connection threads | Up:2-7/8NUE down:2-7/8"NUE | Up:4-1/2"BCSG,Down:2-7/8NUE | Up:4-1/2"BCSG,Down:2-7/8"NUE |

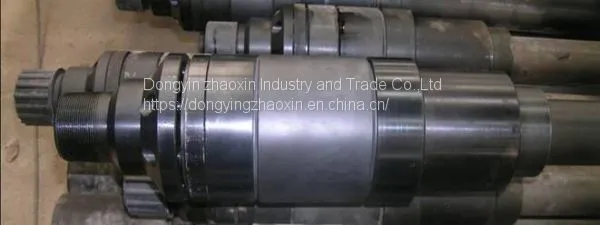

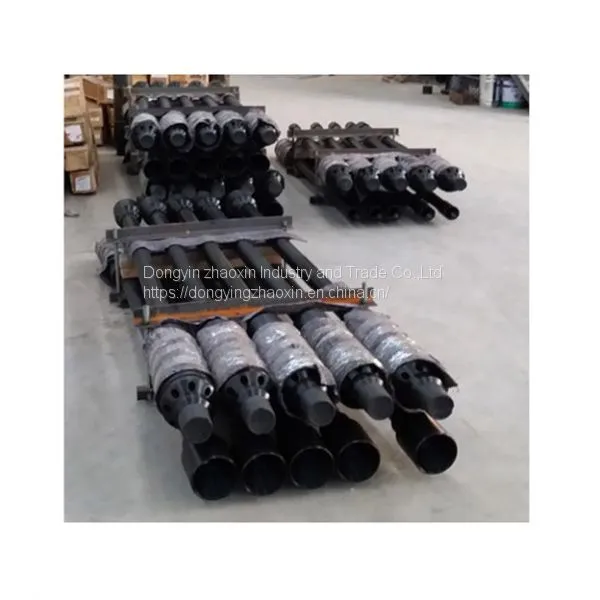

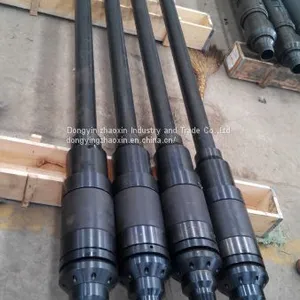

Product show :
Company Information
Our Services
For more information, you can contact me :
Contact person : Alisa Ma
Mob : +86-13706368719
Looking forward to cooperating with you!
