API 11D1 RTTS packer for oilfield

Name: API 11D1 RTTS packer for oilfield
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Tianjin or Qingdao or as client's requirement
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Products Description

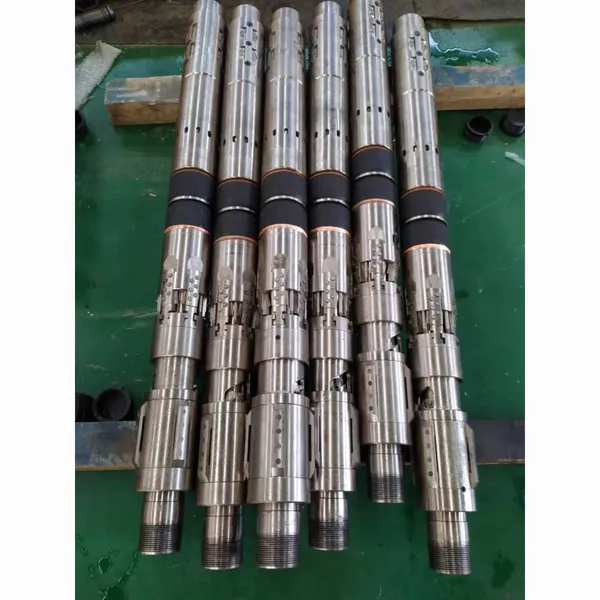

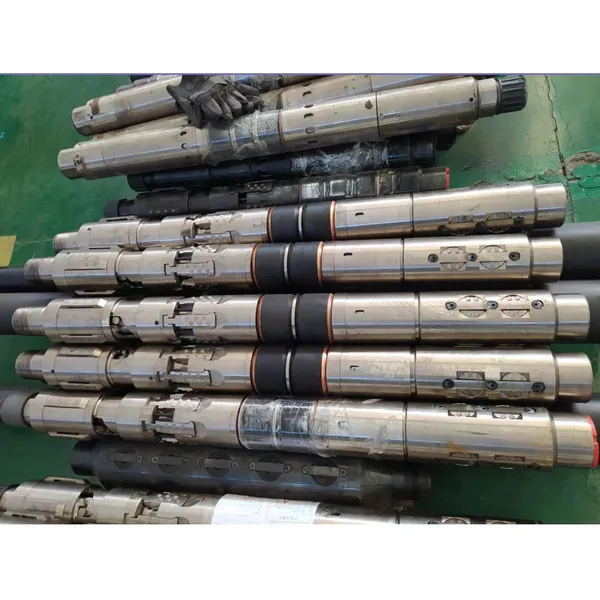

 The RTTS packer is a full-opening, hook wall packer used for testing, treating, and squeeze cementing operations. In most cases,he tool runs with a circulating valve assembly.
The packer body includes a J-slot mechanism, mechanical slips, packer elements,
and hydraulic slips. Large, heavy-duty slips in the hydraulic hold down mechanism
help prevent the tool from being pumped up the hole. Automatic J-slot sleeves are standard
equipment on all packer bodies.

Features

1. Full-opening design of the packer mandrel bore allows large volumes of fluid to pump through the tool. 2. Can be set and relocated as many times as necessary with simple tubing manipulation. 3. Tungsten carbide slips provide greater holding ability and improved wear resistance in high-strength casing. 4. Optional integral circulating valve locks into open or closed position during squeezing or treating operations and opens easily to allow circulation above the packer

Specification

Specifications	5″	5 1/2″	7″	9 5/8″
OD(mm)	103	115.6	151.1	207.8
ID(mm)	45	48	61	101
Length(mm)	1226	1232	1380	2088
Working pressure(Mpa)	70	70P	70	70
Working pressure(℃)	-29℃~+177℃	-29℃~+177℃	-29℃~+177℃	-29℃~+177℃
