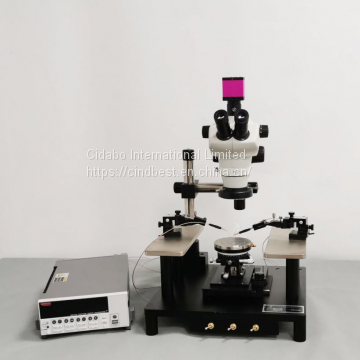

MINI probe station,CINDBEST CM-4
- 10 Set / Sets per Month
- T/T
You May Like
Product Details
| Brand Name | CINDBEST | Place of Origin | China | |
| Model Number | CM-4 |
Product Description
CINDBEST CM-4 | 4" platform for basic I-V/C-V measurements.
FEATURES / APPLICATION
l Meet the I-V/C-V, PIV Tests Optoelectronic Tests; ,etc. l Up to 6 inch wafer test l procision lead screw drive structure, linear movement l Can be placed in the glove box for use l The shape is light, the operation is convenient, and the price is affordable. | |
Specifications
Chuck Stage
Diameter | 4"/6" |
Rotation angle | 360° , fine adjust 15 degrees, precision 0.1 degrees, with angle locking device |
X-Y travel range | 2"*3" |
Moving precision | 10μm |
Z Travel Range | 10mm |
Sample fixde mode | Vacuum adsorption |
U Shape | 6 Micropositioners available |
Electrical design | Electrical Floating with Banana plug adapter, can be used as a backside electrode |
Dimension | 400mmL*380mmW*500mmH |
Weight (about) | 20KG |
Stereo Microscope
Magnification | 16~100X (200X as a option) |
Moving range | 360° Rotation， Z : 50.8 mm |
illuminant | External LED non-polar adjustable brightness ring light source |
CCD Pixel | 200W Pixel / 500W Pixel / 1200W Pixel |
Micropositioner
X-Y-Z Moving range | 12mm-12mm-12mm |
Adsorption mode | magnetic adsorption/ vacuum adsorption |
Mechanical resolution | 10um / 2um / 0.7um/0.5um |
Current leakage accuracy | 10pA / 100fA (with Shielding Box） |
Cable connectors | BNC/Banana head / Crocodile clip / Coaxial / Triaxial |
Point Radius(in microns) | 0.2um/1um/2um/5um/10um/20um |
Needle tip material | Tungsten steel/beryllium copper |
Optional Accessories
Hot chuck |
Shielding box |
Display screen |
Gold plated Chuck |
Special Adapter |
Vibration Free Table |
RF Testing accessoriess |
Light intensity / wavelength testing |
PS:Probe stations can be customized to customer requirements.
Specifications and designs are subject to change without notice.
