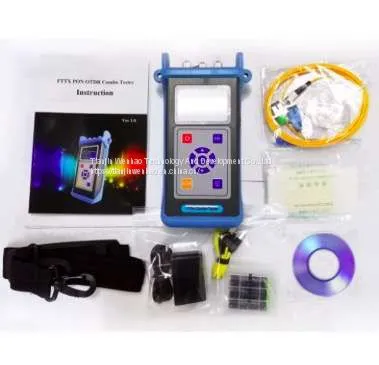

TWH-6118 FTTH PON OTDR Combo Tester
- 9999 Set / Sets per Month
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | tianjinwenhao | Place of Origin: | China | Model Number: | 6118 |
Product Description
•Smallest and lightest •Removable three AAA rechargeable batteries for three alkaline AAA batteries • It can also be powered by the charging port via the USB interface. •Fast and accurate detection, loss, breakpoint, macro bend, reflection, etc. •Can be measured online without the need to break the light signal. •Can pass through 64 optical splitters. •Data storage and export for easy post-archiving. •The PON OTDR is integrated with OPM and VFL. •One-button measurement, automatic voltage control, automatic adjustment of pulse width without complicated settings.
PON OTDR function:
1. can be measured online, under the premise of continuous optical signal.
2. N=2/4/8/16/32/64 in the optical splitter.
3. the maximum value of N * N = 64 (passable 64 optical splitter).
4. Accurate positioning of loss, breakpoint, macro bend and reflection events.
5. test distance: 1, 6Km (over 64 splitters). 2, 30Km. 3, 50Km.
6. data storage and export.
OPM (Optical Power Meter) function:
1. Multi-wavelength measurement: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm.
2. Power measurement range: -70~+6dBm or -50~+26dBm.
3, a variety of unit selection: dB dBm mW uW nW
VFL function:
1. Built-in high-performance laser chip, strong light source, good penetration effect, stable and durable.
2. Applicable to a variety of interface fiber types: FC / ST / SC.
3. Always light or flash mode selection.
4. The power supply system is shared with the whole machine, and the long-term applicable event
