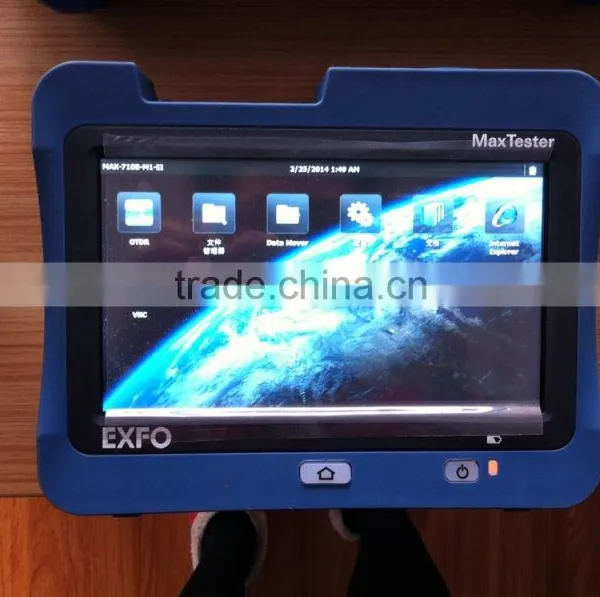

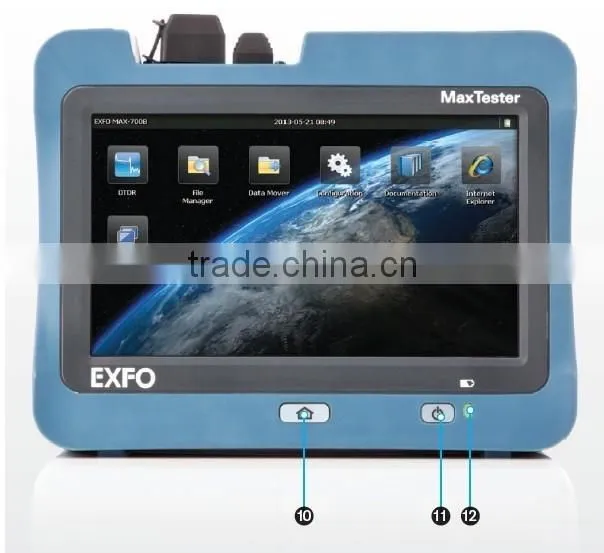

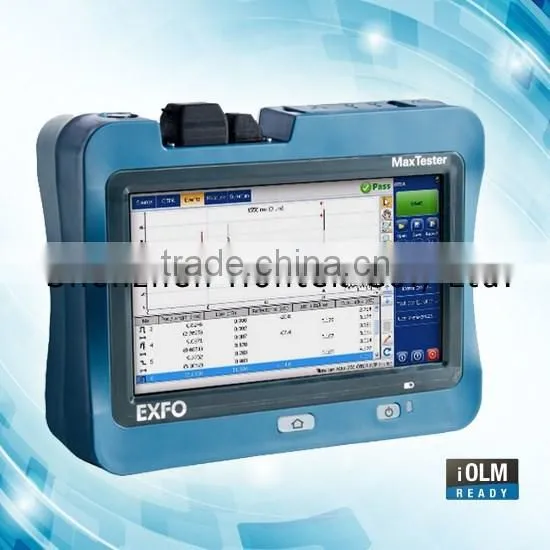

MAXTESTER 730B 1310/1550nm
and 1625nm
Fax: 0086-755-33503470
Skype:kitty.hsv
Application
FTTx last-mile installation and troubleshooting
Short access network testing
FTTA-fi ber DAS installations
CATV/HFC network testing
Specfication
TECHNICAL SPECIFICATIONS |
MAXTESTER 730B |
Display |
Two USB 2.0 ports |
Storage |
2 GB internal memory (20 000 OTDR traces, typical) |
Batteries |
Rechargeable lithium-polymer battery |
Power supply |
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
Wavelength |
1310/1550nm and 1625nm |
Dynamic range |
39/37/37dB |
Event dead zone |
1m |
Attenuation dead zone |
4m |
Distance range |
0.1 to 160 km |
Pulse width |
5 ns to 20 us |
Linearity |
±0.05dB |
Loss threshold |
0.01dB |
Loss resolution |
0.001dB |
Sampling resolution |
0.04 to 5m |
Sampling points |
Up to 256 000 |

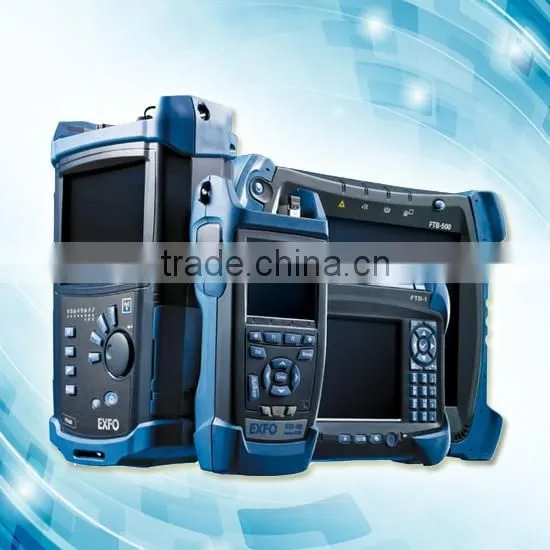

EXFO Series

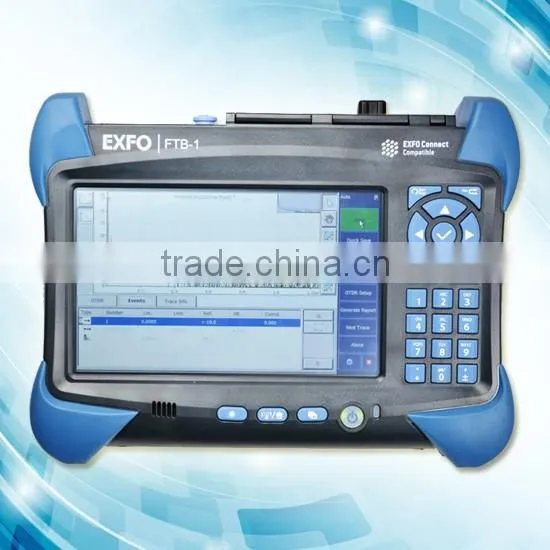

FTB-1
