Help CenterVFL Otdr Meter
Related Products
Specifications
1.VFL otdr meter2.USB port connect to PC
3.Color TFT LCD
4.Built-in VFL
Name of the product : VFL otdr meter
Key Features
l Convenient one-button testing
l High speed signal processing, less test time and fast analysis
l Color TFT LCD
l USB port connect to PC
l Input optical signal auto detection and self-protection
l Built-in VFL

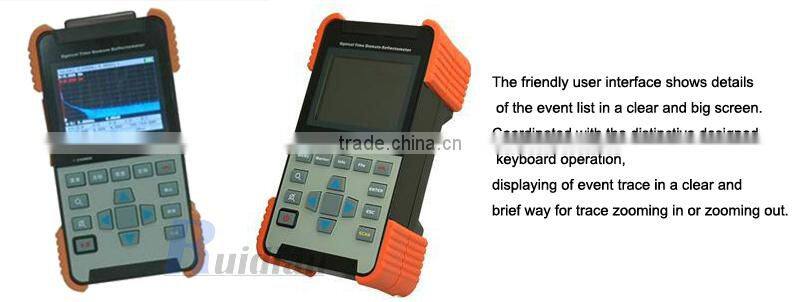

The friendly User Interface
The friendly user interface shows details of the event list in a clear and big screen.
Coordinated with the distinctive designed keyboard operation,
displaying of event trace in a clear and brief way for trace zooming in or zooming out.
Specification
AOR500-A |
AOR500-B |
|
Wavelength |
1310±20nm / 1550±20nm |
|
Dynamic Range |
28dB / 26dB |
32dB / 30dB |
Event Dead Zone |
< 1.5m |
|
Attenuation Dead Zone |
< 8.0m |
|
Pulse Width |
10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1.0us, 2.5us |
|
Distance uncertainty |
±(1.0m ± 0.005% * testing distance ± resolution) |
|
Linearity |
±0.05dB/ dB |
|
Loss Resolution |
0.001dB |
|
Distance Resolution |
1m |
|
Connector |
FC, SC |
|
VFL |
1mW |
|
Data Storage |
> 1000 traces (standard 1GB SD card) |
|
Display |
3.5 inch TFT color LCD |
|
Interface |
USB |
|
Battery |
Built-in rechargeable battery |
|
Working Time |
>10 hrs (Bellcore TR-NWT-001138) |
|
Operating Temp. |
-10 -- +40 °C, < 80%RH |
|
Storage Temp. |
-30 -- +60 °C, < 80%RH |
|
Net Weight |
0.9 Kg |
|
Dimension |
230mm×120mm×60mm |
|
Standard Accessories
OTDR |
1 |
AC/DC adapter |
1 |
Operation guide |
1 |
Carrying bag |
1 |
USB cable |
1 |
SD card |
1 |
Calibration certificate |
1 |
1) Welcome to order on the alibaba Wholesale Checkout Service,you can play order on line and pay,it's easy to do it.
2) For More Sport order,please contact us about your order with your demand and we give more competitive price to you and will send order invoice for you,after your confirm,and then make the payment,at last ship to you after the payment be confirmed.We keep big stocks every day!
3) OEM/ODM service available and custom designs are welcomed! We can offer you premium quality,competitive price,print your LOGO free ,Quality for your any request.
1) Sport order shipment time: we ship to you at 1-2 days (Depends on the Qty) after advanced payment received
2) Production time:7-15days with OEM order (Depends on the Qty) after advanced payment received
3) Shipping ways: ship by Fedex,DHL,UPS,TNT,EMS,Hong Kong Airmail Post,China Post Air and so on.
1) Escrow on line
2) Paypal
3) T/T ( Bank Transfer)
4) Western Union
5) Credit card
For Large quantity or OEM order service, 30% first, 70% balance before delivery.
we offer more buyer protection for you,so you don't worry about your order:
1) Full Refund if you don't receive your order
2) Refund or Keep items not as described
If you need VFL otdr meter ,please contact with me without hesitation.
