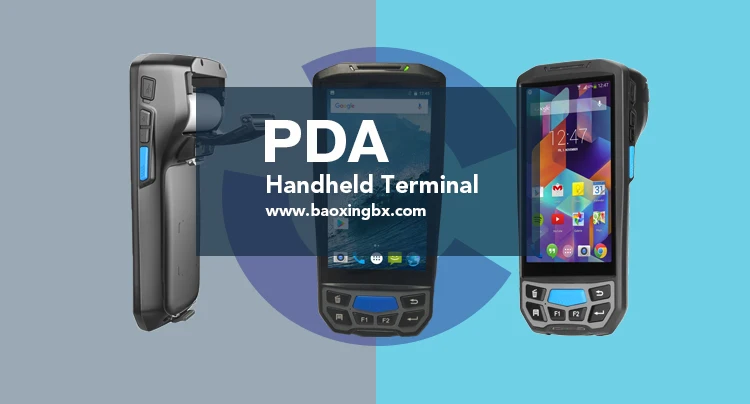

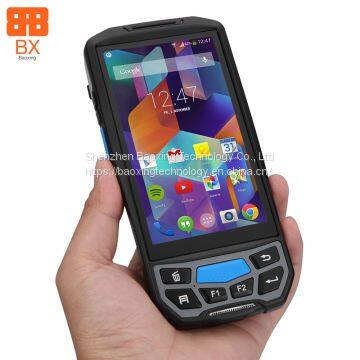

Help Center4G LTE Wifi Wireless Portable Rugged New Handheld POS Terminal With NFC Thermal Printer Barcode Scanner RFID Reader PDA
Related Products
-
BaoXing BX-U9100 Fingerprint Android7.0 1d2d Barcode Handheld Industrial Barcode Scanner Barcode Scanner Door LockUS$ 285 - 299MOQ: 1 Piece -
Android POS Handheld Data Terminal PDA Fingerprint Barcode Scanner With Mobile Printer Wireless Android Handheld Barcode ScannerUS$ 215 - 230MOQ: 1 Piece
-
Android 7.0 16G ROM+2G RAM 5 Inch Touch Screen Barcode Scanner qr Reader RFIDUS$ 245 - 260MOQ: 1 Piece
-
The Newest Handheld Android 2d Barcode Scanner Module High Performance BX T80 Scanner With BluetoothUS$ 200 - 225MOQ: 1 Piece
-
BX-S2000 2D Barcode Scanner Billing Machine 360 Degree Tera Barcode Scanner Barcode ScannerUS$ 13 - 16MOQ: 1 Piece
Our product is the best choice of hand-held terminal for enterprise users to collect data due to its classic Android APPs and aggressive
performance, which is usually applied in the fields including government & public affairs, financial management, ticket business,
traceability,medicare, healthcare,logistics,retailing stores and supermarkets,e-commerce payment etc.
| BX-U9300 | |||
| ITEM | No. | Standard | Price(USD/pcs) |
| Default | Android 7.0+ 58mm Thermal Printer + 2D Scanner + 2D RAM &16G RAM + 5.0 inch Screen + WIFI+ BT+ FDD/TDD- TLE4G+ GPS+ Phone+ camera 8M pixel. | $ | |
| OEM/ODM | U9300-01 | Default (58mm printer + 2D Scanner) | $ |
| U9300-02 | Default + NFC | $ | |
Phone / Whatapp:+86 198 6576 8682
Email:rachel(@)
| Structural Parameter | |
| Dimensions | 172mm(L) X 80mm(W) X 27mm(D) |
| Display Screen | 5.0 inch IPS 720 * 1280 px with Multi-point touch capactive screen |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface | USB2.0 Device |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 5000mAh |
| Frequency | 8ohm 1W speaker |

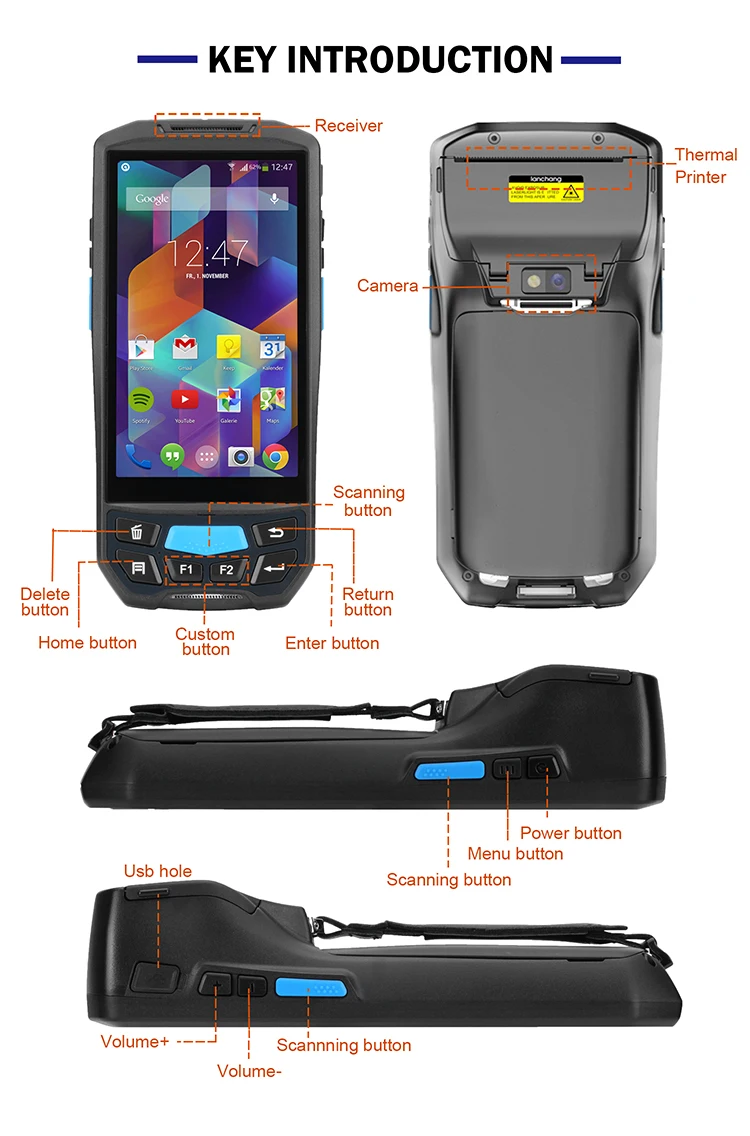

| Key | 13pcs soft silicon key |

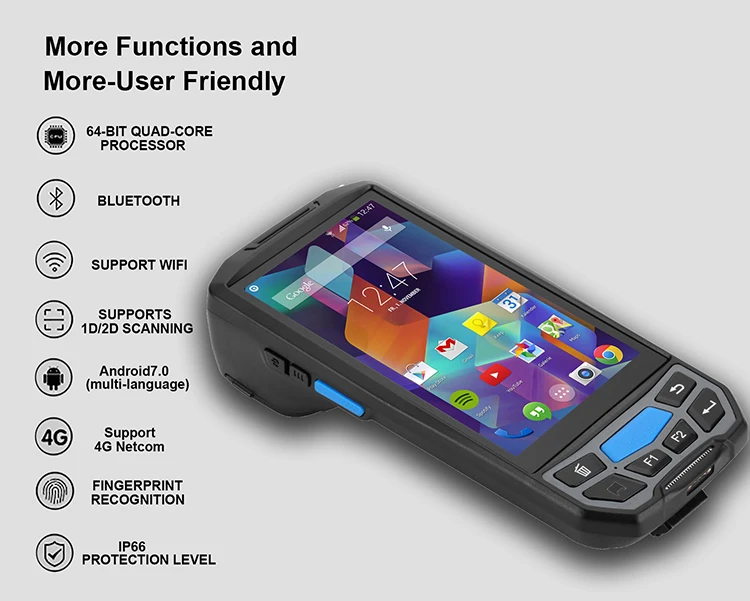

| Performance Parameter | |
| OS | Android 7.0 |
| CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage |
| micro SD/TF port (Max up to 32G) | |
| Data Communication | |
| WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
| FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
| WCDMA 3G | B1,B2,B5,B8 |
| GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
| Operating Environment | |

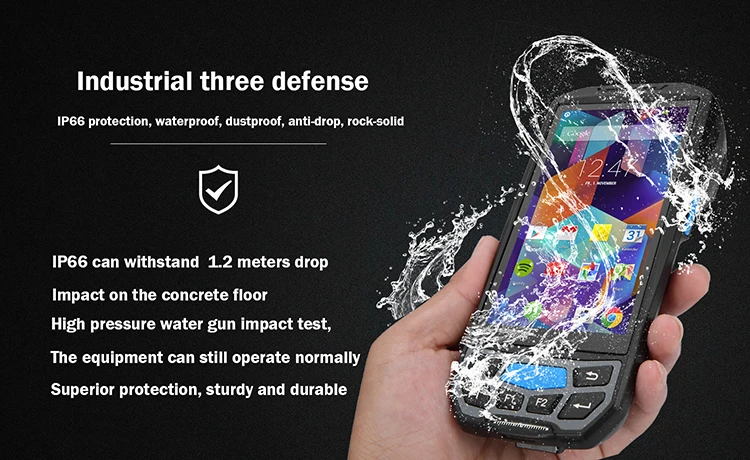

| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |

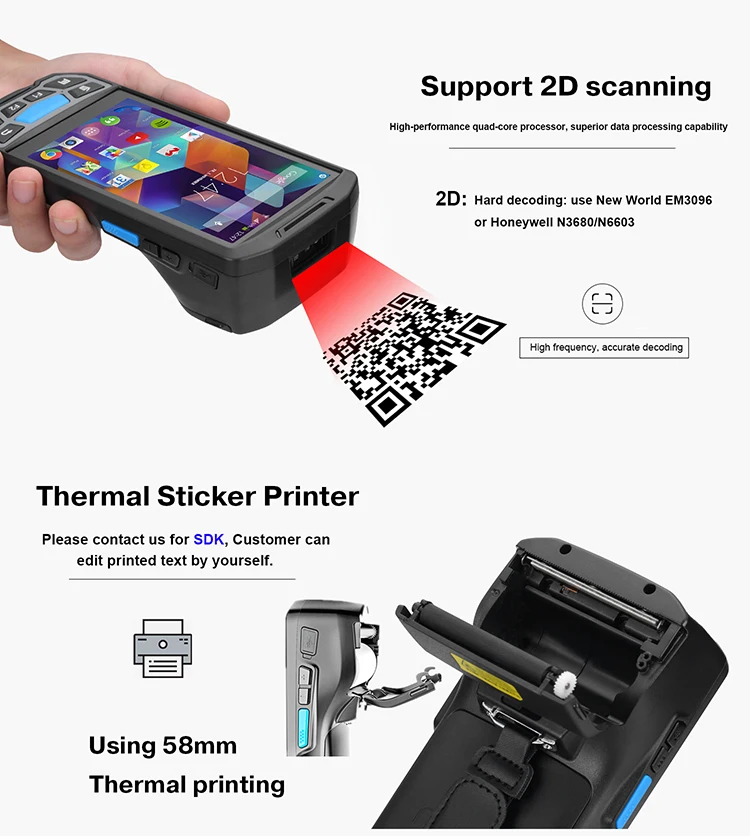

| 2D CMOS (OPTIONAL) | |
| CMOS Scanner | Honeywell N6603,NewLand 3096 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |

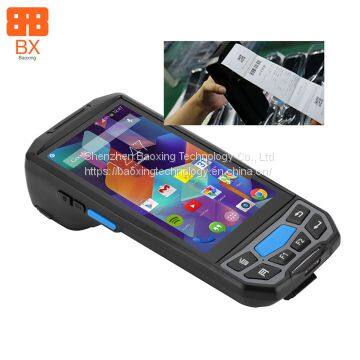

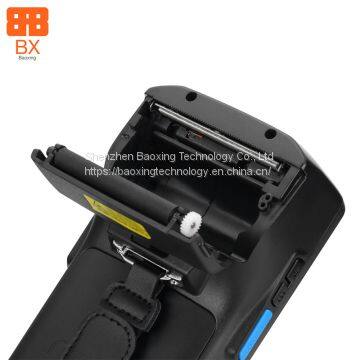

| Thermal Printer | 58mm printer |
| Biometric Fingerprint (Optional) | |
| Sensor | TCS2SS |
| Function | Enrollment, compare, deletion etc. |
| Resolution | 508DPI |
| Memory | 1,000 PCS fingerprints |
| NFC Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 18092 (ECMA 340) |
| Range | 2-4cm |
|
|
|
1. Are you PDA factory or trading company? We are PDA factory.
2. OEM/ODM is ok? yes, we have own factory and strong R&D to support OEM/ODM.
3. Payment Terms: T/T, western Union, paypal, L/C etc.
4. MOQ: 1PC
5. Delivery time: Sample will be ship in 3~5 days after receipt payment
6. warranty: 15 months without man-made damage from the shipment date for our all products (Excluded the consumable parts).
7. Shipping: by sea, by air, or express
8. Sample: sample for test is ok.
9. Visit factory: yes, it is ok, before visiting, please contact us.
10. About Discount: discount depends on your quantity, bulk order will in more cheap price.
11: Can buyers decide the express company that wil be used?
Yes. Buyers can choose the express company they prefer or cooperated with.
12: Can Buyers use their own couriers or shipping agents?
Yes, buyers can use their own shipping agents.
13: What's the lead time? (How long do you need to prepare my goods?
4-7days for sample orders. 15-40days for mass production orders (based on different quantities).
