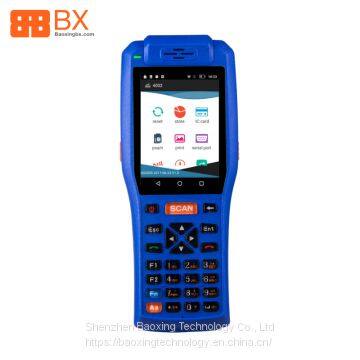

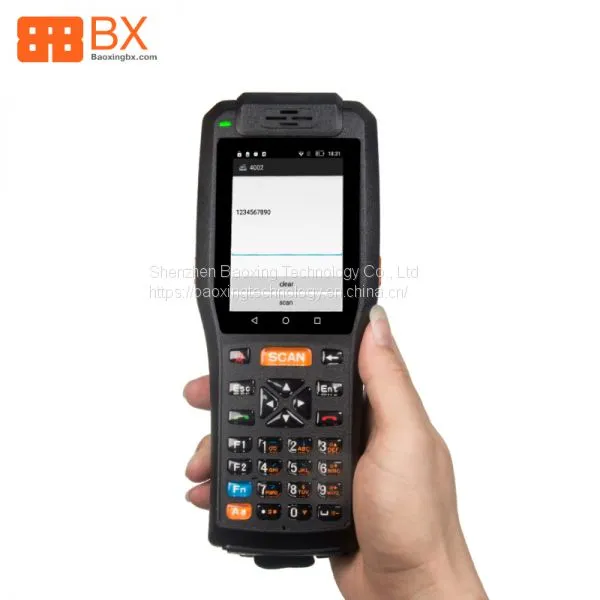

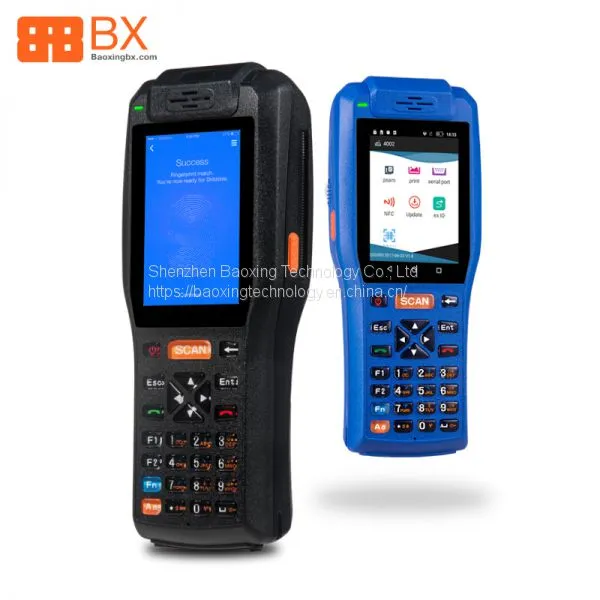

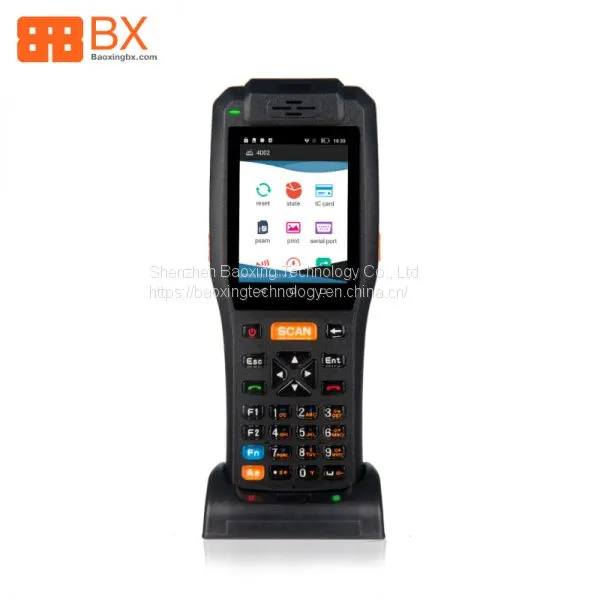

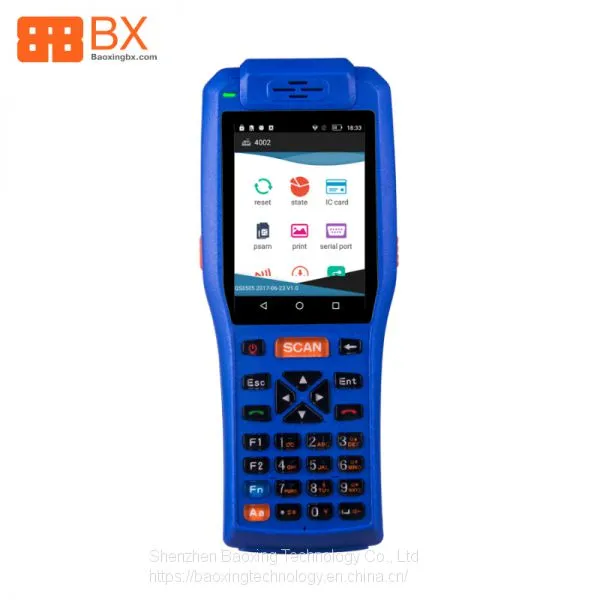

2019 industrial PDA mobile barcode scanner with 1D / 2D laser scanner

Name: 2019 industrial PDA mobile barcode scanner with 1D / 2D laser scanner
Brand: BAOXING
Price: USD $154.5 - 165 / Piece

FOB Price

USD $154.5 - $165 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T PayPal Other Cash

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

BAOXING

Place of Origin:

China

Model Number:

BX-U3505

Product Description

Handheld PDA Pos terminal Android POS 3G LTE WIFI with thermal printer 1d barcode scanner 3.5 inch touch screen

3G Handheld Intellegent Terminal
. 3.5 inch IPS suglight display
. AF8.M Pixel with LED flash light
. Long-life battery support full-day operations
. IP65 sealing
. NFC/ RFID identification
. Contact card reader / writer (optional)

If you wanna buy Sample for testing or SDK, please contact us :
Phone / Whatapp:+86 198 6576 8682

Email:rachel(@)

Product Description

System Configuration
Processor	ARM Cortex A53 Quad-core 64bits 1.3GHz
O.S	Android 6.0
Memory	8GB ROM+1GB RAM
Ex-Storag	Micro SD (Up to 64GB)
Audio	Built-in microphone/Headphone slot
Interface	Micro USB/Serial Port(TTL)
Communication Transmission
Mobile Network	3G: WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz
	GSM: 850/900/1800/1900MHz
	4G:LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41
Wi-Fi	IEEE 802.11 b/g/n
Bluetooth	Bluetooth 4.0
GPS	Supporting GPS/AGPS
Printer
Method	Direct Thermal
Speed	70mm/sec
Width	58mm(384 Dots/lines)
Sensor	Black mark / out of paper / overheat over-voltage protection
Medium	Thermal paper and label
Type	Text/image/bar code/QR cod
NFC/HF RFID
Protocol	ISO/IEC 14443A/B,ISO15693
Frequency	13.56MHz
NFC type	Type1-4Tag/Mifare/Felica
PSAM/ Contact Card
PSAM	IS0/IEC 7816 1-4
Contact chip card	IS0/IEC 7816 (optional)
1D Laser Scanner
Speed	100 lines/sec
Identification accuracy	≥4mi
Decoding Type	UPC-A,UPC-E,UPC-E1,EAN-13,EAN-8,ISBN/ISSN, Code 39,code39 (ASCII full), Interleaved 2 of 5, Industrial 2 of 5,Matrix 25,Codebar(NW7), Code 128,UCC/EAN 128,ISBT128,code 93, MSI/Plessey,UK/Plessey,China post,GS1 Data Bar
2D Image Scanner
Method	CMOS Image
Scan Speed	Scan Speed
Scan Angle	360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 °
Decoding Type	QR Code, Data Matrix, PDF417,UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar
Identification accuracy	2D≥7.5mil,1D≥5mil
DPM	Support DPM scanner (optional)
Fingerprint(Optional)
Method	Flat surface press to semiconductor sensor
Sensor	FPC1020
Image	242*266 pixels
Image resolution	508dpi
Storage	2000 pieces
Operating Environment
Develop Tools	Android SDK + JDK + Eclipse

Packaging & Shipping

Retaled Products

Company Information

FAQ

1. Are you PDA factory or trading company? We are PDA factory.
2. OEM/ODM is ok? yes, we have own factory and strong R&D to support OEM/ODM.
3. Payment Terms: T/T, western Union, paypal, L/C etc.
4. MOQ: 1PC
5. Delivery time: Sample will be ship in 3~5 days after receipt payment
6. warranty: 15 months without man-made damage from the shipment date for our all products (Excluded the consumable parts).
7. Shipping: by sea, by air, or express
8. Sample: sample for test is ok.
9. Visit factory: yes, it is ok, before visiting, please contact us.
10. About Discount: discount depends on your quantity, bulk order will in more cheap price.
11: Can buyers decide the express company that wil be used?
Yes. Buyers can choose the express company they prefer or cooperated with.
12: What's the lead time? (How long do you need to prepare my goods?
4-7days for sample orders. 15-40days for mass production orders (based on different quantities).

Handheld PDA Pos terminal Android POS 3G LTE WIFI with thermal printer 1d barcode scanner 5.5 inch touch screen

If you wanna buy Sample for testing or SDK, please contact me :

Rachel Wong
Phone / Whatapp:+86 198 6576 8682
Email: rachel(@)
