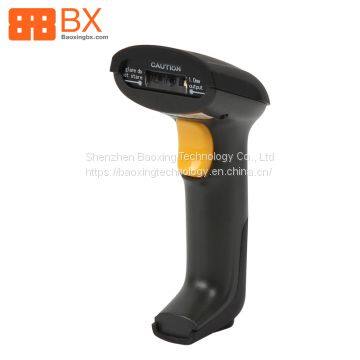

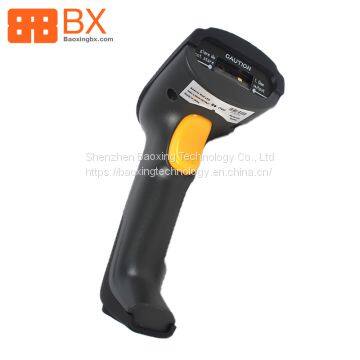

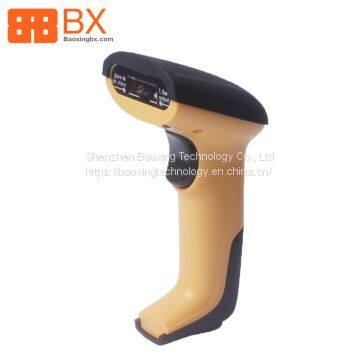

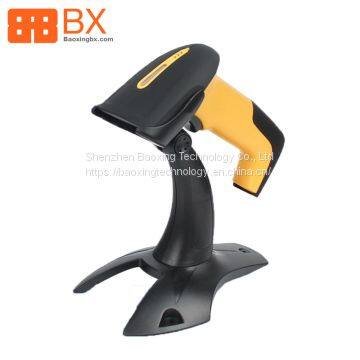

BX-S2000 2D barcode scanner billing machine 360 degree pda with barcode scanner
Our product is usually applied in the fields including government & public affairs, financial management, ticket business,
traceability,medicare, healthcare,logistics,retailing stores and supermarkets,e-commerce payment etc.
Product description:
1.Support scanning barcode on Android/ IOS/ Windows.
2.Scanning speed:280 scan/s.

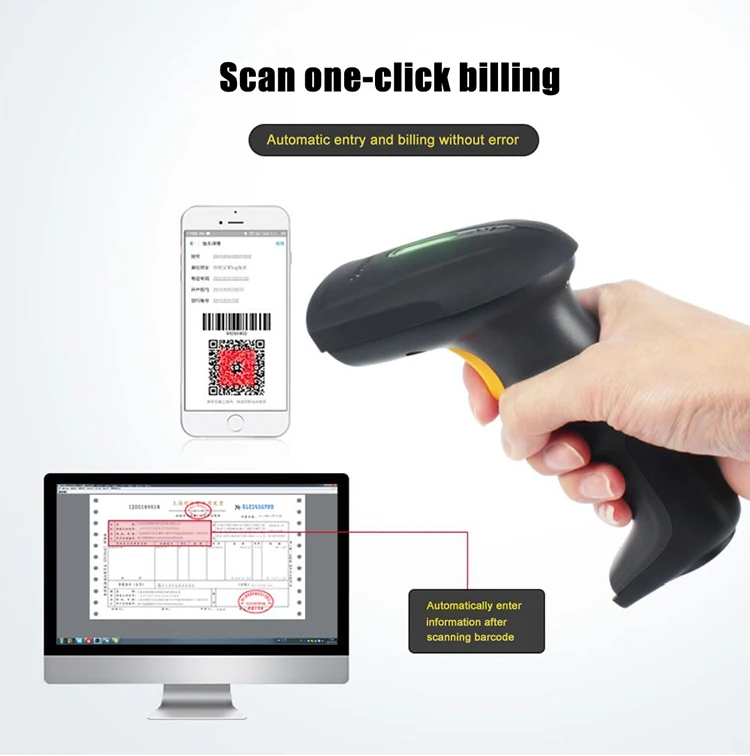

3.Support mobile payment via scanning QR code on the phone.
4.Interface: USB
5.Data cable length: 1.5m
Phone / Whatapp:+86 198 6576 8682
Email:rachel(@)
| Parameter | |
| Item: | 2D image scanner gun |
| Model number: | BX-S2000 |
| 1D Barcode Scanning | Support |
| 2D Barcode Scanning | Support |
| Scan Barcode on the Phone | Support |
| Scan Barcode on the Computer | Support |
| Data Transfer Method | USB data transfer (RS232 or Wireless Optional) |
| Interface | USB (RS232 or Wireless Optional) |
| Cable Length | 1.5m |
| Sensor Resolution | CMOS sensor (640*480 pixel,30fps) |

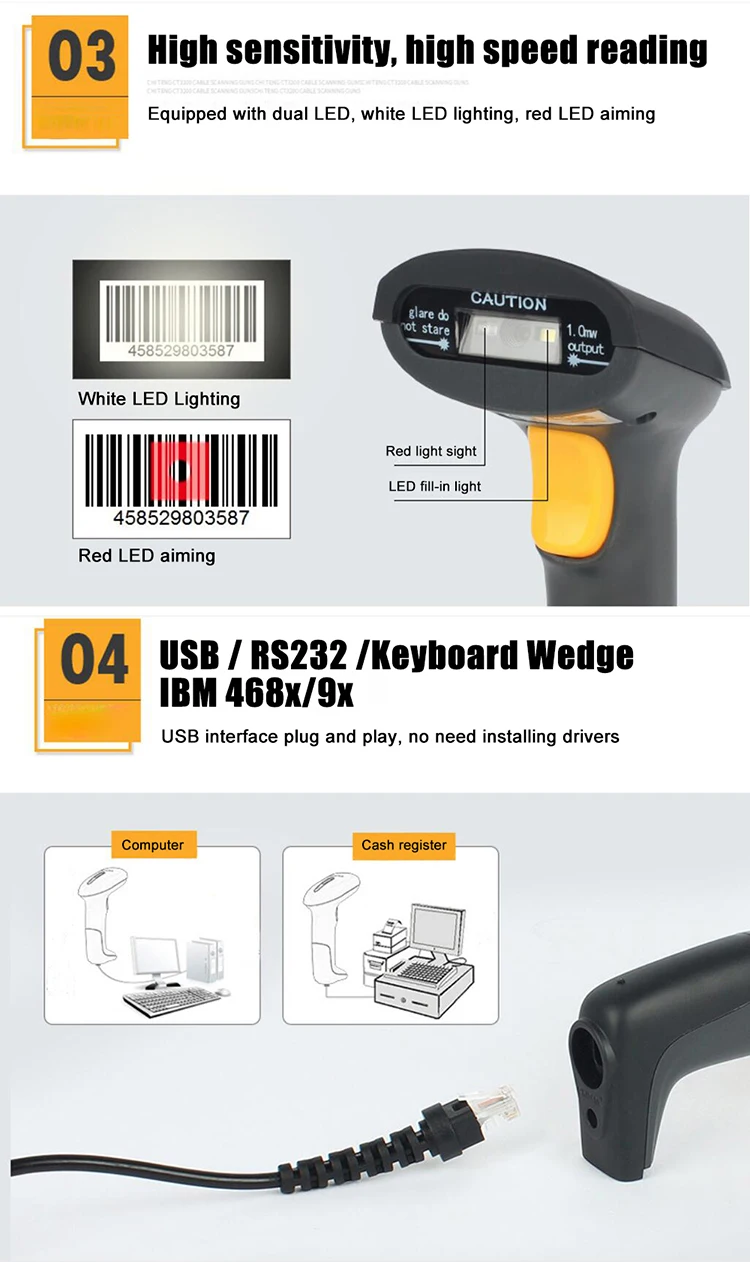

| Aiming | 624nm red LED aiming |
| Light Source | 624nm white LED |

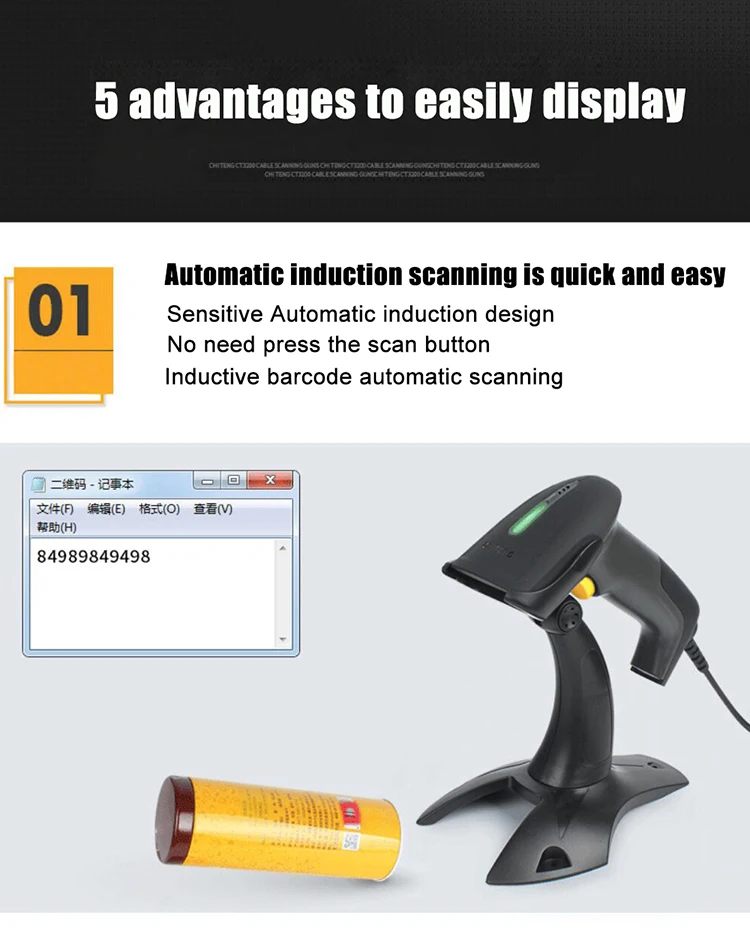

| Scan Method | Manual, automatic, continuous |
| Field of View | Horizontal: 40°, Vertical: 30° |
| Roll/skew/pitch Tolerance | 360°/±60°/±61° |
| Operating Voltage | 5V DC±5% |
| Operating Current | 390mA(Max.),300mA(Typical) |
| Print Contrast | ≥30% |

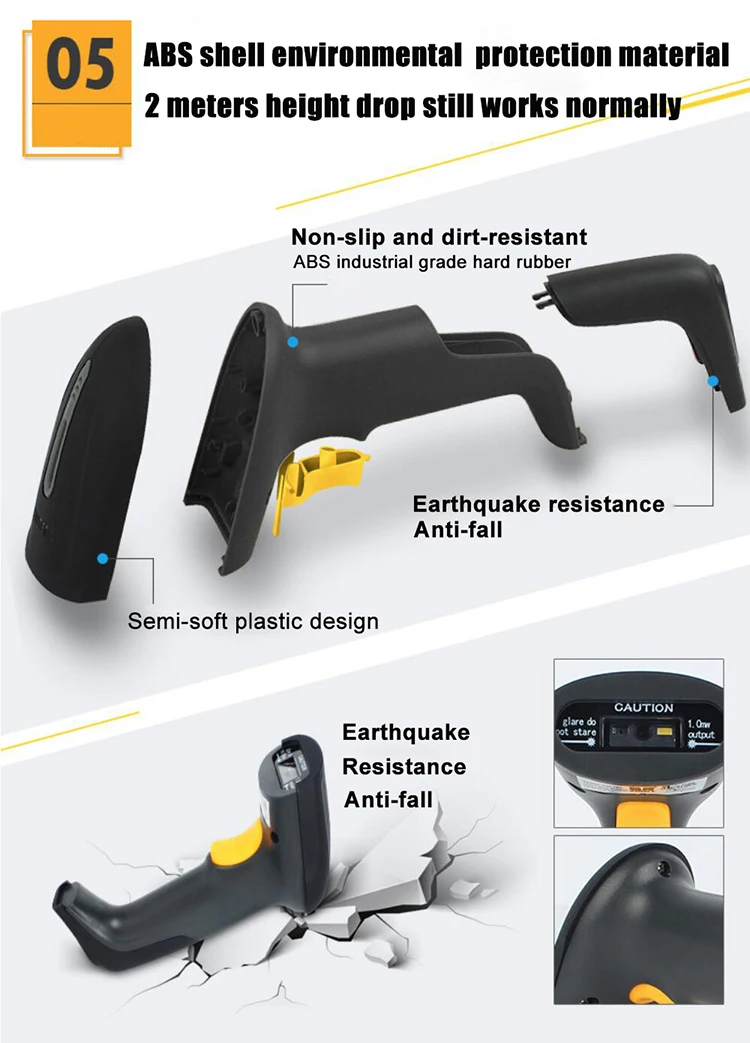

| Drop Specification | Withstand multiple drops at 1.5m to concrete |
| Compatible System | Android/ IOS/ Windows system |
| Scan Rate | 200 scan/s |
| Motion Tolerance | 13mil UPC code: 30cm/s |

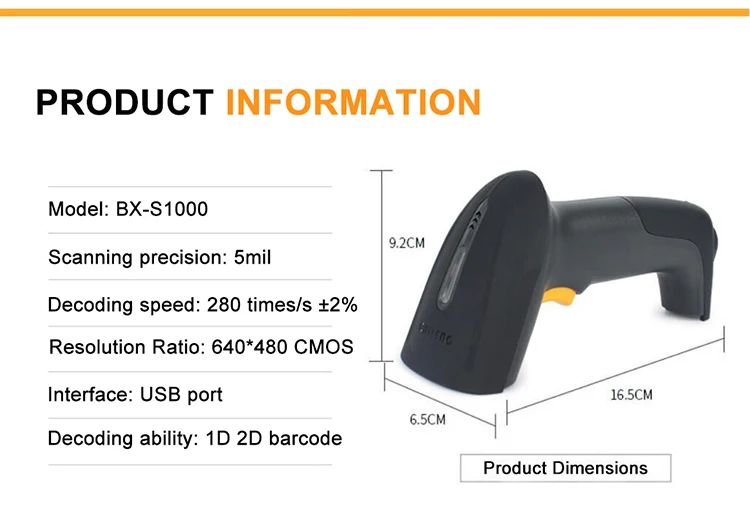

| Product Dimensions | 165mm*65mm*92mm |
| Package Dimensions | 200mm*98mm*120mm |
| Product Weight | 290g |
| Decoding Capability | 1D: Code 39 (Code 32), Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 25(Straight 2 of 5 Industrial) 2D: QR Code, Data Matrix, PDF417 |
| Optional Barcode | 1D: China Post(Hong Kong 2 of 5), NEC 2 of 5, Code 11, MSI Plessey, GS1 Databar(RSS), Korea Post, Trioptic code39, GS1 Composite Code, Telepen 2D: MicroPDF417, Aztec Code, Codablock, MaxiCode, Chinese Sensible Code |
| Depth of Field | 13mil UPC (25-210mm) 6.7mil PDF417 (25-120mm) 13mil Code39 (95-160mm) 10mil PDF417 (25-190mm) 5mil Code39 (50-80mm) 10mil Data Matrix (20-70mm) 20mil Code39 (100-310mm) 20mil QR (30-210mm) |
| Operating Temperature | -20℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Humidity | 5%~95% (non-condensing) |
| | |
1. Are you PDA factory or trading company? We are PDA and barcode scanner factory.
2. OEM/ODM is ok? yes, we have own factory and strong R&D to support OEM/ODM.
3. Payment Terms: T/T, western Union, paypal, L/C etc.
4. MOQ: 1PC
5. Delivery time: Sample will be ship in 3~5 days after receipt payment
6. warranty: 15 months without man-made damage from the shipment date for our all products (Excluded the consumable parts).
7. Shipping: by sea, by air, or express
8. Sample: sample for test is ok.
9. Visit factory: yes, it is ok, before visiting, please contact us.
10. About Discount: discount depends on your quantity, bulk order will in more cheap price.
11: Can buyers decide the express company that wil be used?
Yes. Buyers can choose the express company they prefer or cooperated with.
12: Can Buyers use their own couriers or shipping agents?
Yes, buyers can use their own shipping agents.
13: What's the lead time? (How long do you need to prepare my goods?
4-7days for sample orders. 15-40days for mass production orders (based on different quantities).
If you wanna buy Sample for testing or SDK, please contact me :
Rachel Wong
Phone/ Whatapp:+86 198 9576 8682
Email: rachel(@)
