Product Introduction
High-precision digital thermometer is a high-precision intelligent temperature instrument developed by Taian Demei Electromechanical Equipment Co., Ltd. Through advanced algorithm design, high-performance temperature sensing elements and electronic components, excellent long-term stability is ensured; the rotating connector allows the display part to rotate 90 degrees for easy observation; it has the advantages of high measurement accuracy, easy use, on-site calibration, safety and environmental protection.
Product Features
1. The product is small in size, light in weight and easy to carry.
2. The temperature range is wide, and different types of sensors can be customized according to your own requirements (thermal resistors: PT100, PT1000; thermocouples: K, N, J, T, S, B).
3. High resolution 0.001℃. High precision, meeting the "JJF1076-2020 Digital Thermometer Calibration Specification", with an accuracy better than ±0.05℃
4. The sensor adopts a rotating shaft design, and the sensor probe can be rotated 90° horizontally or vertically, which is suitable for complex industrial environments.
5. Contains host computer software, which can realize multi-point temperature correction. Users can customize segmented corrections for sensors, or use factory default values.
6. Micro power consumption, screen sleep and screen brightness adjustment can be realized.
7. The main interface displays the current temperature, power, and resistance value in real time, and the 3-minute and 10-minute temperature fluctuations are automatically tracked and calculated.
Product Parameters
Model |
DY-07 |
Temperature range |
-20℃~150℃ |
Display resolution |
0.001℃ |
|
Sensor type
|
Standard: High-precision platinum resistance sensor (customizable) |
Accuracy |
±0.05℃ |
Device size (reader only) |
100mm (length) × 65mm (width) × 32mm (height) |
Battery operating time |
Standby>70 hours |
Power supply |
Battery 5000mA, 4.2V Charging type Type-c |
Probe rotation |
Rotate 90 degrees |
Device weight |
270g |
Probe length |
5mm |
Probe material |
Stainless steel 316L (standard, customizable soft wire platinum resistance) |
Measurement medium |
Non-conductive gas, liquid, steam |
Function |
Real-time display of current temperature, power display, resistance value, temperature fluctuation, automatic tracking calculation of 10-minute temperature fluctuation, test function |
Recommended operating temperature |
Operating temperature range: 25℃±10℃, recommended humidity range: below 80%RH |

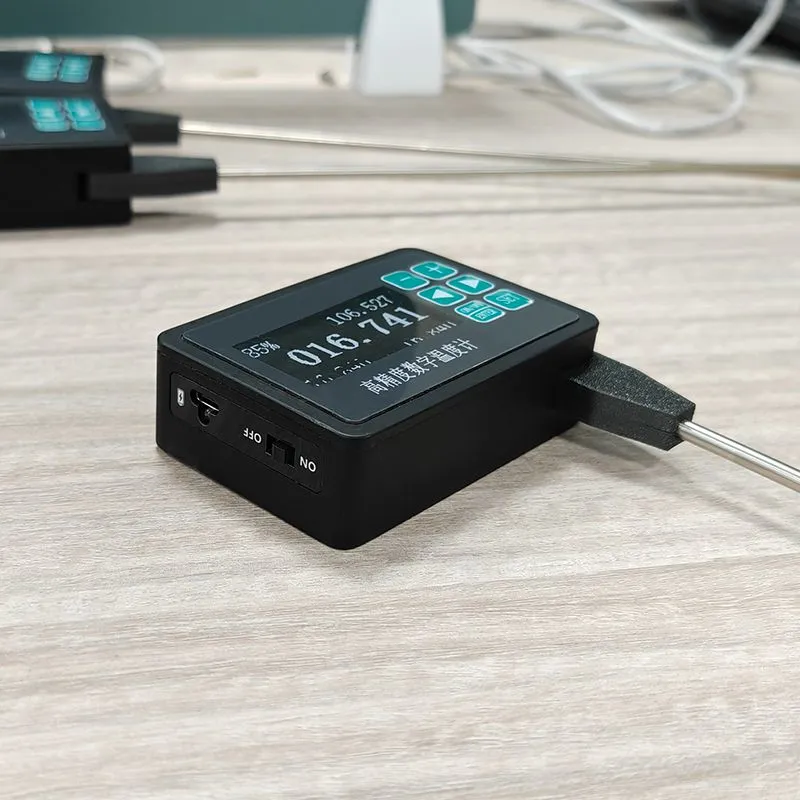

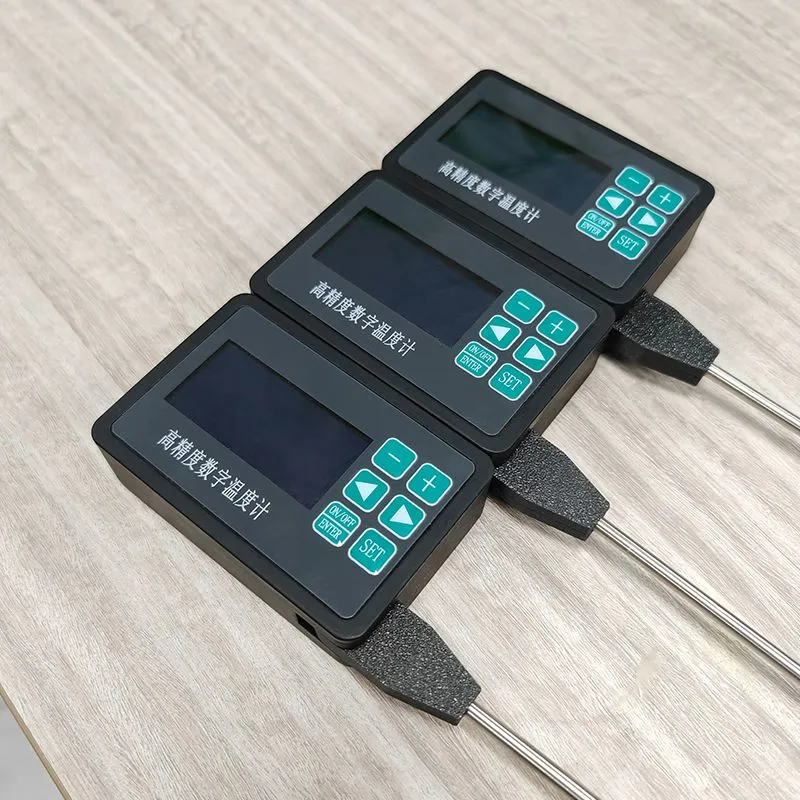

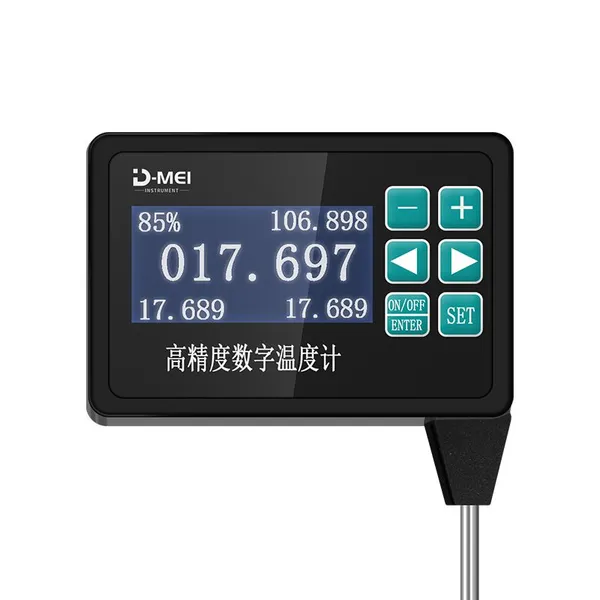

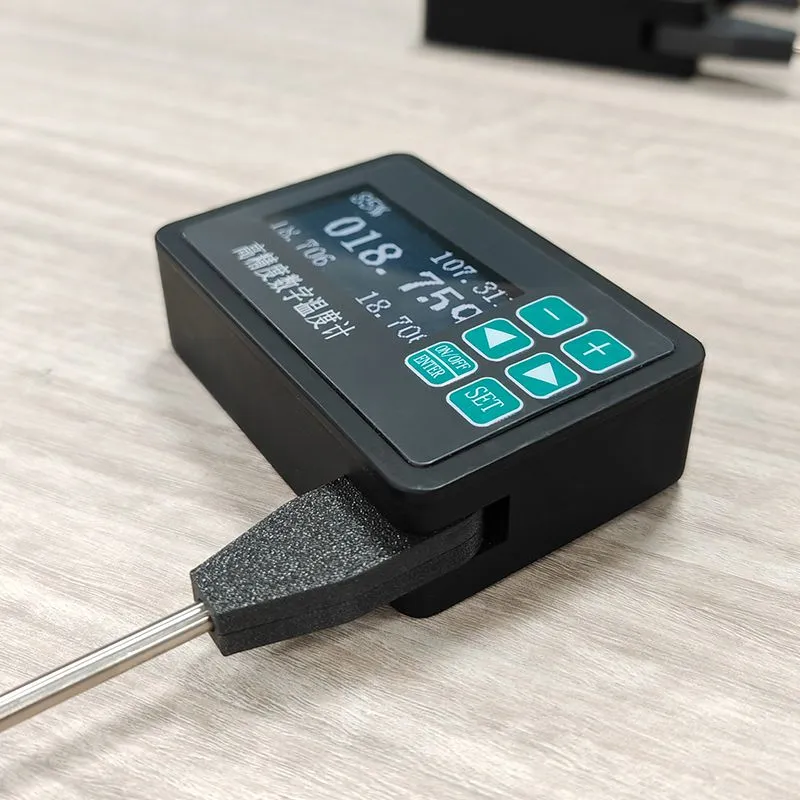

Product photos
