Home > Instruments & Meters > Electronic Instrument > Calibrator > DY-RX Handheld Process Signal Verifier / Multifunctional Thermal Instrument Verifier

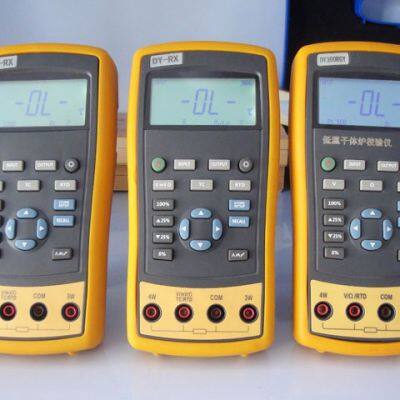

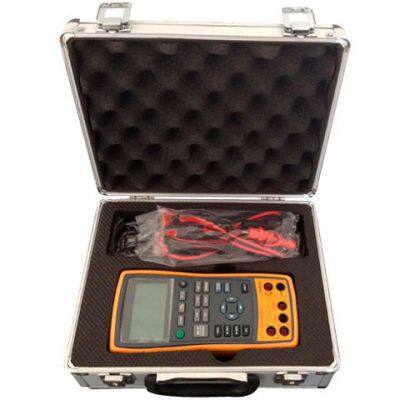

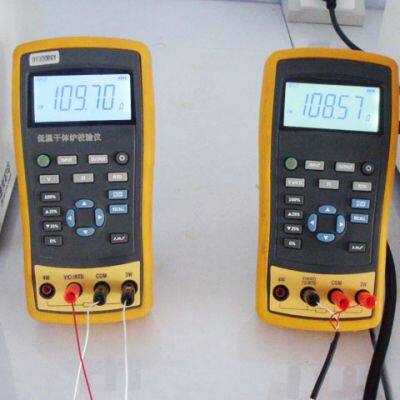

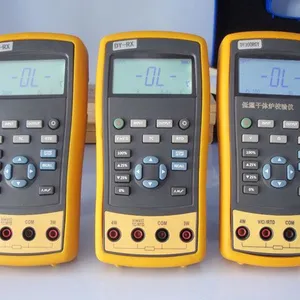

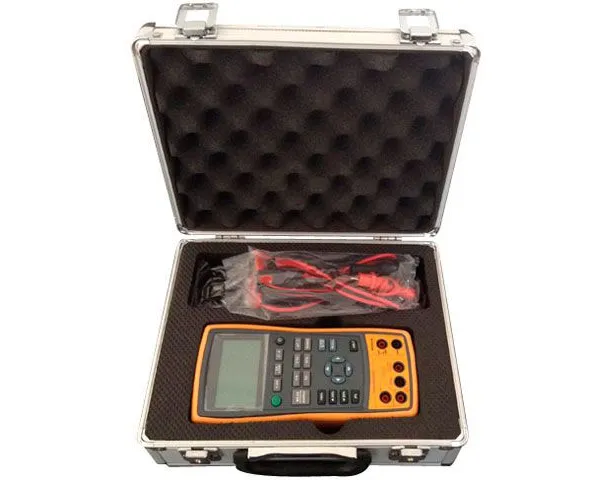

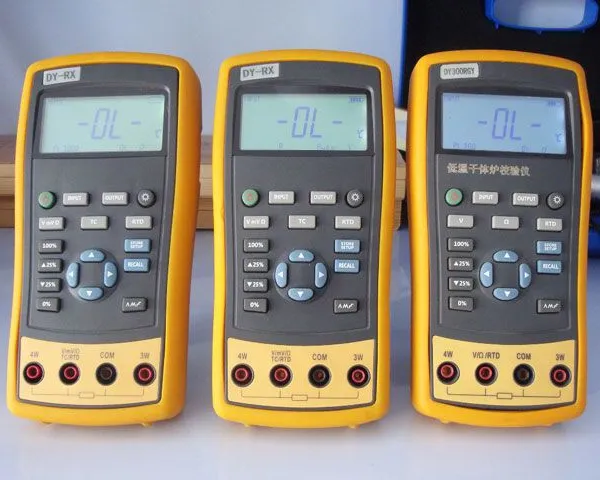

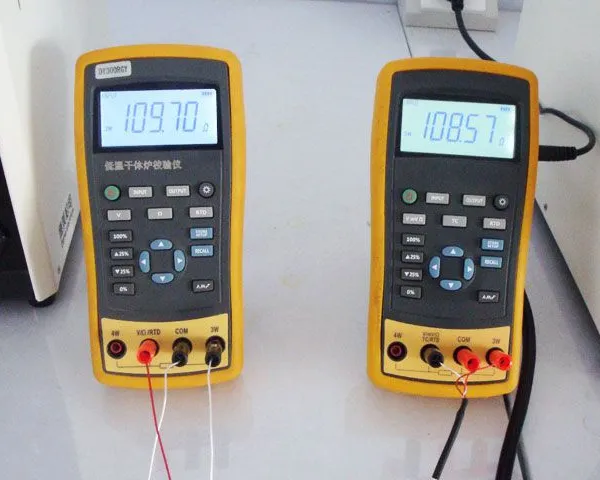

DY-RX Handheld Process Signal Verifier / Multifunctional Thermal Instrument Verifier
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
12 months
Application:
Thermal Power
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days
Related Products
-
DY-WDJ High-precision Digital ThermometerUS$ 1000 - 2000MOQ: 1 Piece -
DY-69 High-precision Digital Thermometer (-50～450℃)US$ 800 - 900MOQ: 1 Piece
-
DY-07-80~300°C Handheld High-precision Digital ThermometerUS$ 350 - 400MOQ: 1 Piece
-
DY-07 -20~150°C Handheld High-precision Digital ThermometerUS$ 300 - 350MOQ: 1 Piece
-
DY-07-20~150°C High-precision Digital Thermometer for Industrial Use Handheld ThermometerUS$ 300 - 350MOQ: 1 Piece
Certification
CE
Warranty
12 months
Application
Thermal Power
After-sales Service
Professional technical team provides support.
LCD Display
Without LCD Display
Voltage Output
220V
Current Output
10A
Thermocouple (TC)
K
Resistance-Temperature Detector (RTD)
Pt100(385)
Customized
Non-Customized
Transport Package
Standard export wooden crates
Specification
DY-RX
Trademark
DEMEI
Origin
CHINA
[Product Functions]
1. Upper and lower display screens.The upper part of the screen is used to display the voltage, current (loop supply), millivolt, resistance, and on-off tests of the isolation module.The lower part of the screen displays the measured and output voltage, current, frequency, ohm, as well as thermal resistance (RTD), thermocouple (TC) in the form of temperature.
2. As isolated loop power supply is adopted, only one dy-rx can complete the calibration of multiple two-wire transmitters.
3. Provide cold end compensation for thermocouple (TC) measurement.
4. Customize the output range to facilitate the call of 0% ~ 100% values of different applications.
5, manual step, automatic step, 0 ~ 100% step and slope output.
List of output and measurement functions
| Function | Measuring | Output | Mark |
| Direct voltage | 0~60V(Top Screen±30V) | 0～10V | Acoustic measurement |
| Direct current | 0~24mA(Top Screen±24mA) | 0～24mA | Acoustic measurement |
| Frequency | 1.000Hz～99.999kHz | 0.20Hz～20.000kHz | |
| Resistance | 0～3200Ω | 10～3200Ω | Acoustic measurement |
| Direct millivolt | -10mV~120mV | -10mV~120mV | Acoustic measurement |
| Thermal resistance | Pt100、Pt1000、Cu50、Cu100 | Pt100、Pt1000、Cu50、Cu100 | |
| Thermocouple | E、J、K、T、B、R、S、N | E、J、K、T、B、R、S、N | |
| Others | Isolated loop power supply, step output, slope output, step output, custom range | ||
