Product Introduction
DY-CTRE200 intelligent dry block instrument is designed by the company for calibrating temperature sensors of various low, medium and high temperature dry block furnaces. The intelligent dry block instrument can simultaneously collect the temperature values, resistance values and fluctuation curves of 3 standard platinum resistance thermometers (Pt25) or 1 standard thermocouple thermometer and 5 temperature sensors under test. The channel collection method is patrol inspection, and the channel can also be switched manually. The device can switch between resistance mode and thermocouple mode.
The device can be equipped with dry body furnaces, standard sensors, and sensors for inspection. It can be equipped with a small host computer setting to control the temperature setting of the dry body furnace, the current temperature value, resistance value, and fluctuation curve of the standard device under test and the sensor under test in real time.
Application Industry
Shipbuilding industry
Pharmaceutical industry
Industry (laboratory, workshop, production line)
Temperature sensor and temperature transmitter manufacturers
Calibration service companies and calibration service industry
Applicable to on-site measurement and calibration work
Technical indicators
Multifunctional Intelligent Thermometer |
DY-CTRE200 |
Display |
7-inch color touch screen |
Resolution |
0.001 |
Display |
℃/mV/Ω |
Collection Accuracy |
0.02% |
Input Channel |
8 channels (including independent standard channels: 3, inspection channels: 5) |
Adapt Sensor Type |
①Industrial four-wire Pt100 thermal resistance sensor ②Industrial thermocouple sensors, K, E, J, T, B, N, R, S ③Standard platinum resistance thermometer (Pt25) ④Standard thermocouple thermometer |
Measuring Range |
Thermal resistance: -100℃-500℃ Thermocouple: 0℃-1600℃ |
Mode Switchable |
Thermal resistance mode: 3 standard platinum resistors (Pt25) + 5 PT100 Thermocouple mode: 1 standard thermocouple + 5 thermocouples (gradient numbers can be different) |
Inspection Inspection Time |
1 second/channel |
Function |
①Data recording and query functions, the recording time interval can be set ②The channel has temperature display, resistance display, 3-minute and 10-minute fluctuation display ③Each channel has a deviation correction function to facilitate internal deviation correction ④ 3 standard channels, 1-3 can measure standard platinum resistance thermometers, and channel 3 can also measure standard thermocouples. ⑤Curve display, can display the temperature range automatically or manually. ⑥5 inspection channels, which can simultaneously detect Pt100 thermal resistance sensors or industrial thermocouple sensors, K, E, J, T, B, N, R, S (thermocouples can be mixed) |
|
Upgrade Function
Matching Dry Body Furnace |
This equipment is equipped with an intelligent dry-body furnace, which can realize wireless control, set the temperature in real time, and display the current temperature and temperature fluctuation of the dry-body furnace. |
Interfaces and Protocols |
Standard Configuration: USB type-C interface Optional: RS-485 Standard: modbus-RTU communication protocol |
|
Dimensions (length × width × height) |
220mm×45mm×145mm |
Weight |
≤2kg |
Power Supply |
10000mAH lithium battery, charging mode |
Operating Temperature |
15℃-25℃，10%RH-95%RH |
Cold Junction Compensation |
External or channel compensation, the external PT100 reference terminal is used for thermocouple acquisition, and the reference terminal can be turned on or off |
Standard Accessories |
Host, USB expansion port, wireless mouse, charger, 8 signal adapter cables, instrument carrying case |

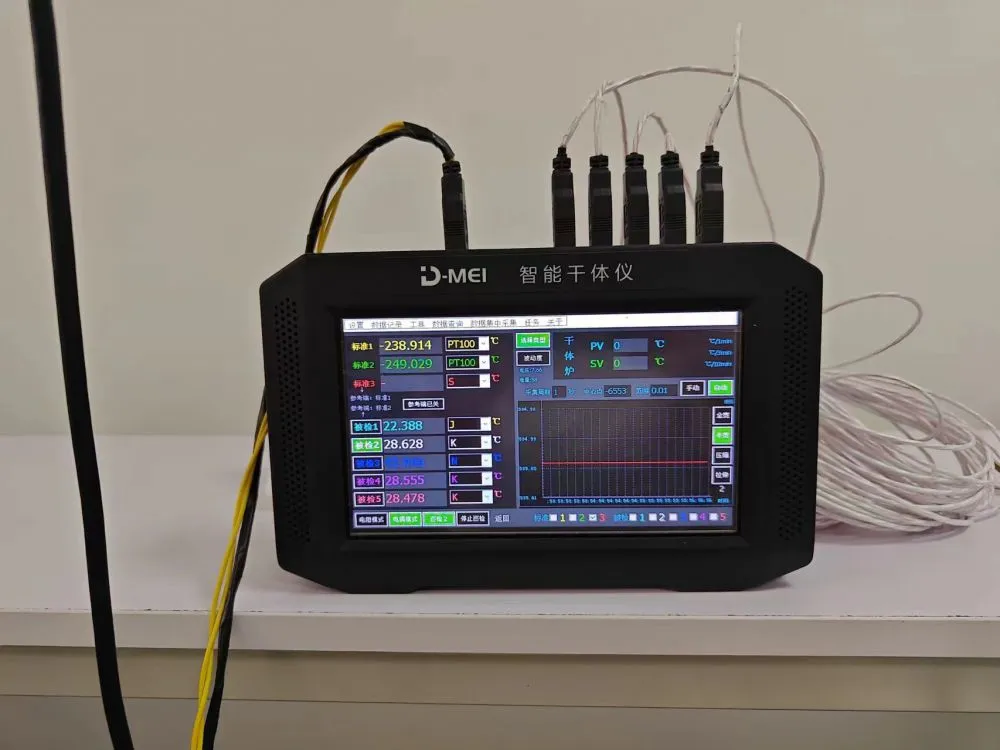

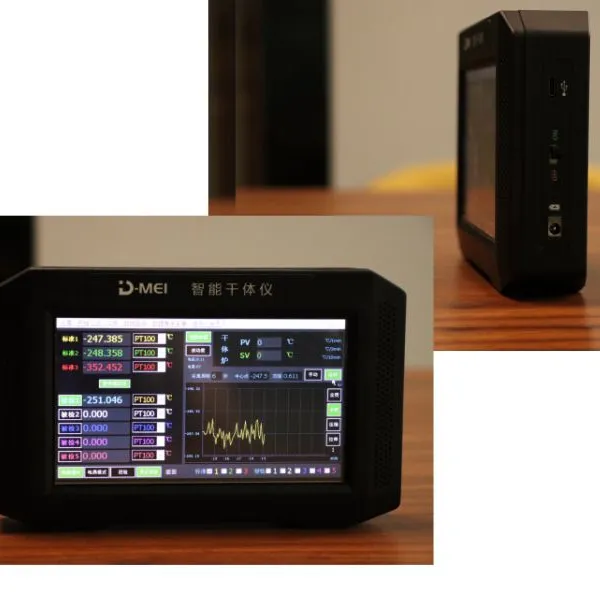

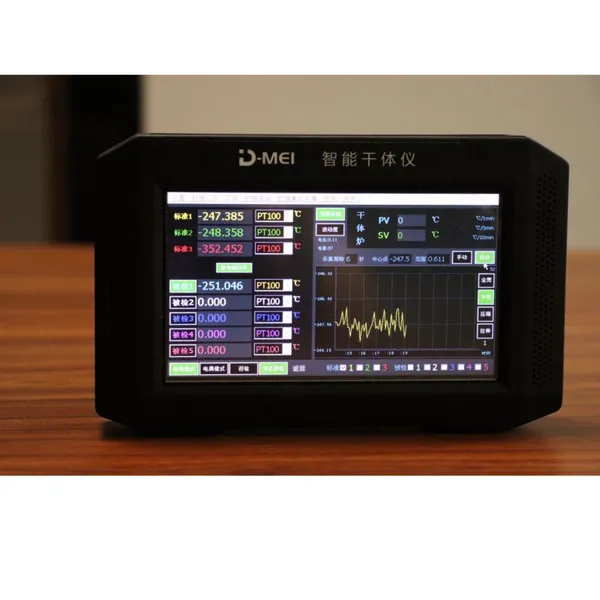

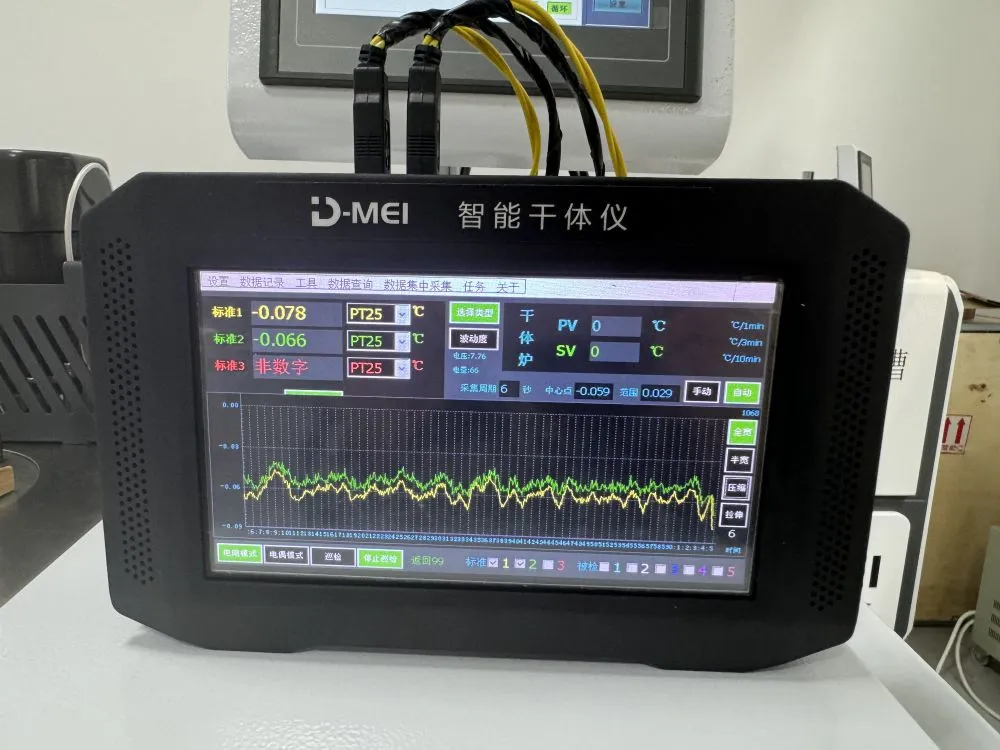

Product Pictures
