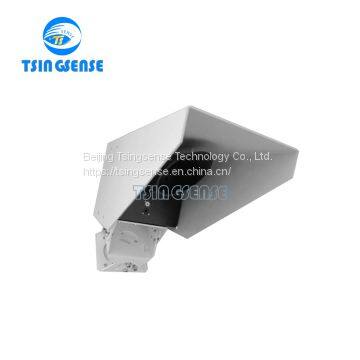

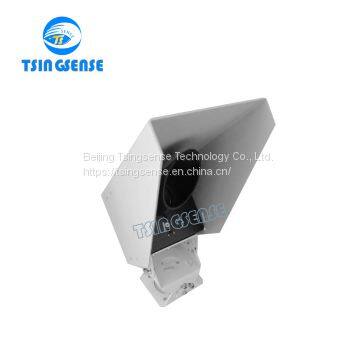

RCS01 Non-intrusive road sensor for ground monitoring
- 1000 Set / Sets per Month
- tianjin
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
Product Details
Brand Name: | Tsingsense | Place of Origin: | China | Model Number: | RCS01 |
Product Description
The TS RCS01 non-intrusive road sensor is specially designed for ground monitoring of traffic roads. It uses remote sensing technology to avoid damage to the road and thus does not cause traffic disturbance due to the installation of road weather stations. Multispectral measurement technology allows it to accurately detect the thickness of ice, snow and water on the road surface. By providing road condition information, the non-intrusive road sensor provides accurate monitoring data for the road management department, and takes appropriate measures before the road safety situation is dangerous.
Features
Remote measurement of water, ice and snow on the road
Measuring stagnant water, ice, slippery
Non-buried design
Strong corrosion resistance
Infrared detection distance is up to 15.5 meters
No need to close the driveway, easy installation and maintenance
Rugged design, online measurement all day
Technical parameters
Monitoring distance | 2~15m |
Measuring diameter | 25.4 cm |
Angle | 30~90° |
Power supply | 220VAC,12VDC |
Maximum power consumption | 4W |
Working temperature | -40ºC ~+ 70ºC |
Working humidity | 0 to 100% |
Road status output | water:0.00~10mm |
ice:0.00~10mm | |
snow:0.00~10mm | |
slippery:0.00~1 | |
Accuracy | 0.01mm |
Lens contamination detection | Pollution level measurement of optical lens, internal automatic pollution compensation |
Road surface | Concrete, asphalt pavement |
communication method | RS485 |
Mean time between failures (MTBF) | 1.5 x 1000000 hours |
Safety | No safety issues – infrared remote sensing measurement technology |
Packing list
sensor a set
certificate/warranty a copy
packing list a copy
FAQ for RCS01 sensor
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:Communication interface adopts RS485,(RS232 can be selected)

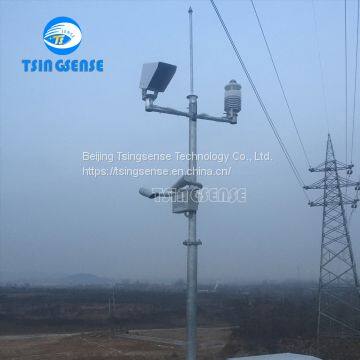

Application
