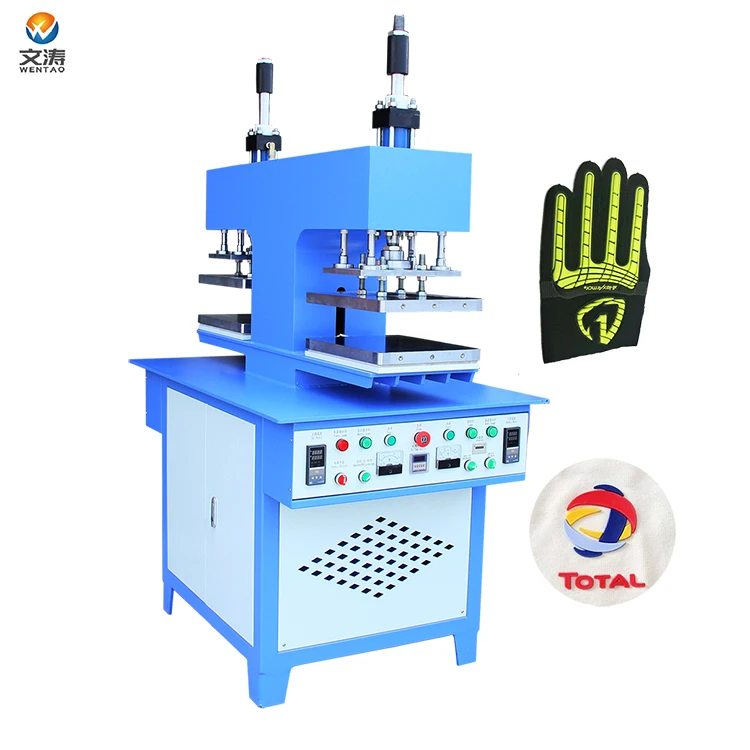

2 Working Stations 3d Garment Embossing MachineProduct Description
Features:2 Working Stations 3d Garment Embossing Machine
1. Heating plate heating up and down, adjustable temperature up to 400 °C.
2. The size of the heating plate is 300*400mm, and the size of the heating plate is customized.
3. Built-in counting function, automatic counting of the number of moldings during production.
4. Two working positions, which can be controlled independently or simultaneously.
5. Double oil circuit, single motor and single oil pump control, low energy consumption.
6. Hydraulic pressure, stable and safe performance, strong product adhesion.
2 Working Stations 3d Garment Embossing Machine
| Machine Name | Embossing Press Machine |
| system | hydraulic |
| Heating plate | with heating up and bottom |
| Work station | double station |
| Stroke | 110mm |
| Main cylinder diameter | 80mm |
| Horse | 4.5hp |
| Heating plate size | 300*400mm |
| Other Available Size | Custom size by your special order |
| heat power | 7.2kw |
| Voltage | 220V,single phase |
| machine size(L*W*H) | 795*1195*1800MM |
| Weight | 600KG |
application:
1. T-shirt trademark embossing;
2. Denim embossing;
4. Microfiber fabric/gloves silicone trademark/silicone thermal transfer;
5. Silicone bracelet embossing hot pressing;
5. Thermal transfer and bronzing of ready-to-wear/knit fabric/shoes

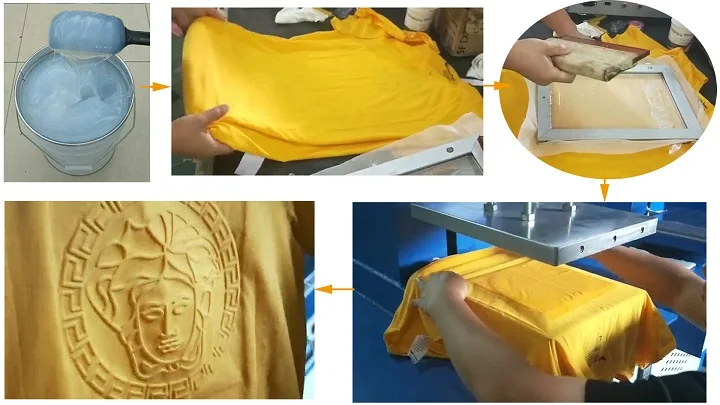

Process of silicone Embossing:
1.stroke adjust between heating plates,Adjuster of distance: the distance of both plates is can be controlled according to material and the thickness of pattern.
2.silicone and catalyst mixing,mixing as the ratio,for fix mold on heating plate and fabric prining
2.filling silicone on molds.Set the position for molds you will stick to the heating platen,male mold on the top, female mold on the bottom.Start machine hot pressing,time: 90s
(tips: avoid fabric sticking on mold,apply some detergent on mold
fabric embossing time: 8s-12s)
3.printing tools: Screen Printing Scraper+printing frame
printing the silicone
on back side of fabric(screen printing),Preheat the machine. Set the temperature between 170-220℃,and the time about 12sec.
4.Make the heating platen press down.After 12 sec. it will auto release.
5.Use the machine to do the embossing.

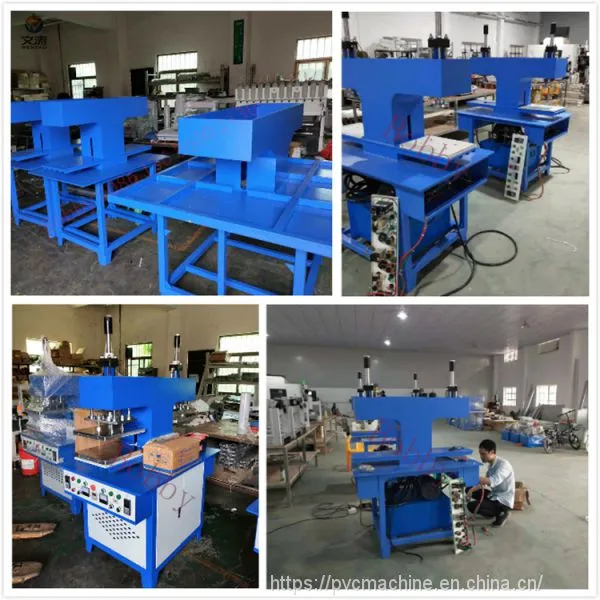

Our Factory

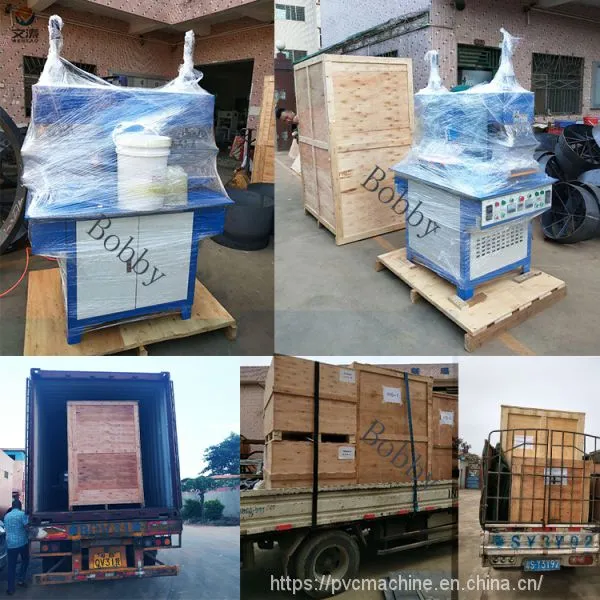

Seaworthy wooden packaging
