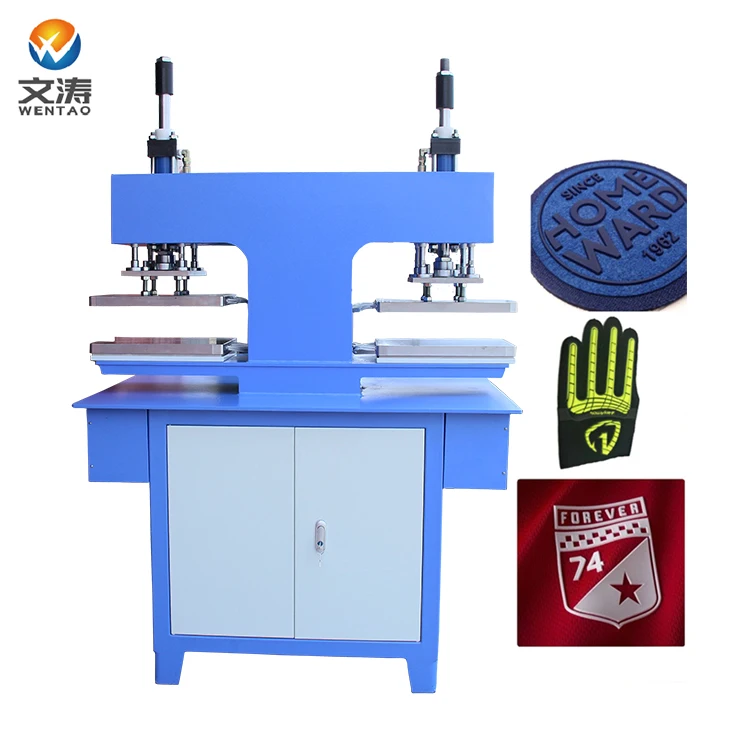

2 Head 5 Ton Pressure Cotton Fabric Textile clothes Embossing Machine Technical Parameters
| Machine Name | Fabric Textile clothes Embossing Machine |
| system | hydraulic |
| Heating plate | with heating up and bottom |
| Work station | double station |
| Stroke | 110mm |
| Main cylinder diameter | 80mm |
| Horse | 4.5hp |
| Heating plate size | 300*400mm |
| Other Available Size | Custom size by your special order |
| heat power | 7.2kw |
| Voltage | 220V,single phase |
| machine size(L*W*H) | 795*1195*1800MM |
| Weight | 600KG |
Features:Fabric Textile clothes Embossing Machine
1. Heating plate heating up and down, adjustable temperature up to 400 °C.
2. The size of the heating plate is 300*400mm, and the size of the heating plate is customized.
3. Built-in counting function, automatic counting of the number of moldings during production.
4. Two working positions, which can be controlled independently or simultaneously.
5. Hydraulic pressure, stable and safe performance, strong product adhesion.
6.djuster of distance: the distance of both plates is can be controlled according to material and the thickness of pattern.
7.servo motor motor: it can delay working time and shut down automatically ,which can save energy and protect oil system.
Application:
silicone Embossing machine for garments embossing, like knitted fabric material and decorative molding embossing.
application:Fabric Textile clothes Embossing Machine
1. T-shirt trademark embossing;
2. Denim embossing;
4. Microfiber fabric/gloves silicone trademark/silicone thermal transfer;
5. Silicone bracelet embossing hot pressing;
5. Thermal transfer and bronzing of ready-to-wear/knit fabric/shoes
Process of silicone Embossing:Fabric Textile clothes Embossing Machine
1.stroke adjust between heating plates,Adjuster of distance: the distance of both plates is can be controlled according to material and the thickness of pattern.
2.silicone and catalyst mixing,mixing as the ratio,for fix mold on heating plate and fabric prining
2.filling silicone on molds.Set the position for molds you will stick to the heating platen,male mold on the top, female mold on the bottom.Start machine hot pressing,time: 90s
(tips: avoid fabric sticking on mold,apply some detergent on mold
fabric embossing time: 8s-12s)
3.printing tools: Screen Printing Scraper+printing frame
printing the silicone
on back side of fabric(screen printing),Preheat the machine. Set the temperature between 180-235℃,and the time about 12sec.
4.Make the heating platen press down.After 12 sec. it will auto release.
5.Use the machine to do the embossing.
Our Factory,Fabric Textile clothes Embossing Machine
Seaworthy wooden packaging
