Garment silicone label embossing machine
| Machine Name | T-shirt Logo Embossing Machine |
| system | hydraulic |
| Heating plate | with heating up and bottom |
| Work station | double station |
| Stroke | 110mm |
| Main cylinder diameter | 80mm |
| Horse | 4.5hp |
| Heating plate size | 300*400mm |
| Other Available Size | Custom size by your special order |
| heat power | 7.2kw |
| Voltage | 220V,single phase |
| machine size(L*W*H) | 795*1195*1800MM |
| Weight | 600KG |
Features: silicone label embossing machine
1. Heating plate heating up and down, adjustable temperature up to 400 °C.
2. The size of the heating plate is 300*400mm, and the size of the heating plate is customized.
3. Built-in counting function, automatic counting of the number of moldings during production.
4. Two working positions, which can be controlled independently or simultaneously.
5. Hydraulic pressure, stable and safe performance, strong product adhesion.
6.djuster of distance: the distance of both plates is can be controlled according to material and the thickness of pattern.
7.servo motor motor: it can delay working time and shut down automatically ,which can save energy and protect oil system.
Application:
silicone label embossing machine for silicone label embossing, garments embossing, like knitted fabric material and decorative molding embossing.
application: silicone label embossing machine;
1. T-shirt trademark embossing;
2. Denim embossing;
4. Microfiber fabric/gloves silicone trademark/silicone thermal transfer;
5. Silicone bracelet embossing hot pressing;
5. Thermal transfer and bronzing of ready-to-wear/knit fabric/shoes

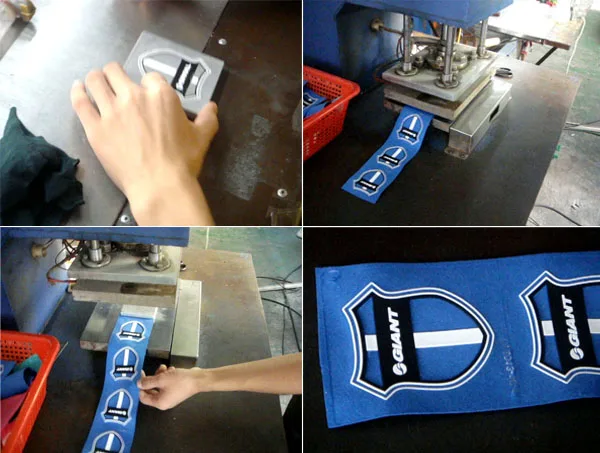

Process of silicone label Embossing: silicone label embossing machine
1.stroke adjust between heating plates,Adjuster of distance: the distance of both plates is can be controlled according to material and the thickness of pattern.
2.silicone and catalyst mixing,mixing as the ratio,for fix mold on heating plate and fabric prining
3.mixing silicone with color,
4.vacuum, to remove the bubble
5.filling silicone into mold, multi color can filling by automatic dispensing machine,
6.heating press by silicone label embossing machine, up temp use 160-180 degree,
press time about 15s-18s,
oling, then finish.
Our Factory,silicone label embossing machine
Seaworthy wooden packaging
