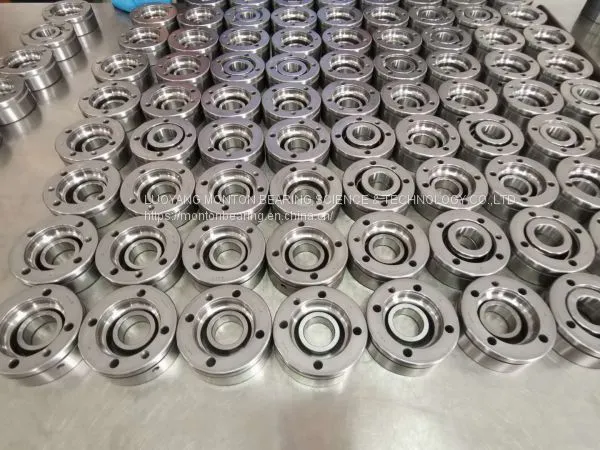

ZKLF-3080-2RS/P4 Thrust Axial Angular Contact Ball Bearings

ZKLF-3080-2RS/P4 Thrust Axial Angular Contact Ball Bearings thumbnail-1
ZKLF-3080-2RS/P4 Thrust Axial Angular Contact Ball Bearings thumbnail-2
ZKLF-3080-2RS/P4 Thrust Axial Angular Contact Ball Bearings photo-1
ZKLF-3080-2RS/P4 Thrust Axial Angular Contact Ball Bearings photo-2
US$ 80 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
ZKLF2068-2RS/P4
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MONTON
Place of Origin China
Model Number ZKLF2068-2RS/P4
Number of Row Single Row
Seals Type seals
Precision Rating P4
Outside Diameter 10, 1000
Bore Size 10, 1000

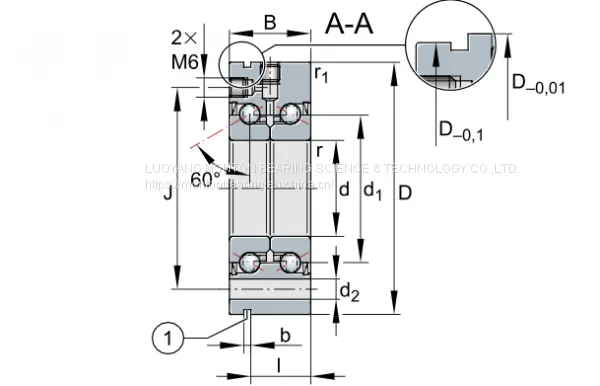

d 17  mm  Tolerance: 0/-0,01
D 62  mm  Tolerance: 0/-0,013
B 25  mm  Tolerance: 0/-0,25

M6  Threaded connector for lubrication

60  °  Contact angle

M6  Fixing screws to DIN EN ISO 4762 10.9

Screws not included in scope of delivery.
Tightening torque according to
manufacturer’s data.
b 3  mm
Da max 37  mm
d1 30  mm
d2 6,8  mm
da min 23  mm
I 17  mm
J 48  mm
na x ta 3 x 120°  Fixing screws to DIN EN ISO 4762 10.9

Screws not included in scope of delivery.
Tightening torque according to
manufacturer’s data.
Number of holes in adjacent construction corresponds to n a.
n x t 6 x 60°  Pitch
r1 min 0,6  mm
rmin 0,3  mm
t1 0,1  mm
m 0,45  kg  ≈ Mass
Ca 18800  N  Basic dynamic load rating, axial
C0a 31000  N  Basic static load rating, axial
Cua 1420  N  Fatigue limit load, axial
nG Fett 7600  1/min  Limiting speed for grease lubrication
nϑ 3300  1/min  Thermally safe operating speed
MRL 0,24  Nm  Bearing frictional torque
caL 450  N/µm  Axial rigidity
ckL 80  Nm/mrad  Tilting rigidity
Mm 0,132  kg * cm^2  Mass moment of inertia for rotating inner ring

5  µm  Axial runout
The axial runout data for screw drive bearing arrangements are based on the rotating inner ring.

ZM17  Recommended INA precision locknuts with radial clamping

The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately.

AM17  Recommended INA precision locknuts with axial clamping

The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately.
MA 15  Nm  Tightening torque

Only valid in conjunction with INA precision locknuts.
Observe the guidelines on locating/locating bearing arrangements.

7514  N  Requisite locknut force, axial

The requisite axial locknut force must be observed when using other locknuts.



Here below is the exact bearing codes information:



Designation Mass


Dimensions



Dimensions

t Setscrew Basic Load Ratings Limiting


d D B d1 D1 r r1 J d2 b l


Cr Cor Speed




-0.25 min. min. min. min.


min.
spec amount Dynamic Static grease

Kg


mm



mm

Q'ty×t

kN Rpm
ZKLF 1255.2RS 0.37 12 55 25 25 33.5 0.3 0.6 42 6.5 3 17 3×120° M6 3 17 24.7 3800
ZKLF 1255.2Z 0.37 12 55 25 25 33.5 0.3 0.6 42 6.5 3 17 3×120° M6 3 17 24.7 7600
ZKLF 1560.2RS 0.43 15 60 25 28 36 0.3 0.6 46 6.5 3 17 3×120° M6 3 17.9 28 3500
ZKLF 1560.2Z 0.43 15 60 25 23 12 0.3 0.6 46 6.5 3 17 3×120° M6 3 17.9 28 7000
ZKLF 1762.2RS 0.45 17 62 25 23 12 0.3 0.6 48 6.5 3 17 3×120° M6 3 18.8 31 3300
ZKLF 1762.2Z 0.45 17 62 25 25 14 0.3 0.6 48 6.5 3 17 3×120° M6 3 18.8 31 6600
ZKLF 2068.2RS 0.61 20 68 28 25 14 0.3 0.6 53 6.5 3 19 4×90° M6 4 26 47 3000
ZKLF 2068.2Z 0.61 20 68 28 30 16 0.3 0.6 53 6.5 3 19 4×90° M6 4 26 47 5400
ZKLF 2575.2RS 0.72 25 75 28 30 16 0.3 0.6 58 6.5 3 19 4×90° M6 4 27.5 55 2600
ZKLF 2575.2Z 0.72 25 75 28 32 20 0.3 0.6 58 6.5 3 19 4×90° M6 4 27.5 55 4700
ZKLF 3080.2RS 0.78 30 80 28 32 20 0.3 0.6 63 6.5 3 19 6×60° M6 6 29 64 2200
ZKLF 3080.2Z 0.78 30 80 28 34 23 0.3 0.6 63 6.5 3 19 6×60° M6 6 29 64 4300
ZKLF 3590.2RS 1.13 35 90 34 34 23 0.3 0.6 75 8.5 3 25 4×90° M8 4 41 89 2000
ZKLF 3590.2Z 1.13 35 90 34 40 25 0.3 0.6 75 8.5 3 25 4×90° M8 4 41 89 3800
ZKLF 40100.2RS 1.46 40 100 34 40 25 0.3 0.6 80 8.5 3 25 4×90° M8 4 43 101 1800
ZKLF 40100.2Z 1.46 40 100 34 45 32 0.3 0.6 80 8.5 3 25 4×90° M8 4 43 101 3300
ZKLF 50115.2RS 1.86 50 115 34 45 32 0.3 0.6 94 8.5 3 25 6×60° M8 6 46.5 126 1500
ZKLF 50115.2Z 1.86 50 115 34 50 40 0.3 0.6 94 8.5 3 25 6×60° M8 6 46.5 126 3000
ZKLF 60145.2Z 4.3 60 145 45 50 40 0.3 0.6 120 8.5 3 35 6×60° M8 8 84 214 3000
ZKLF 70155.2Z 4.9 70 155 45 59 45 0.3 0.6 130 8.5 3 35 8×45° M8 8 88 241 2800
ZKLF 80165.2Z 5.3 80 165 45 59 45 0.3 0.6 140 8.5 3 35 8×45° M8 8 91 265 2700
ZKLF 90190.2Z 8.7 90 190 55 64 50 0.3 0.6 165 10.5 3 45 8×45° M10 8 135 395 2300
ZKLF 100200.2Z 9.3 100 200 55 64 50 0.3 0.6 175 10.5 3 45 8×45° M10 8 140 435 2150



Product Overviews

ZKLF2575-2RS/P4 Thrust angular contact ball screw bearings for the machines tools

Product Tags: ZKLF-3080-2RS/P4 , angular contact ball screw bearings , Spindle bearings
