706CHQ1P4GA Spindle Bearing

706CHQ1P4GA Spindle Bearing thumbnail-1
706CHQ1P4GA Spindle Bearing thumbnail-2
706CHQ1P4GA Spindle Bearing thumbnail-3
706CHQ1P4GA Spindle Bearing photo-1

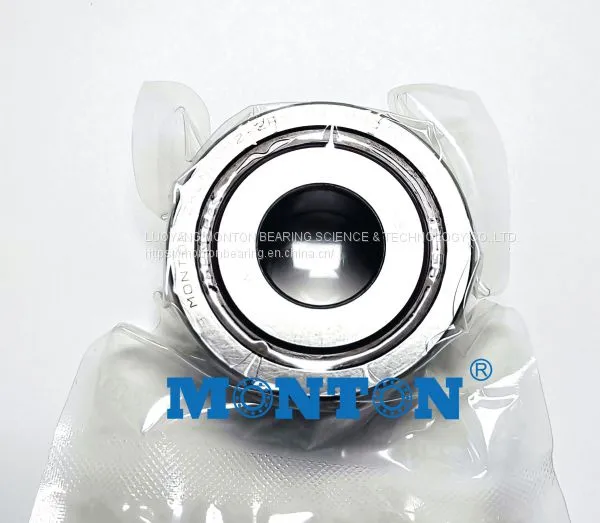

706CHQ1P4GA Spindle Bearing photo-2

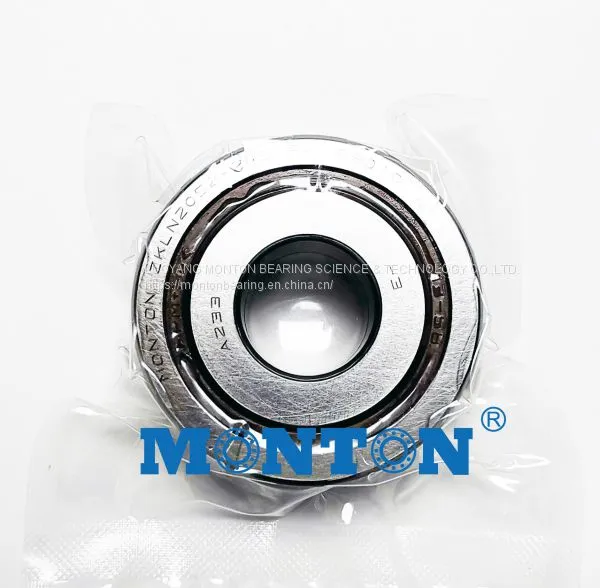

706CHQ1P4GA Spindle Bearing photo-3
US$ 100 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
706CHQ1P4GA
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MONTON
Place of Origin China
Model Number 706CHQ1P4GA
Number of Row Single Row
Seals Type seals
Precision Rating P4
Outside Diameter 10, 1000
Bore Size 10, 1000
d
6 mm
D
17 mm
B
6 mm
d1
9.5 mm
d2
9.5 mm
D1
13.5 mm
r1,2 min. 0.3 mm
r3,4 min. 0.15 mm
a
4.6 mm










da min. 8 mm
db min. 8 mm
Da max. 15 mm
Db max. 16.2 mm
ra max. 0.3 mm
rb max. 0.15 mm
dn
10.3 mm





Calculation   data



Basic dynamic   load rating C
2.03 kN
Basic static   load rating C0
0.765 kN
Fatigue load   limit Pu
0.032 kN
Attainable   speed for grease lubrication

120000 r/min
Attainable   speed for oil-air lubrication

180000 r/min
Contact angle α
15 °
Ball diameter Dw
3.175 mm
Number of   balls z
8
Reference   grease quantity Gref
0.09 cm³
Preload and   stiffness (back-to-back, face-to-face)



Preload class   A GA
7 N
Static axial   stiffness, preload class A

8 N/µm
Preload class   B GB
13 N
Static axial   stiffness, preload class B

11 N/µm
Preload class   C GC
25 N
Static axial   stiffness, preload class C

14 N/µm
Preload class   D GD
50 N
Static axial   stiffness, preload class D

20 N/µm
Calculation   factors



Calculation   factor f
1.01
Calculation   factor f1
1
Calculation   factor f2A
1
Calculation   factor f2B
1.02
Calculation   factor f2C
1.05
Calculation   factor f2D
1.09
Calculation   factor fHC
1
Calculation   factor f0
8.3
Mass



Mass bearing

0.006 kg
