707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing

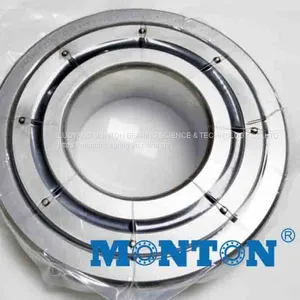

707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing thumbnail-1
707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing thumbnail-2
707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing thumbnail-3
707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing thumbnail-4
707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing photo-1

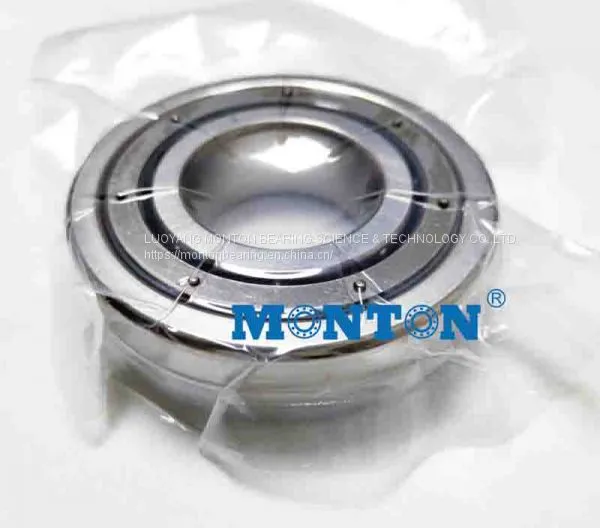

707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing photo-2
707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing photo-3

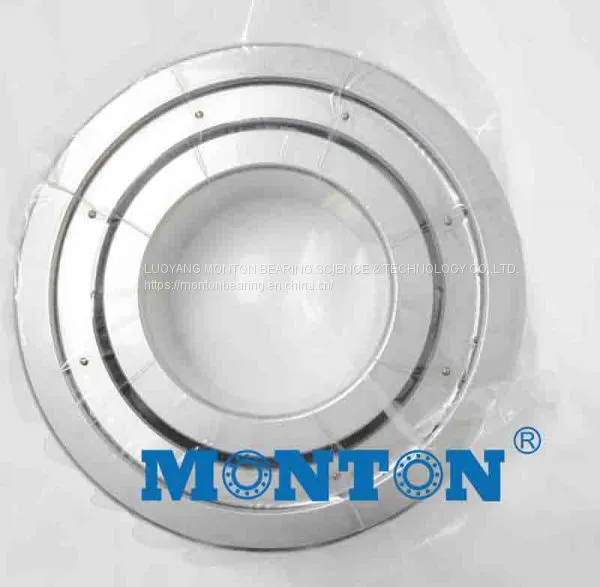

707CHQ1P4GA7*19*6mm High Preicison High Speed Angualr Contact Ball Bearing photo-4
US$ 100 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
707CHQ1P4GA
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MONTON
Place of Origin China
Model Number 707CHQ1P4GA
Number of Row Single Row
Seals Type seals
Precision Rating P4
Outside Diameter 10, 1000
Bore Size 10, 1000

707CHQ1P4GA

d
7 mm
D
19 mm
B
6 mm
d1
10.8 mm
d2
10.8 mm
D1
15.2 mm
K
0.5 mm
C1
3.65 mm
r1,2 min. 0.3 mm
r3,4 min. 0.15 mm
a
4.8 mm





da min. 9 mm
db min. 9 mm
Da max. 17 mm
Db max. 18.2 mm
ra max. 0.3 mm
rb max. 0.15 mm
dn
11.7 mm





Calculation   data



Basic dynamic   load rating C
2.51 kN
Basic static   load rating C0
0.98 kN
Fatigue load   limit Pu
0.04 kN
Attainable   speed for grease lubrication

100000 r/min
Attainable   speed for oil-air lubrication

160000 r/min
Contact angle α
15 °
Ball diameter Dw
3.572 mm
Number of   balls z
8
Reference   grease quantity Gref
0.12 cm³
Preload and   stiffness (back-to-back, face-to-face)



Preload class   A GA
8 N
Static axial   stiffness, preload class A

9 N/µm
Preload class   B GB
15 N
Static axial   stiffness, preload class B

11 N/µm
Preload class   C GC
30 N
Static axial   stiffness, preload class C

15 N/µm
Preload class   D GD
60 N
Static axial   stiffness, preload class D

22 N/µm
Calculation   factors



Calculation   factor f
1.03
Calculation   factor f1
1
Calculation   factor f2A
1
Calculation   factor f2B
1.02
Calculation   factor f2C
1.05
Calculation   factor f2D
1.09
Calculation   factor fHC
1
Calculation   factor f0
8.1
Mass



Mass bearing

0.008 kg

radial section bearing

radial section bearings

radial spherical bearing

radial spherical bearing factory

radial spherical plain bearing factory

radial spherical plain bearing non-standard

radial spherical plain bearing non-standard manufacturer

radial spherical plain bearing non-standard supplier

radial spherical plain bearing supplier

radial spherical plain bearing suppliers

radial thin section bearing

radial thin section bearings

radial thrust bearing

radial thrust bearing

radial thrust bearings

radial und axiallager


Product Tags: 707CHQ1P4GA , spindle bearing
