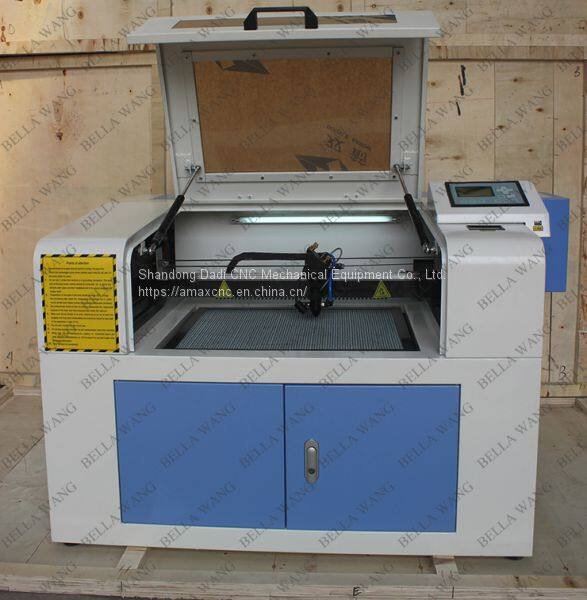

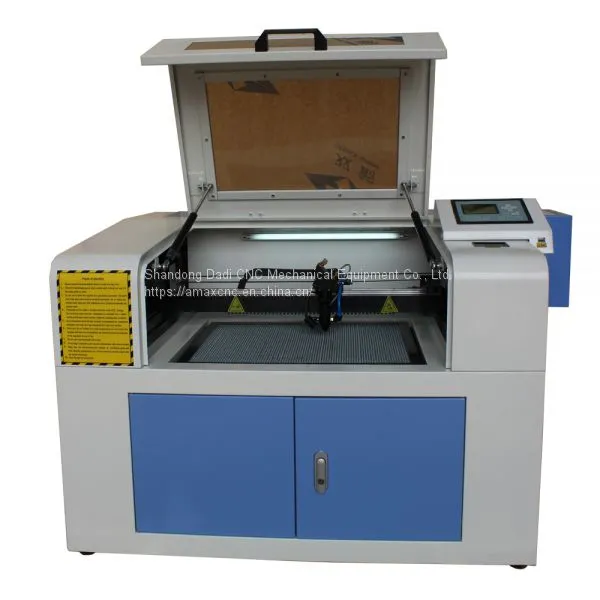

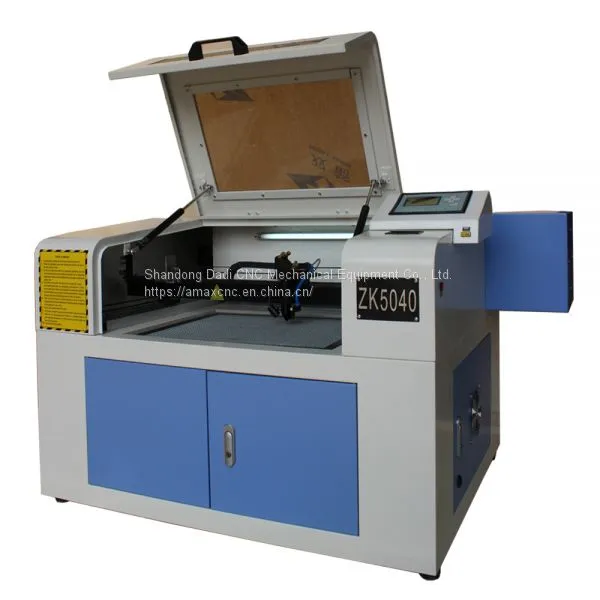

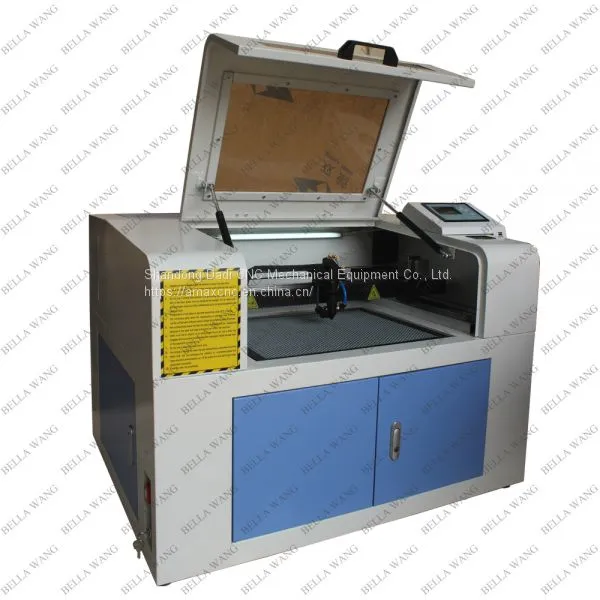

MDF CO2 Laser Engraving Cutting Machine 500*400mm 19.7"*15.7"
FEATURES:
Equipped with a 50W CO2 laser tube optional 60W or 80W upgrade
Compatible with CorelDRAW® Graphics Top rated professional vector illustration, layout, photo editing and design software helps you work faster and smarter with your laser.
New! Features 2 material "Tru-Pass-Thru" points for greater material processing
NEW! Auto Focus function automatically calibrates the distance between the material and laser for optimum focus.
NEW! Inline Beam Combiner precisely illuminates a red dot over the material for improved accuracy and alignment
Wi-Fi or USB connectivity to PC Option
Illuminated LCD panel for automated laser head control .
Motorized Z-Table lowers Z-axis 7" for larger materials.
Optional Water Chiller /pump (CW-3000 or 5000) keeps water flowing thru CO2 Tube at ambient temperature.
Includes Large 260 CFM exhaust fan + Max air compressor for air assist at laser head.
Convenient vacuum table under the Z-table collects finished product into sliding tray.
Both Honey Comb and Knife Blade Platform included for securing maximum material capacity
CNC machined parts in stock for long term service and reliability
Upgraded ball bearing Y axis guide rails ensures smooth & precise laser head movement

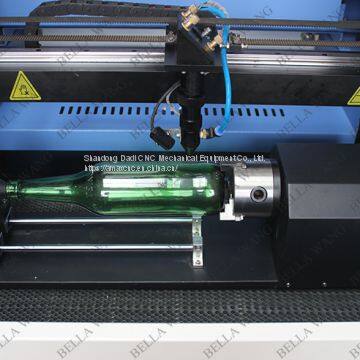

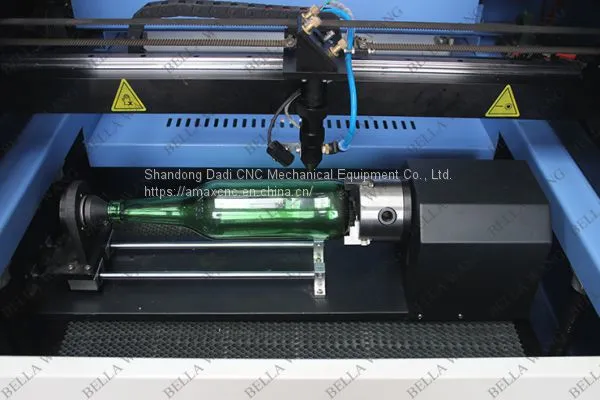

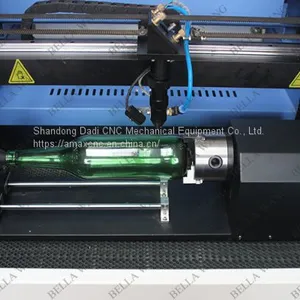

Optional Rotary chuck or roller attachment for etching cylindrical objects
Compatible with Windows 10, 8, 7 (64 or 32 bit), XP operation systems
Dedicated China technical support from qualified service technicians and engineers.
Free Lifetime Tech Support via. phone, email, chat, or remote computer access!
30 Day Optional Return Policy.
1-Year Warranty covers parts replacement including the Laser Tube.
shipping not included in price. Call for shipping quote.
If you have more questions, please send inquiry to us . Whatsapp:+8615154153199
SPECIFICATIONS:
Cutting Area | 19.7" x 15.7" or 23.6" x 15.7" |
Work Table Capacity | 260lb. static 180lb. lifting |
Laser Power | 50W, 60W or 80W options |
Software Interface | Ruida control system ,USB interface |
Material Capability | Organics / non-metals + pre-treated metals |
Machine Dimensions | 81.1"L x 46.5"W x 44.5"H (with 60W tube extension) |
Motor type | China Stepper |
Venting Attachments | Air exhaust fan with venting pipe |
Material platform | Equipped with Honeycomb & Knife Blade cutting platforms |
Z table | Motorized Z (7 in. adjustable) |
Net Weight | 400 lbs. |
Power Supply | Standard AC 110V (220V upon request) |
OS Compatibility | Windows XP, Vista, 7, 8, 10 (32 or 64 bit) |
Software Interface | Ruida (includes image processing) |
Laser / PC Connectivity | USB connect or WiFi option |
Job Memory Capacity | 128mb via. USB flash drive |
Warranty | 12 months (includes parts & CO2 glass tube) |
APPLICATIONS:
Just like you would use your PC to send jobs to print on an inkjet printer you can also use your PC to send jobs to a laser cutter. However, unlike a normal printer that only prints on paper laser cutting machinery can cut or engrave almost any type of organic material as well as treated or painted metals. Some of the more popular materials that you can laser cut or engrave are: anodized aluminum, wood, acrylic, leather, stone, fabric, plastics, glass and much more. In fact many of the samples we process for client evaluation involve materials that we never would have believed to be laserable.
Aside from laser cutting materials some of the popular laser cutting markets or business opportunities include: Signage and name badges, trophies and rewards, treated steel, personalized wood products, ceramic gift items, and corporate novelties, rubber stamps, barcodes, etched mirrors and glass, fabrics and clothing, Industrial labels and tags, plastics and acrylic, cut outs, and etched marble tops.
