Specifications
1)Co2 laser machine for cutting PVC2)40/60/80 laser tube
3)Water cooling system
4)ISO/CE
5)Manufacturer
Co2 laser machine for cutting PVC
Computerized laser cutting machine
1,USB interface
2,High speed and more precision
3.LCD operate panel
4.Support coreldraw,AutoCAD
In order to meet the demands of large-size sheets cutting, we adopt solid stable chassis for XTL-1325 laser cutting bed, which ensures its stability and precision when working in high speed. Open style machine table is more convenient for material loading.
Applicable materials: acrylic, wood, cloth, leather, bamboo, mdf, plywood, glass, pvc, rubber, cardboard, etc.
Applicable industries: advertising, garments sampling, leather industry, shoemaking, decoration, furniture, printing, art crafts, etc.
Technical Parameters
Machine model: |

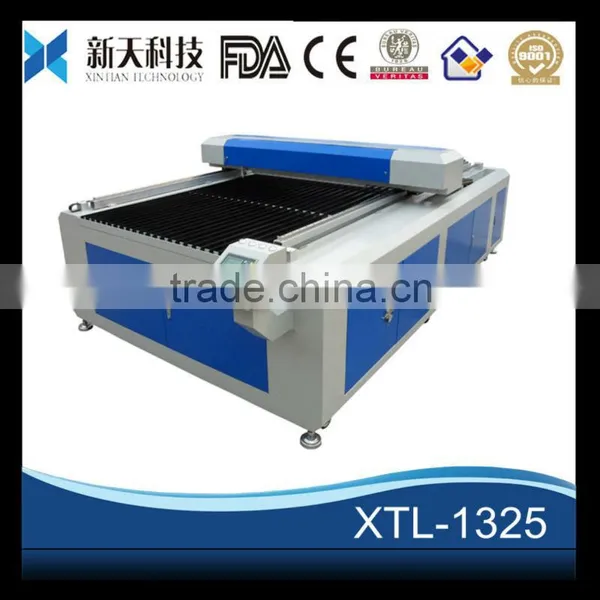

XTL-1325 Laser Cutting Bed |
Laser type: |
Sealed CO2 laser tube, wavelength: 10.64μm |
Laser power: |
60W / 80W / 100W / 150W / 180W |
Cooling mode: |
Circulating water cooling |
Laser power control: |
0-100% software control |
Control system: |
DSP offline control system |
Max. engraving speed: |
60000mm/min |
Max cutting speed: |
50000mm/min |
Repetition accuracy: |
0.01mm |
Min. letter: |
Chinese: 1.5mm; English: 1mm |
Table size: |
1300 x 2500mm |
Working voltage: |
110V/220V,50~60Hz |
Working conditions: |
temperature: 0-45°C, humidity: 5%-95% |
Control software language: |
English / Chinese |
File formats: |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc |

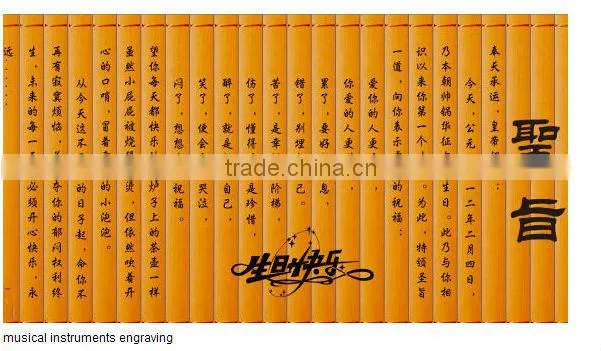

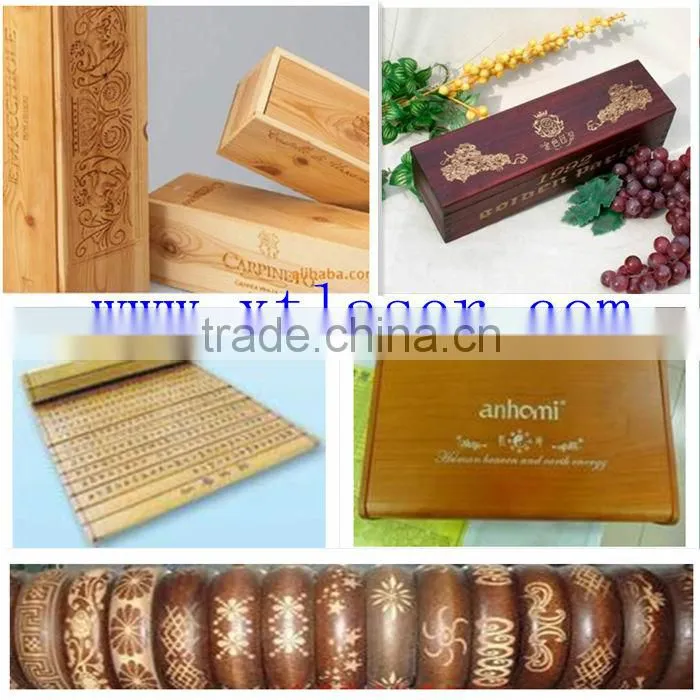

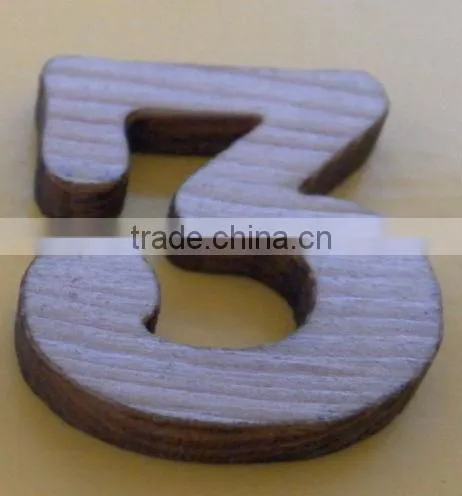

Smaple Picture :
Certifications:
Exhibitions:
About us:
Other products:
Name cards:
Please advise us the following information, so that we can recommend you the most suitable model quickly, feel free to contact us soon !
(1) Which Material will be processed? stainless steel,metal,wood,acrylic,fabric,leather,textile etc.?
(2) What is the size and thickness of the material?
(3)What is your business scope? Are you a distributor or end-user ?
