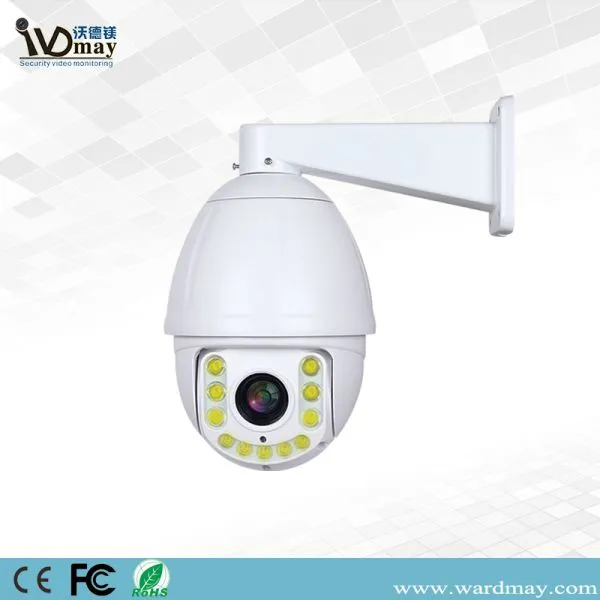

NEW 1080P 20X Zoom Full Color in Day & Night Blacklight PTZ IP Camera From CCTV Cameras Supplier
Features
* Super Starlight Chips (SONY 307)
* 2.0 Megapixels, 20X Zoom(4.7-94mm lens)
* Super clear day and night color image
* Intelligent dimming (according to the intensity of the ambient light to change the brightness of the fill light, prevent overexposure, faster recognition of person faces)
* Low illumination, no need to add too much light, two lights like two similar indicators, not dazzling, good quality.
* PWM function, intelligent Light illumination & power consumption is variable, dependant the zoom factor
* Night Vision 150m
* With waterproof microphone & bracket
* Support two way audio, with horn interface
Specifications
| Product Name | Full Color in Day & Night 2.0MP 20X Zoom Speed Dome HD IP Camera |
| Camera | |
| Model Number | WDM-IPL8816-20X |
| Image Sensor | 1/2.8” 2.0M Pixel HI3156EV100+Sony307 CMOS |
| WDR | Support |
| SNR | ≥50dB（AGC OFF） |
| Min. Illumination | 0.0001Lux@F1.2(Color Mode); 0.0001 Lux@F1.2(B&W mode); 0Lux(IR CUT ON) |
| D/N mode | Auto IR-CUT switch, B/W, Color, Outer control |
| Gain Control | Auto/ Manual |
| White Balance | Auto, Indoor, Outdoor, Sodium Lamp, Manual |
| DNR | Support 2DNR, 3DNR |
| Exposure Mode | Program mode (customizable shutter interval ), shutter mode (1/5- 1/20,000s), support slow shutter |
| Network | |
| Video Compression | H.265 Main Profile / H.264 High profile / M-JPEG |
| Max Image Size | 1920x1080@ 30fps |
| Video Resolution | Main stream: 1920*1080, 1280*960, 1280*720,720*576, 640*480 |
| Sub-stream: 640*480,480*360, 352*288, 320*240, 176*144 | |
| Output code rate | CBR or VBR: 32K~10M |
| Visit NO. | 3 Users in Mainstream, 6 Users in Substream |
| Protocols | TCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P |
| ONVIF Protocol | Standard ONVIF2.4 |
| Compatibility | Support HIKVISION、DAHUA、XM CMS、SEETONG UC2、Aebell NVR I8 ONVIF platform、NVR ONVIF protocol |
| Mobile P2P | Support Android、IOS visit |
| Network interface | 1ch 10/100BaseT Ethernet, RJ45 |
| IR parameters | |
| Lens | 20X optical zoom, f=4.7-94mm, D/N( ICR-Cut) ,F1.6~F1.8 |
| Leds | 11pcs warm soft leds |
| Auto Control Soft LED | PWM |
| Night vision distance | 150M |
| Dome Features | |
| Rotation Range | Pan: 0°~360° , Tilt: 0°~93° |
| Pan rotation speed | 200°/s |
| Tilt rotation speed | 100°/s |
| Auto Flip | Horizontal 180°, Vertical 93° |
| A-B scan | User programmabel(scan speed 1-9 levels setting available) |
| Preset points | 220 |
| Actual preset Accuracy |
±0.10° |
| Accuracy | 3 groups( Max.16 points, dwell time user electable) |
| Operation OSD language | Chinese /English |
| General | |
| Certification | RoHs ,CE,FCC,IP66 |
| Work temperature | -40℃~+60℃ |
| Work Humidity | 0%~95% (Non condensing) |
| Temperature control | Intelligent control |
| Power | DC 12V4A |
| Consumption | ≤20W |
Product Show
How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;
Lead Time:
1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY
-- The 6th year golden supplier of Made-In-China
