7" 36X 2.0MP High Speed HD-IP PTZ Camera with OSD
Features
* 7" double layer metal body construction, IP66 rate protection
* 1/2.8" Low Lux CMO2.00 Megapixels, 36X optical zoom
* HD-IP digital interface output, 2.0MP high definition image
* PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom facto
* IR distance 150M
* Support P2P function, Android/iPhone view, OSD menu is available
* Applicable scenarios: warehouses, underground parking lots, factories street, a park, high speed motorway, etc
Specifications
| Product Name | 7” 36X 2.0MP High Speed HD-IP PTZ Camera with OSD | |
| Camera | Mode Number | WDM-IP8816R/36X |
| Image Sensor | MSTAR MSC313E | |
| Effective Pixels | 1/2.8" starlight CMOS SONY IMX307, 2.0 Megapixels | |
| Min. Illumination | Color 0.01Lux@(F1.6, AGC ON) ; black and white 0.001Lux@(F1.6, AGC ON) | |
| Zoom | 36X optical zoom,f= 4.6mm-165mm | |
| Day/Night | Day / Night / External control (IR Cut Filter) | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | Digital WDR≥70dB | |
| AGC | Auto / Manual | |
| White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| Digital noise Reduction | DNR, 3DNR | |
| Network | Video Compression | H.265/H.264/M-JPEG |
| Max Image Size | 1920*1080@20fps | |
| Streams | Dual streams | |
| Frame Rate | Main stream: 2.0MP: 1920*1080，1-20fps | |
| Main stream: 1.0MP: 1280*720，1-30fps | ||
| Bitrate | CBR/VBR, bitrate; 32Kbps~10Mbps variable | |
| Audio Compression | G711/ACC | |
| P2P | Android / IOS | |
| Protocols |
TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS ，DNS，PPPoE，P2P |
|
| Motion detect | Support | |
| Privacy Zone Masking | Support | |
| Onvif | Onvif 2.4 | |
| IR parameters | Night vision distance | 150M |
| Dome Features | Pan Range | Level: 360; vertical: 93 |
| Tilt Range | 0~93°(Auto Flip) | |
| Manual pan speed | 0-120°/s | |
| Manual tilt speed | 0-60°/s | |
| Proportional transmission |
Automatic matching of speed and focal length | |
| Preset points | 220 | |
| Operation OSD language |
Chinese /English | |
| General | Work temperature | -40℃～+70℃ |
| Work Humidity | 0%~95% (Non condensing) | |
| Temperature control | Intelligent control | |
| Power | DC12V(3A) / AC24V（3A） | |
| Consumption | ≤15W | |
| Lightning Protection | Transient Voltage 6000V | |

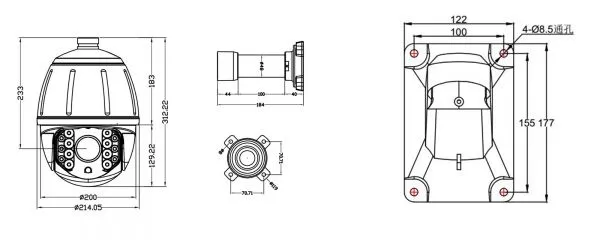

Product Show
