4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole

4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole thumbnail-1
4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole thumbnail-2
4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole thumbnail-3
4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole thumbnail-4
4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole photo-1
4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole photo-2
4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole photo-3
4m Aluminum Pneumatic Telescopic Cctv Camera Mast Pole photo-4
US$ 200 - 500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Talents telescopic cctv camera mast pole
Place of Origin:
Tianjin, China
Model Number:
04-Tal-mast
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents telescopic cctv camera mast pole
Place of Origin Tianjin, China
Model Number 04-Tal-mast
Product Description
model
4m Aluminum Pneumatic telescopic cctv camera mast pole
exteneded length
4m
closed length
1.4m
payload
no less than 30kg
OD
top 66-87mm
material
aluminum alloy
accessories
foot pump,air tube and tripod etc.
No. of section
3

we supply telescopic mast up to 35m,it can bear payload
not less than 10kg,usually used as antenna mast,communication tower,
light support,camera mast and so on
A.it can be adjusted to any length

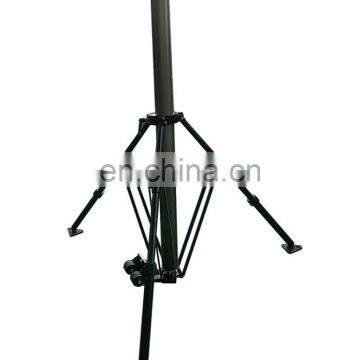

B.it can be mounted on the vehicle or stand on the ground with tripod
C.high strenght can bear large payload
besides,there are 3 designs for choice
A.handlifting telescopic mast
B.electric lifting&hand lifting telescopic mast
C.pneumatic telescopic mast
material:usually aluminum alloy

Detailed Images
4m Aluminum Pneumatic telescopic cctv camera mast pole

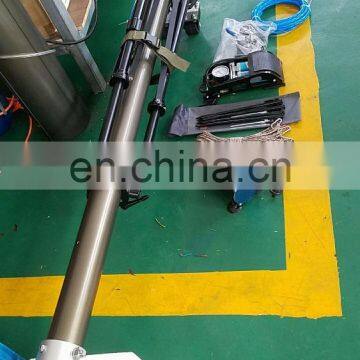

accessories
model
unit
guy wire
1 set
ground anchor
1 set
air compressor or manual pump
1 unit
tripod or car clamp
1 unit
top plate
1 unit
bottom base
1 unit

more details as follows

Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast

Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a truck or car
The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories
Control box:With the swift for up and down, small air compressor
Air pipe,Pressure gauge
Basic guy accessories

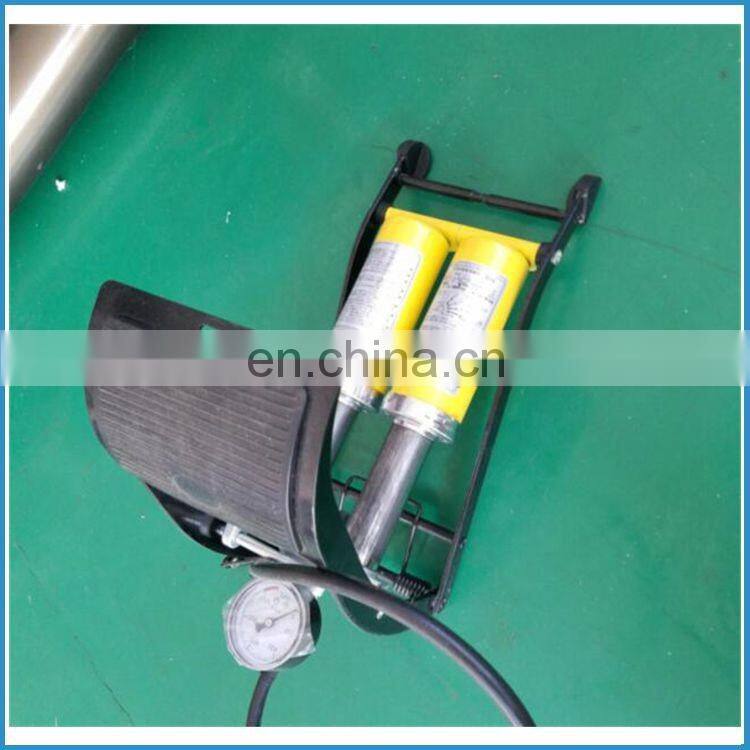

manual hand pump

Packing & Delivery

4m Aluminum Pneumatic telescopic cctv camera mast pole

package
carton packed
normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
plywood packed
normal package is plywood case for extended height more than 10m, weight more than
70kg mast

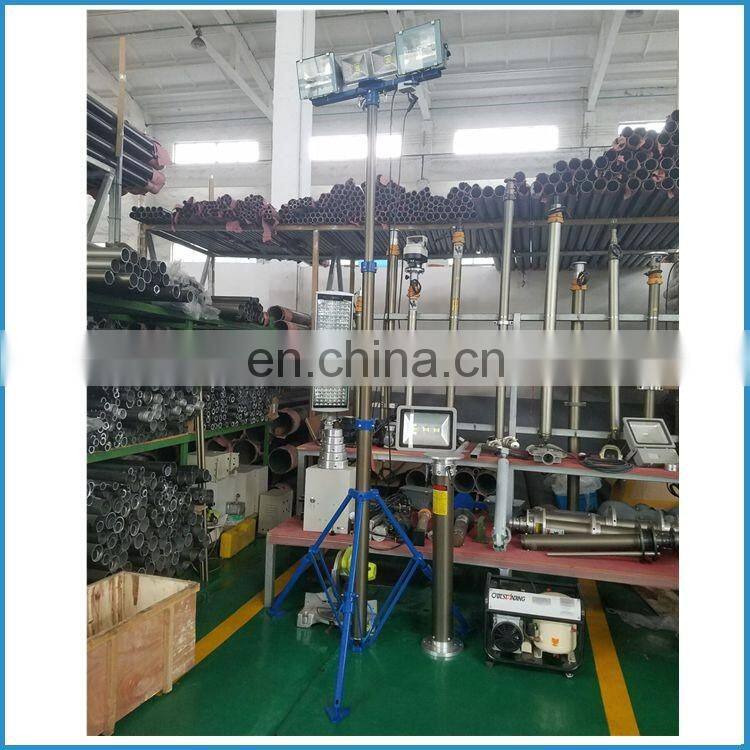

Workshop
After-sale service
 Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel    stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
 oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
  it’s better  mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
     using 10 thousand times.
Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade pneuamtic mast as follows
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
max. head loads(kg)
self weight
(kg)
2
2
1.3
118-98
150
22
3
4
1.1
87-43
30
25
6
5
1.7
118-51
30
42
8
7
1.8
140-36
30
65
10
7
2.20
140-36
30
72
12
7
2.6
140-36
15
85
15
7
3.0
140-36
20
90
16
8
3
180-51
30
175
18
10
3
279-66
100
330
20
9
3.3
229-66
55
300
30
13
4
316-51
30
630
Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:0086 18222428293

wechat: 1093812653

W:

if you get interested in our telescopic mast, please contact us at any time for catalog and videos
