Telescopic Aluminum VHF Antenna Tower

Telescopic Aluminum VHF Antenna Tower thumbnail-1
Telescopic Aluminum VHF Antenna Tower thumbnail-2
Telescopic Aluminum VHF Antenna Tower thumbnail-3
Telescopic Aluminum VHF Antenna Tower photo-1
Telescopic Aluminum VHF Antenna Tower photo-2
Telescopic Aluminum VHF Antenna Tower photo-3
US$ 303.78 - 359.9 MOQ: 5 Units
Key Specifications
Get Latest Price
Brand Name:
Talents,VHF antenna tower
Place of Origin:
Tianjin, China
Model Number:
Tal-P3.0-1.5-50-A8
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents,VHF antenna tower
Place of Origin Tianjin, China
Model Number Tal-P3.0-1.5-50-A8
Product Description

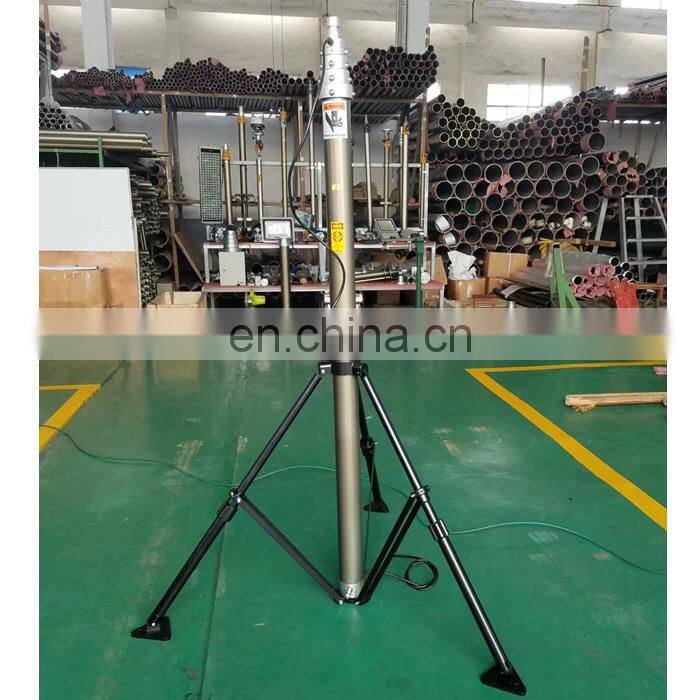

                                             telescopic aluminum VHF antenna tower

                                                               telescopic aluminum VHF antenna tower









Specification for the telescopic aluminum VHF antenna tower

 Article number: TAL-P3.0-1.5-50-AT8
 Max top payload:  50kgs
 Closed length:  1500mm
 Extended length:  3000mm
 Main poles' sections:  3sections
      sec.1#(OD/ID/thickness):  66/60/3mm
      sec.2#(OD/ID/thickness):  82/75/3.5mm
      sec.3#(OD/ID/thickness):  98/90/4.0mm
 Bottom base size (dia./thickness):  160mm/12mm
 Top plate size (dia./thickness):  120mm/10mm
 Working temperature:  -15--+60C
 Air pump power:  AC220
 Wind load:  65km/h
 Pulling cord's OD:  2mm
 Material for main pole:  aluminum alloy 6063B
 Material for bottom base:  iron steel
 Material for accessories:  iron steel
 Material for air hose  PU tube
 Material for pulling cord:  Nylon
 Material for other asscessaires  iron steel

                                                    Packing list:

 Mian pole in 5 sections:      1 set
 Air pump(AC220v/300w):     1 set
 Air hose:     3 meters
 Bottom base:     1 piece
 top plate:     1 piece
 Pulling cord:     3 sets
 Ground anchor:     3 pieces
 Clamp:     1 piece
 Tripod:     1 set
 Hand operated valve     1 piece
 Surface color Technology:  phosphoric acid anodizing
 Packing method:

 One set to be packed into a carton with inside filled by Polyurethane foam







                                                  telescopic aluminum VHF antenna tower

              telescopic aluminum VHF antenna tower







                   1.  The telescopic mast is made of aluminum alloy or stainless steel tube.

                           2.  It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,

                                 photography, meteorological measurement equipments rise and drop to a certain

                                 height after its work.

                            3.   It can be mounted on the vehicle or stand on the ground with tripod.

                            4.   It has manual, motorized and pneumatic lifting method, the extended length up to 35m

                        and closed length to 1.3m.

                            5.  The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.







                         Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting

                         telescopic masts available for supply as follows, please refer to the catalogue attached below:



                telescopic aluminum VHF antenna tower





                                                                                                                      Pneumatic telescopic mast

Article No.

Retracted
height

(mm)

 Extended
height
(mm)		 Bottom
OD
(mm)		 TOP
OD
(mm)		 Section
NO.		 Head-load
(kg)
 TAL-2.0-1.3-150-AT8 1300 2000 118 98 2 150
 TAL-3.0-1.1-30-AT8 1100 3000 87 43 4 30
 TAL-3.0-1.5-50-AT8 1500 3000 98 66 3 50
 TAL-3.2-1.5-200-AT8 1500 3200 160 118 3 200
 TAL-3.2-1.5-250-AT8 1500 3200 180 140 3 250
 TAL-4.0-1.85-250-AT8 1850 4000 180 140 3 250
 TAL-4.0-1.3-30-AT8 1300 4000 87 43 4 30
 TAL-4.0-2.0-250-AT8 2000 4000 180 140 3 250
 TAL-4.0-1.2-10-AT8 1200 4000 87 43 4 10
 TAL-4.5-1.5-30-AT8 1500 4500 87 36 4 30
 TAL-4.5-1.2-30-AT7 1200 4500 140 51 6 30
 TAL-4.5-1.65-50-AT9 1650 4500 118 66 4 50
 TAL-5.0-1.75-35-AT9 1750 5000 98 51 4 35
 TAL-5.0-1.7-40-AT8 1700 5000 98 51 4 40
 TAL-5.0-1.75-110-AT8 1750 5000 140 82 4 110
 TAL-5.0-1.75-30-AT9 1750 5000 98 51 4 30
 TAL-5.0-1.45-10-AT8 1450 5000 87 43 4 10
 TAL-5.5-1.8-30-AT8 1800 5500 87 43 4 30
 TAL-6.0-1.7-30-AT8 1700 6000 118 51 5 30
 TAL-6.0-1.9-30-AT8 1900 6000 87 36 4 30
 TAL-6.0-1.95-60-AT8 1950 6000 118 66 4 60
 TAL-6.0-2.0-30-AT8 2000 6000 98 51 4 30
 TAL-6.0-1.75-12-AT8 1750 6000 87 28 5 12
 TAL-6.0-1.95-30-AT8 1950 6000 98 51 4 30
 TAL-6.0-2.0-50-AT9 2000 6000 118 66 4 50
 TAL-6.0-1.8-60-AT8 1800 6000 140 66 5 60
 TAL-6.0-1.95-30-AT8 1950 6000 87 43 4 30
 TAL-6.0-1.5-25-AT9 1500 6000 118 51 5 25
 TAL-6.0-1.8-15-AT8 1800 6000 98 51 4 15
 TAL-7.0-1.95-40-AT8 1950 7000 118 51 5 40
 TAL-8.0-1.8-30-AT9 1800 8000 140 36 7 30
 TAL-8.0-1.8-50-AT9 1800 8000 160 51 7 50
 TAL-8.0-2.2-30-AT8 2200 8000 118 51 5 30
 TAL-8.0-2.5-250-AT8 2500 8000 229 118 5 250
 TAL-8.0-2.2-60-AT7 2200 8000 140 66 5 60
 TAL-8.0-2.0-25-AT8 2000 8000 118 36 6 25
 TAL-8.0-2.0-25-AT9 2000 8000 118 36 6 25
 TAL-8.4-2.3-30-AT8 2300 8400 118 51 5 30
 TAL-9.0-2.15-30-AT8 2150 9000 140 51 6 30
 TAL-9.0-2.4-30-AT8 2400 9000 118 51 5 30
 TAL-10.0-2.2-20-AT8 2200 10000 140 51 6 20
 TAL-10.0-2.4-30-AT7 2400 10000 140 51 6 30
 TAL-10.0-2.2-15-AT8 2200 10000 140 36 7 15
TAL-10.0-2.4-15-AT8 2400 10000 118 36 6 15
 TAL-12.0-2.7-250-AT8 2700 12000 279 140 7 250
 TAL-12.0-2.6-15-AT9 2600 12000 140 36 7 15
 TAL-12.0-2.6-15-AT8 2600 12000 180 51 7 15
 TAL-12.0-2.6-30-AT9 2600 12000 160 36 7 30
 TAL-15.0-3.2-30-AT9 3200 15000 160 51 7 30
 TAL-15.0-3.0-20-AT8 3000 15000 140 36 7 20
 TAL-15.0-2.65-20-AT8 2650 15000 180 30 9 20
 TAL-15.0-3.5-150-AT9 3500 15000 229 98 6 150
 TAL-16.0-3.0-30-AT8 3000 16000 180 51 8 30
 TAL-18.0-3.3-220-AT9 3300 18000 280 118 8 220
 TAL-18.0-3.0-100-AT8 3000 18000 279 66 10 100
 TAL-20.0-3.3-55-AT8 3300 20000 229 66 9 55
 TAL-30.0-4.0-30-AT8 4000 30000 316 51 13 30
