Product Description

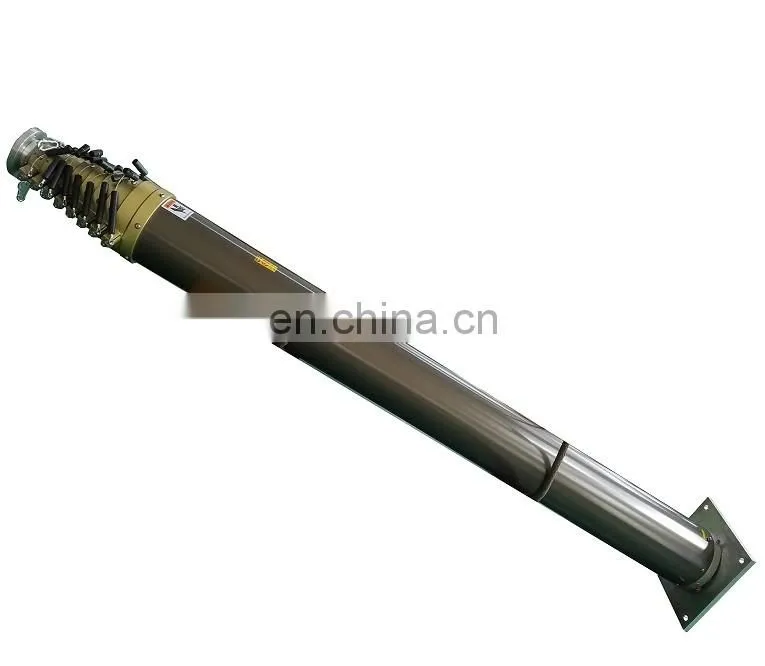

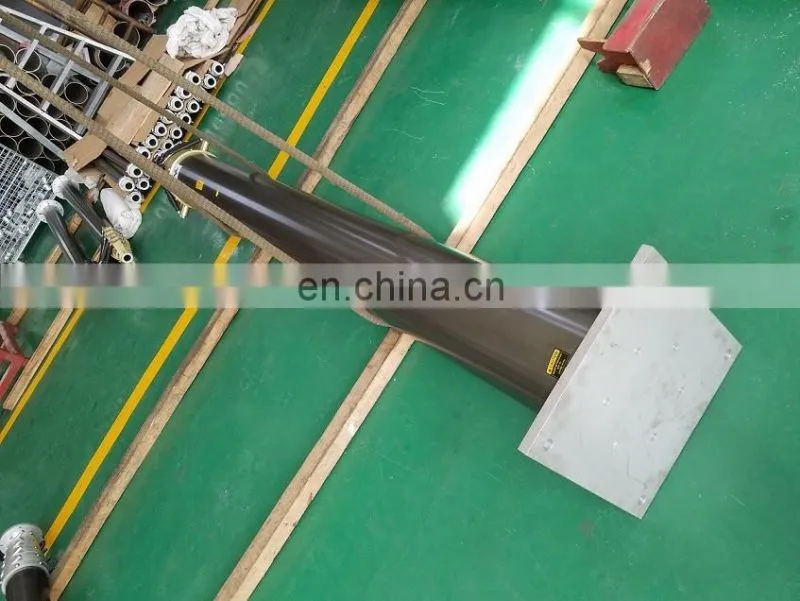

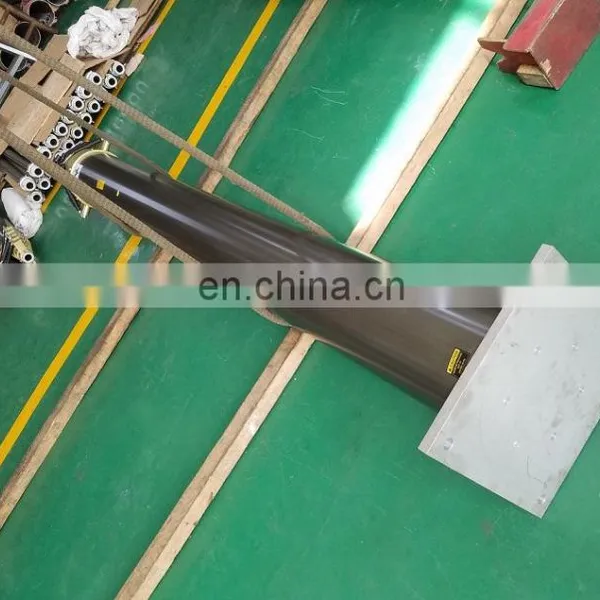

25m telecom antenna pole Telescopic communication light pneumatic wifi tower mast
technical data
main spec.
1)Extended height: 25m
2)Retracted height: 4m
3)Outer diameter range：98-118-140-160-180-202-229-252-279-316mm
4)Thickness: 4-4-5-5-5-6-6-6-7-8mm
5)Maximum head loads: 150kgs
 6)Number of sections: 10sections
7)Wind load :100 km/h
8)Max Working pressure of air compressor：0.25MPA
9)Working temperature :-15--+60℃
10)cable:1pc CAT5 for camera+2pcs AWG14 for light+2pcs RG59 for VHF antenna
All cables installed inside of mast
Accessories
Car clamp--------------------------------------------------1 unit
Ground anchor------------------------------------------8 pieces

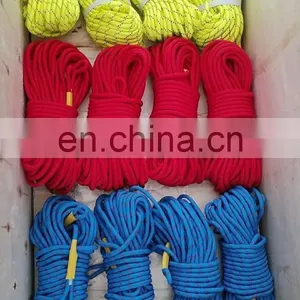

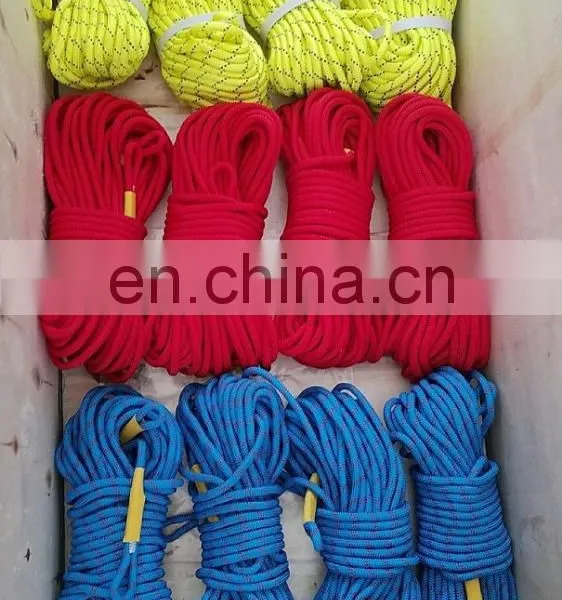

Guy wire----------------------------------------------------8 pieces

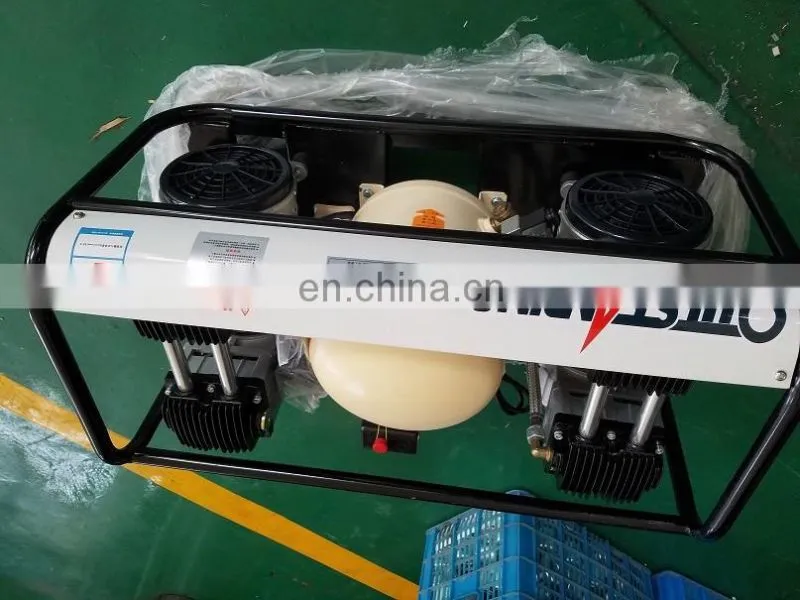

Air pump---------------------------------------------------1 piece
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
Material
Al-Mg alloy 6063
Color
bronze
accessories
model
unit
guy wire
1 set
ground anchor
1 set
air compressor or manual pump
1 unit
tripod or car clamp
1 unit
top plate
1 unit
bottom base
1 unit

more details as follows

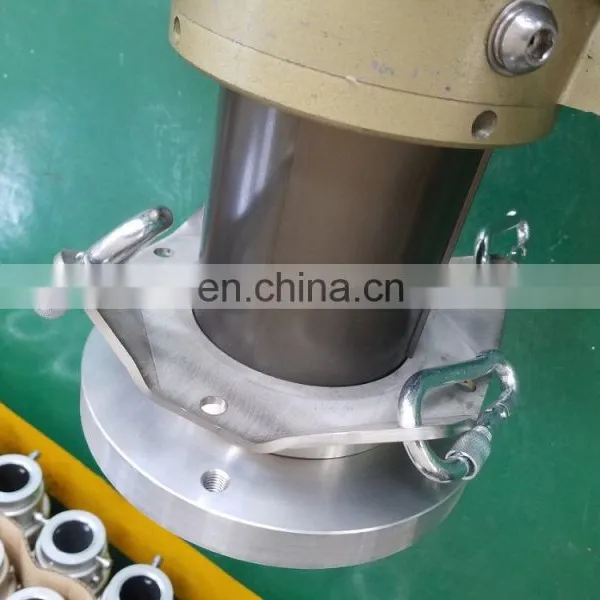

Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast

Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a truck or car

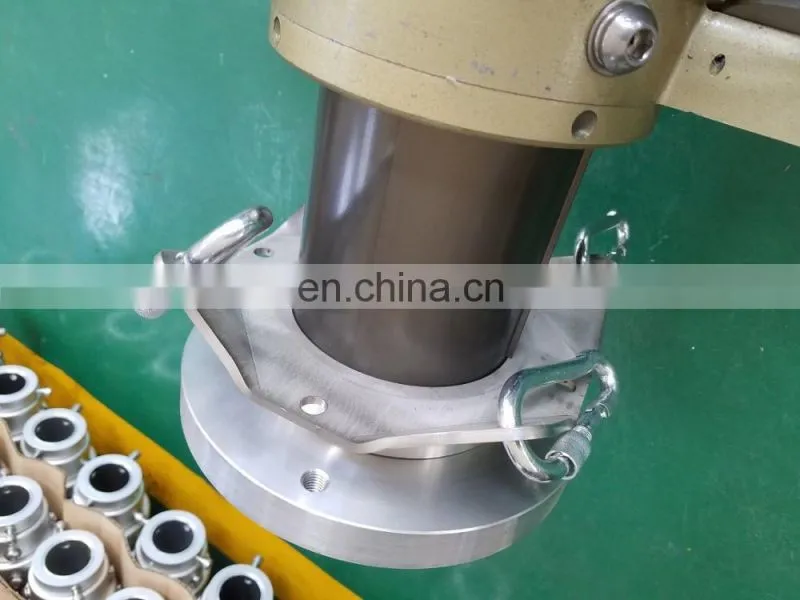

The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories

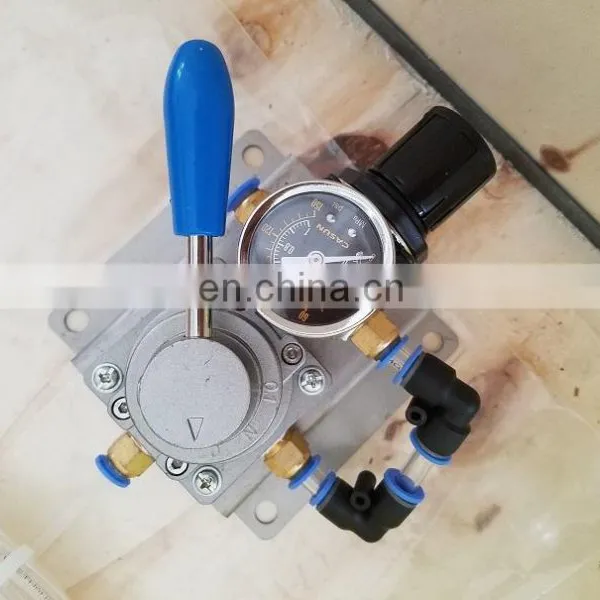

Control box:With the swift for up and down, small air compressor
Air pipe,Pressure gauge
Basic guy accessories

manual hand pump

Detailed Images
25m telecom antenna pole Telescopic communication light pneumatic wifi tower mast
Packing & Delivery

25m telecom antenna pole Telescopic communication light pneumatic wifi tower mast

package
carton packed
normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
plywood packed
normal package is plywood case for extended height more than 10m, weight more than
70kg mast
After-sale service
 Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description
